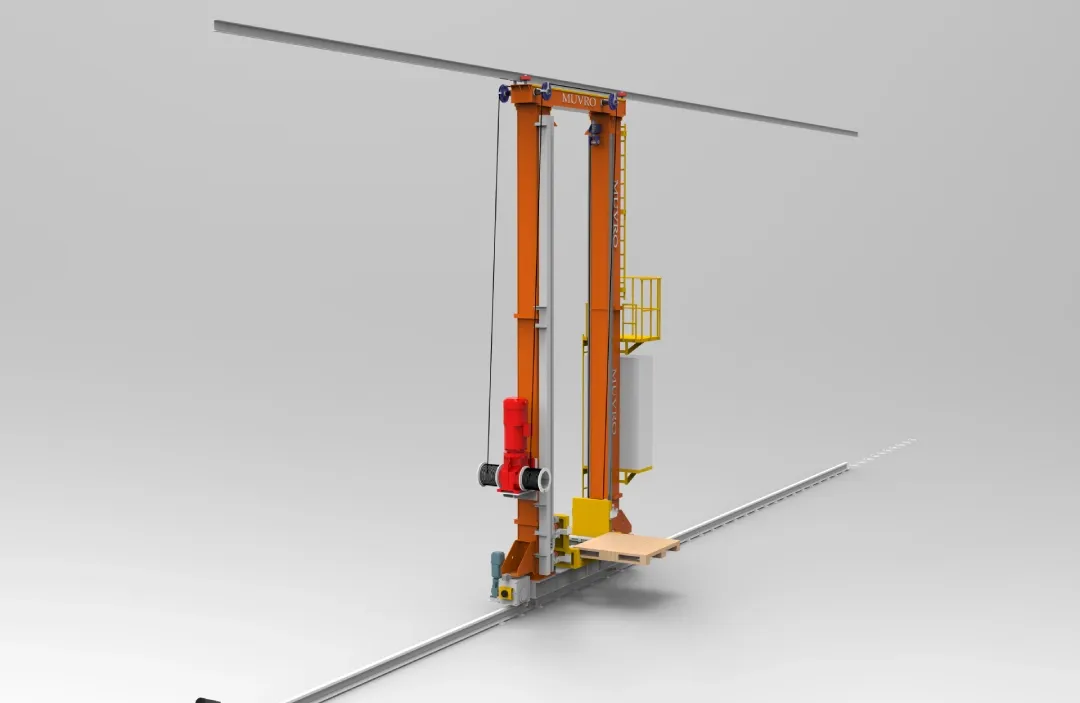

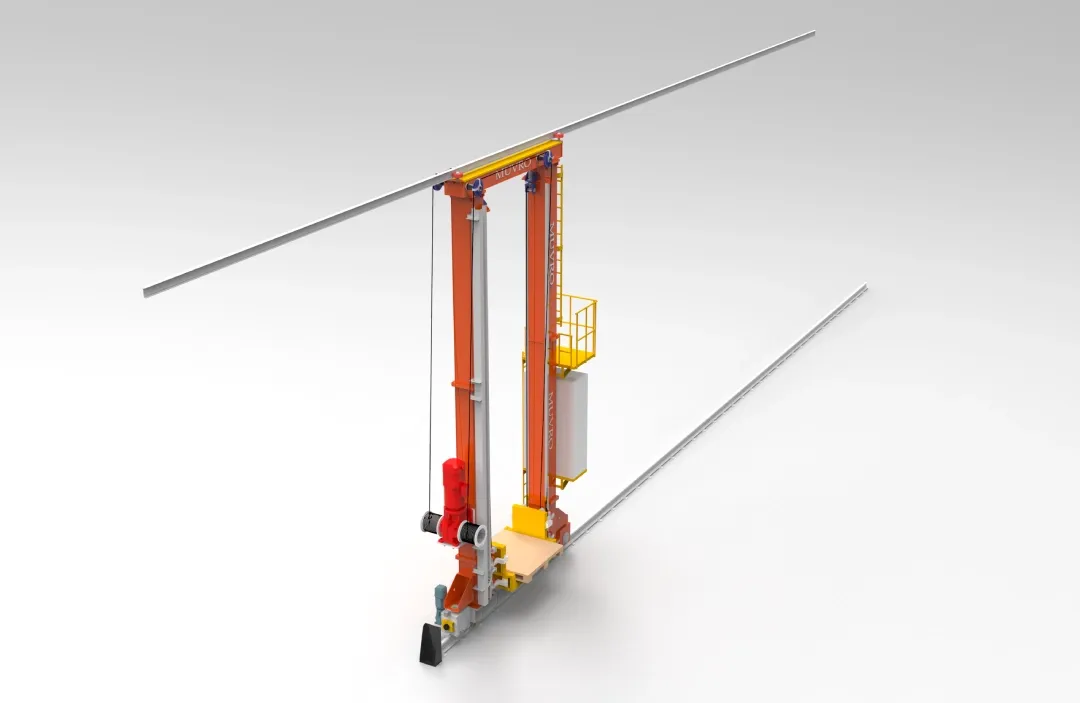

Muvro's Automated Storage and Retrieval System (AS/RS) stacker cranes are high-tech warehouse tools that make it easy to store and get back palletized goods. These cranes can work in tight spaces and reach great heights. They make the most of vertical storage space while using the least amount of floor space. Some of the most important features are the ability to carry heavy loads (up to 1.5 tons) and place and retrieve items accurately, which ma...
Designed to handle palletized loads up to 1.5 tons, suitable for heavy-duty industrial and warehouse applications.
Optimized for narrow-aisle and high-bay storage, enabling efficient use of vertical space while reducing warehouse footprint.
Equipped with laser guidance, dual encoders, and real-time sensors to ensure accurate X, Y, and Z-axis positioning during storage and retrieval
Seamlessly integrated with PLC, WMS, WCS, ERP, and SAP systems for real-time inventory tracking and automated operations.
Supports telescopic forks or shuttle systems with single, double, and triple-deep configurations to enhance storage density.
Manufactured using high-tensile, corrosion-resistant steel, suitable for demanding environments such as cold storage and high humidity areas.

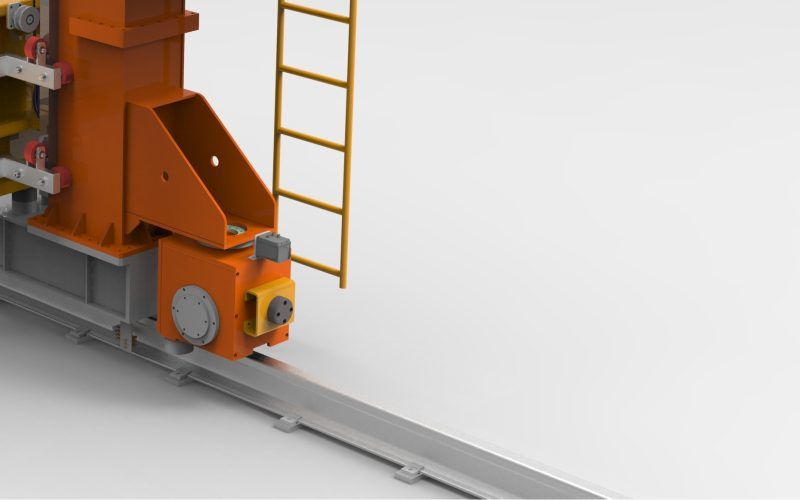

The stacker crane features a robust horizontal base frame that supports the mast and enables smooth aisle movement. It is made of steel that is strong and resistant to rust, so it will last a long time even in tough places like cold storage or areas with high humidity.

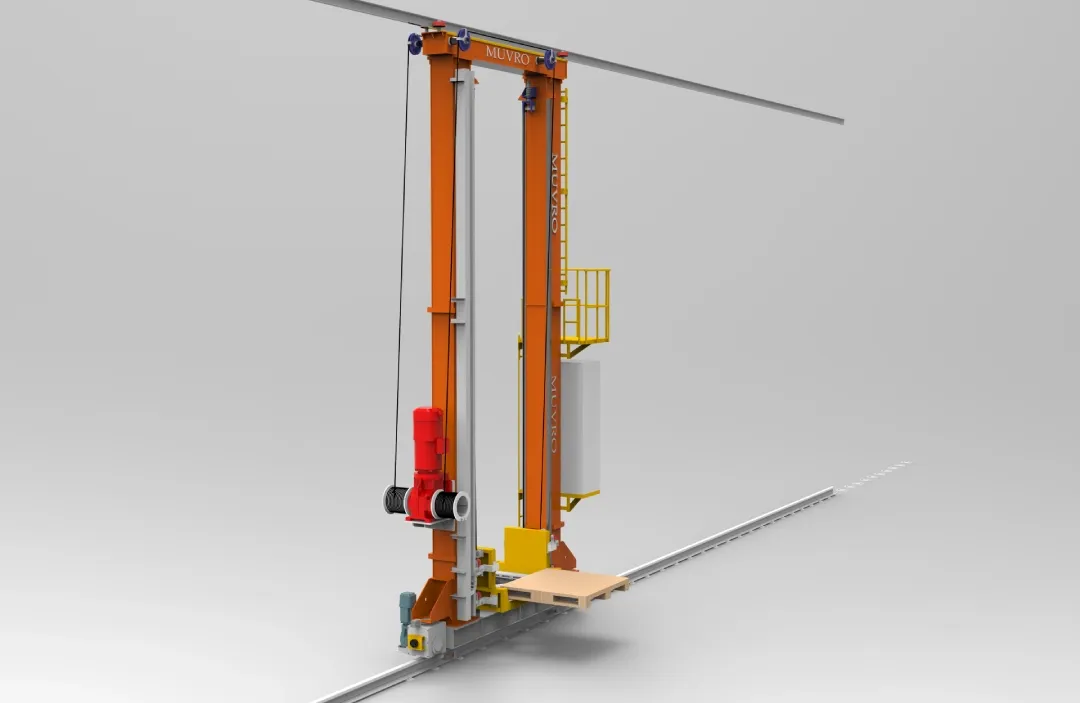

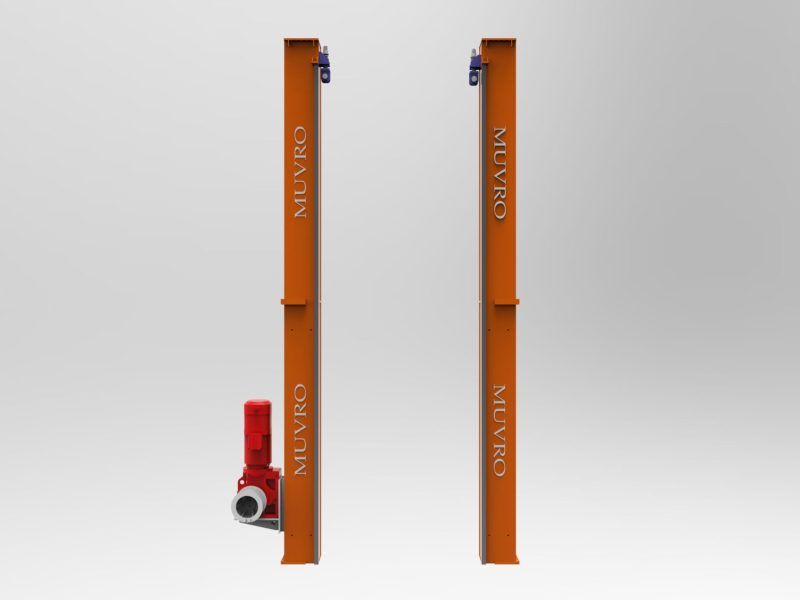

The mast is a vertical steel column assembly that is attached to the base structure. It is the most important part of the stacker crane's lifting system because...

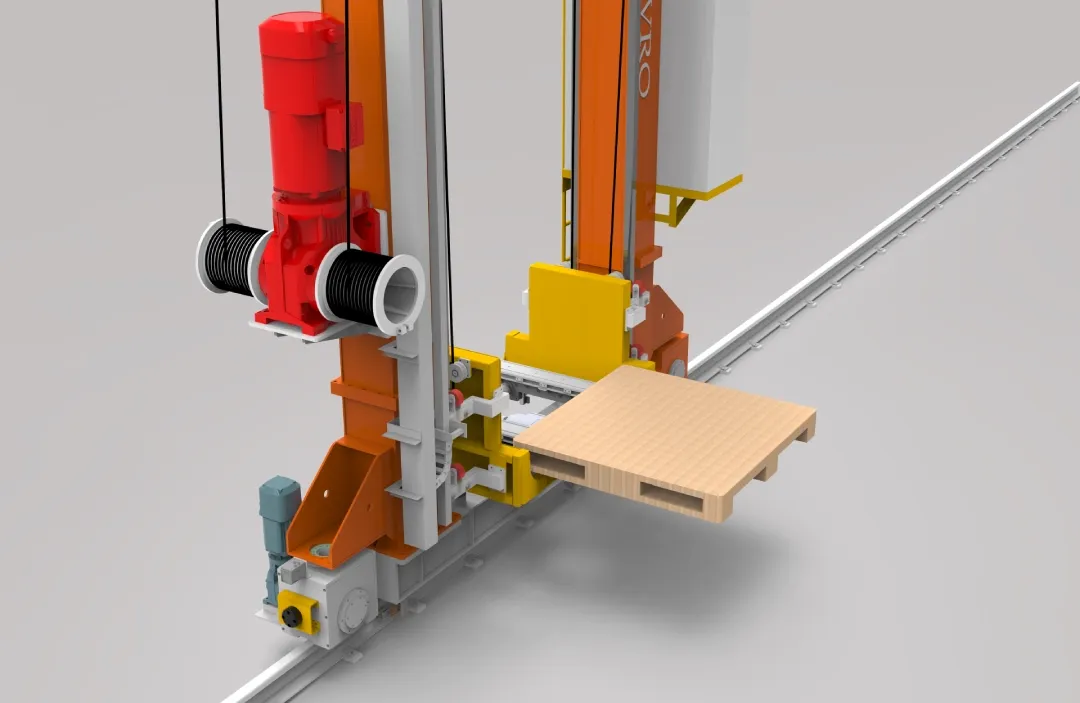

The ASRS stacker crane carriage (lift platform) makes it easy and accurate to move loads up and down in the system. It is made of lightweight, reinforced steel ...

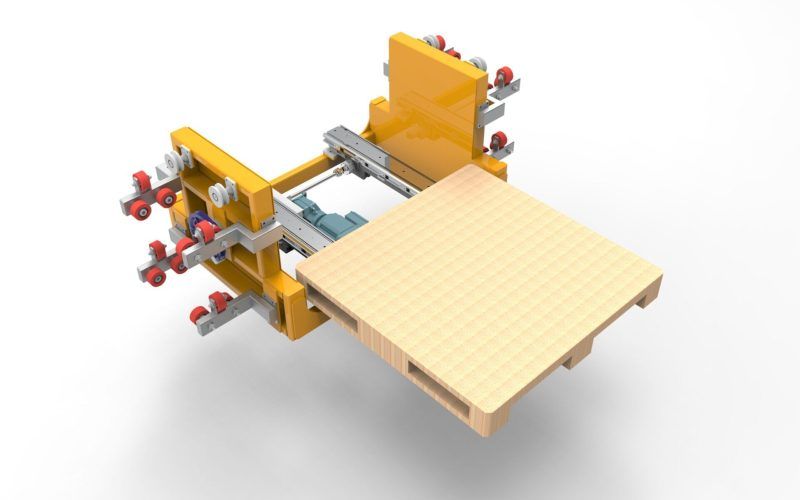

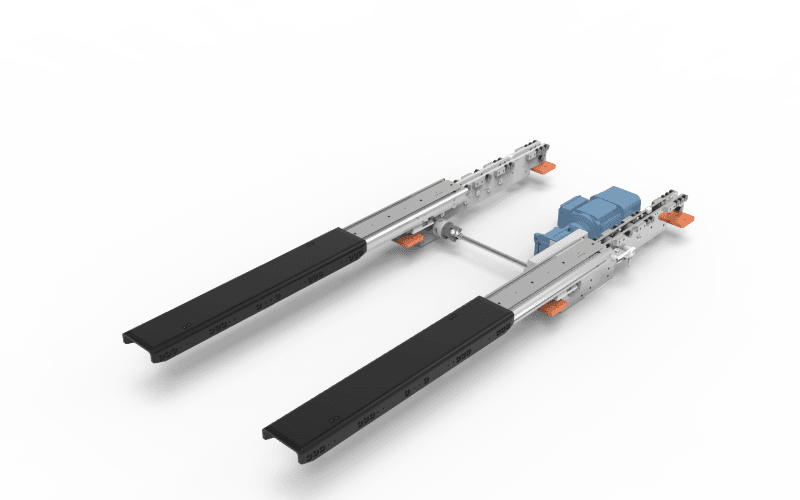

The load handling device is a key part of the ASRS stacker crane's mechanized system. It picks up, moves, and drops off pallets in the right place in the rackin...
The rail track system has a flat bottom and a slightly rounded (crowned) rail head. The sides are tapered to help the wheel flanges stay on the track. The rail ...

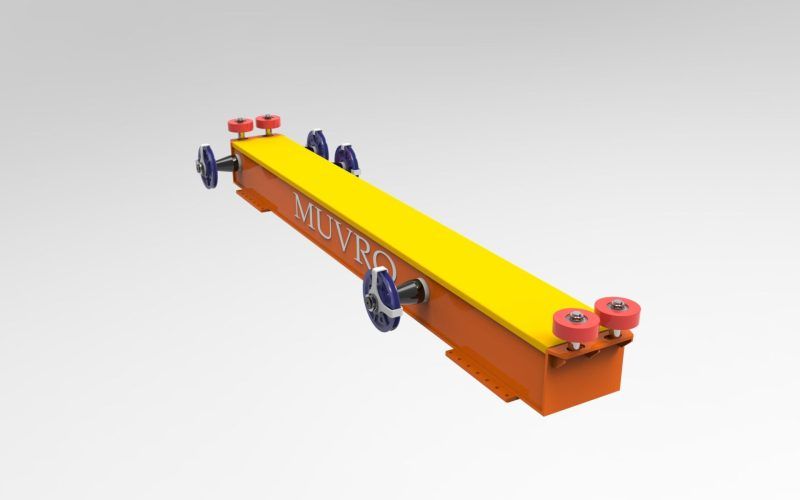

The top guide track is an important overhead stabilizing system that is put at the top of the storage aisle. It controls and limits the stacker crane's side-to-...

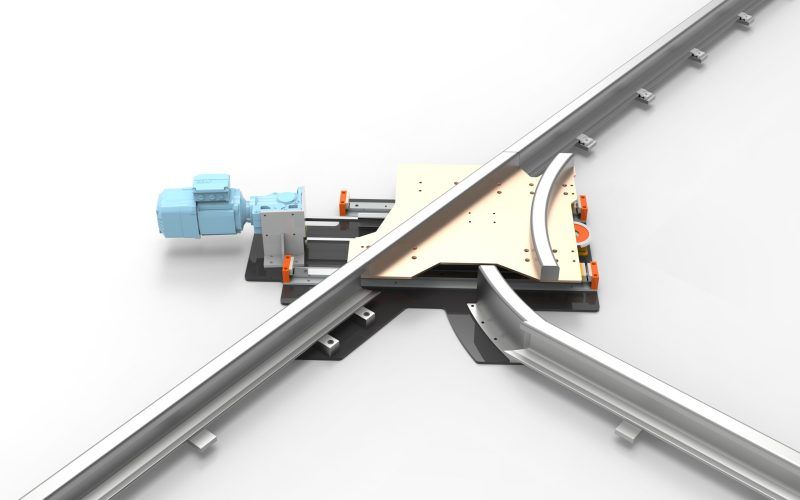

The track change switch is a motorized transfer mechanism that allows the stacker crane to move seamlessly from one aisle to another, enabling multi-aisle opera...

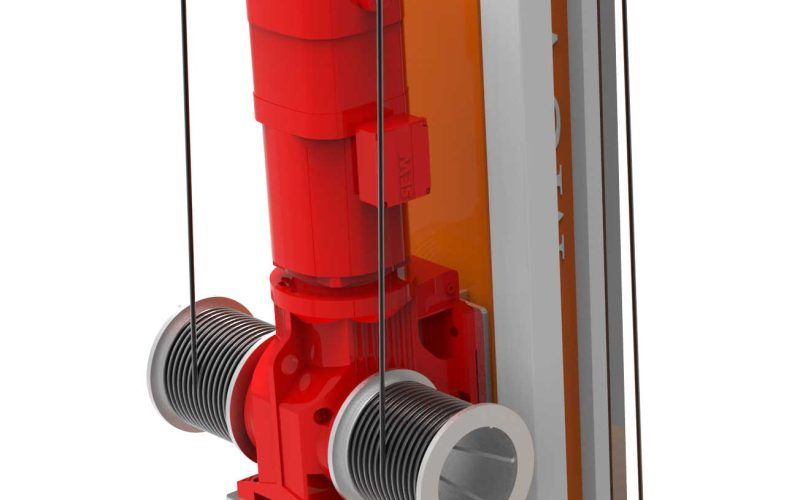

The hoist mechanism is an important part that moves the carriage and load up and down in the stacker crane. It makes sure that the movement is smooth, controlle...
Find out the most important technical details that make the ASRS Stacker Cranes the best choice for high-bay warehouse automation that needs precision, performance, and dependability.
Stacker Crane Series
Type
MS-M1 Series
Single-Mast
MS-M2 Series
Twin-Mast
12m, 17m, 22m, 27m, 35m, 40m
Max Height (Single Deep)
12m, 20m, 27m, 35m, 40m
Max Height (Double Deep)
1,500 kg (Single) / 2,000 kg (Twin)
Max Load Capacity
up to 40 Mtr
Max Vertical Storage Height
220 m/min (Single), 180 m/min (Twin)
Drive Speed
60 m/min (Loaded), 90 m/min (Unloaded)
Max. Lifting Speed
0.30 ~0.45 m/s²
Max. Drive Acceleration
0.30 ~0.50 m/s²
Max. Lifting Acceleration
Single, Double, Triple Deep
Telescopic Fork Options
1,100 × 1,300 × 2,400 mm
Max Load Dimensions
Optional (approx.15% energy saving)
Energy Recovery System
Roller Conveyor, Shuttle RGV
Receiving System
415V ±5%, 3 Phase, 50Hz ±1%
Power Supply
Bus Bar (4 Pole)
Power Transmission
-30°C to +40°C
Operating Temperature
BS 7430:2011 + A1:2016 / IS 3043:2018
Earthing Standard
Single/ Double/ Triple-Deep Forks , Pallet Shuttle
Extraction Systems
Automated, Semi-Automated, Manual
Operational Modes
Longitudinal, Vertical, Transversal
Movement Types
CE, ISO 9001, OSHA, UL
Certifications
They maximize space utilization while enabling quick and accurate pallet handling
They ensure reliable storage of raw materials and finished products, improving workflow and inventory control
The cranes enhance order fulfillment speed and accuracy, supporting high-volume operations
The ability to operate efficiently in temperature-controlled environments such as cold storage
Benefit from dynamic aisle allocation and high-speed handling capabilities
