A Trough Belt Conveyor is a widely used bulk material handling solution designed for efficient long-distance transportation of bulk materials. It is ideal for industries requiring continuous and reliable movement of loose materials such as coal, minerals, aggregates, grains, and more.
The belt is supported by a series of idlers that form a trough shape (typically 20°, 35°, or 45° angles) & Prevents material spillage and increases transport capacity.
Multi-ply rubber construction with fabric or steel reinforcements & Resistant to wear, abrasion, heat, and chemicals based on application needs.
Capable of carrying bulk materials over several kilometers & Suitable for applications with high throughput requirements.
Simple design with fewer moving parts reduces maintenance costs & Energy-efficient operation compared to alternative transport systems.
Available in stationary or mobile versions & Optional covers, dust suppression, and belt cleaning systems for environmental compliance.
Transportation of ores, limestone, coal, and aggregates
Handling raw materials like clinker, gypsum, and coal
Moving grains, seeds, and organic materials
Bulk cargo loading/unloading

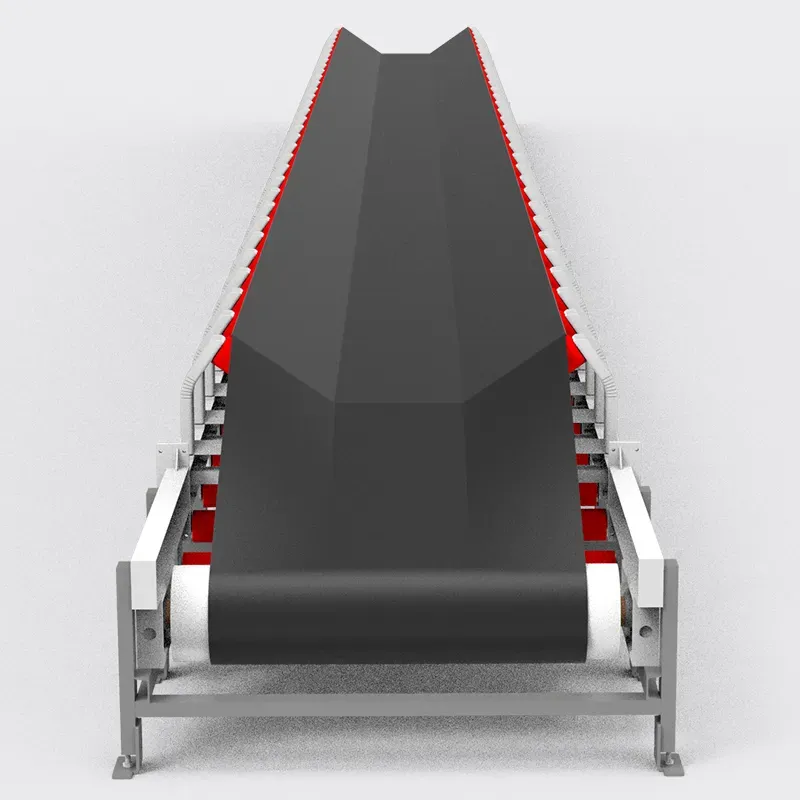

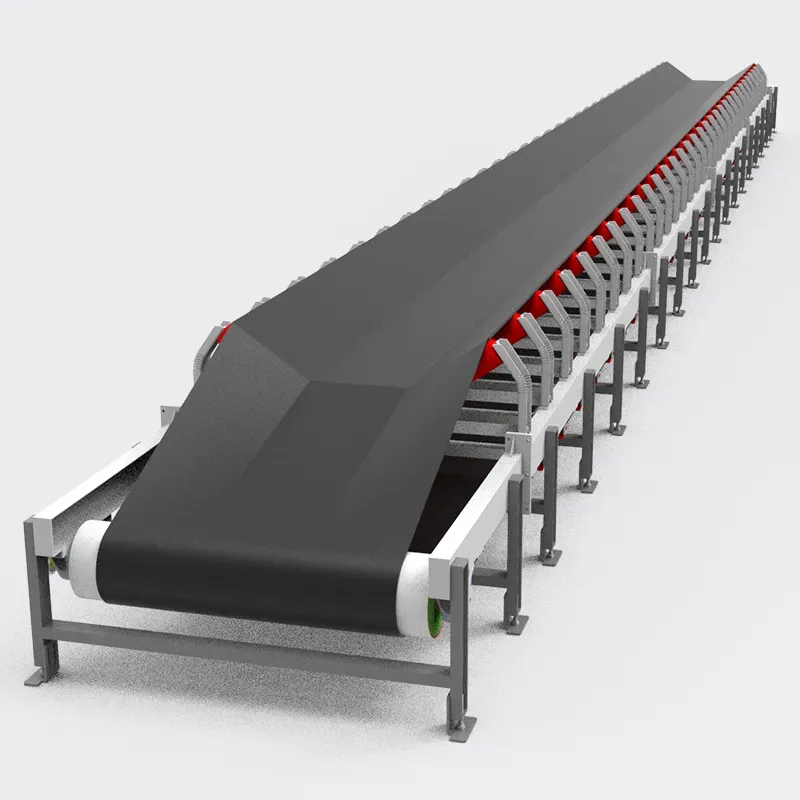

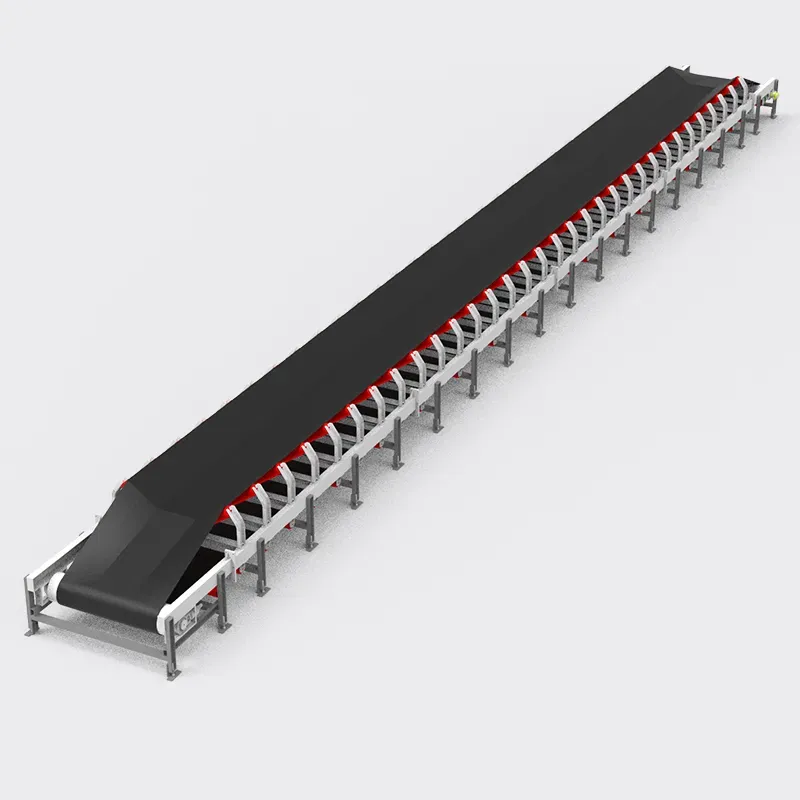

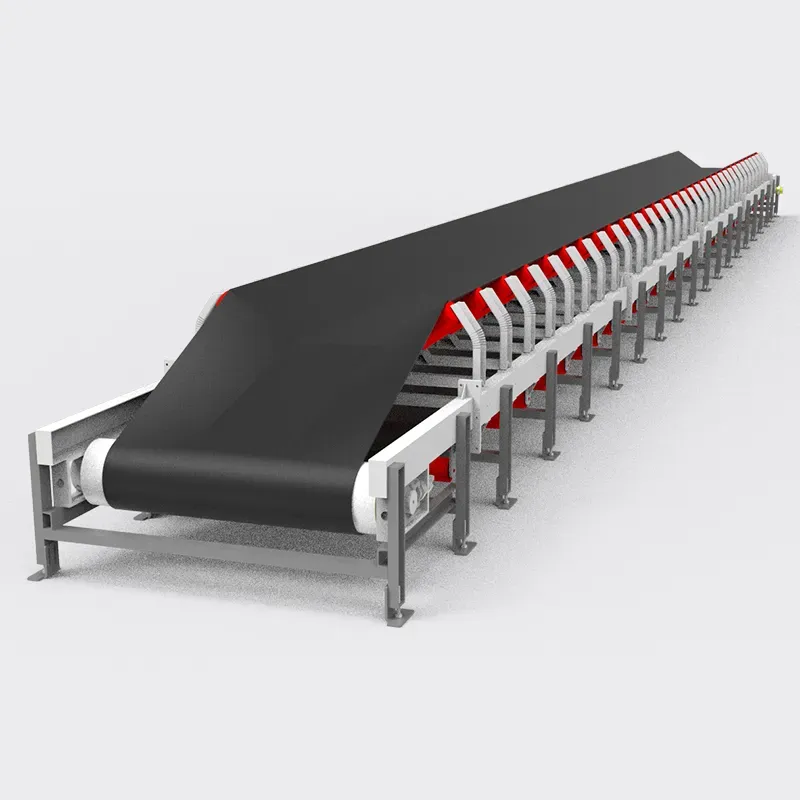

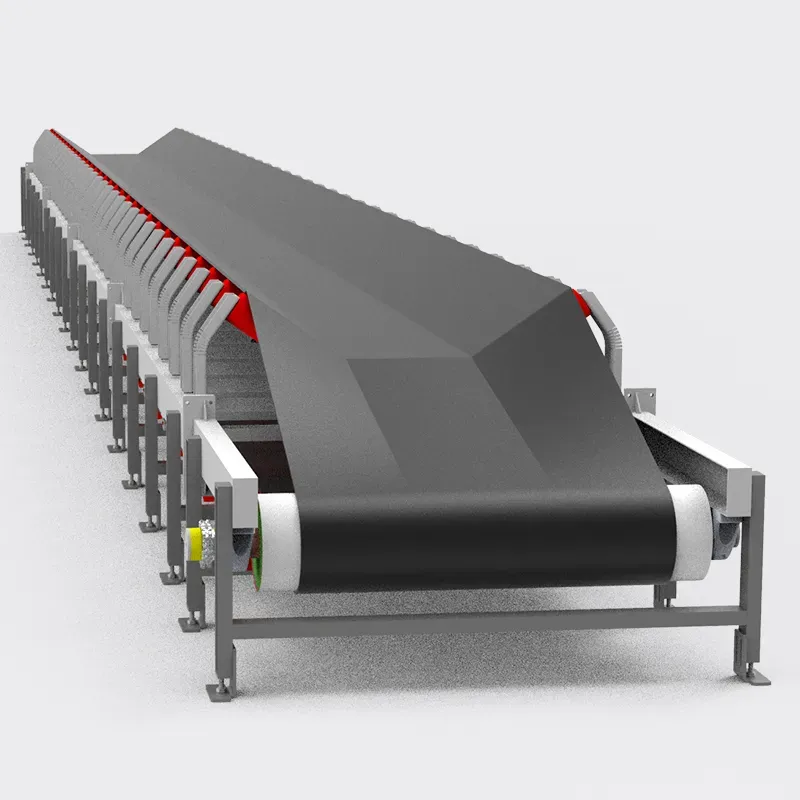

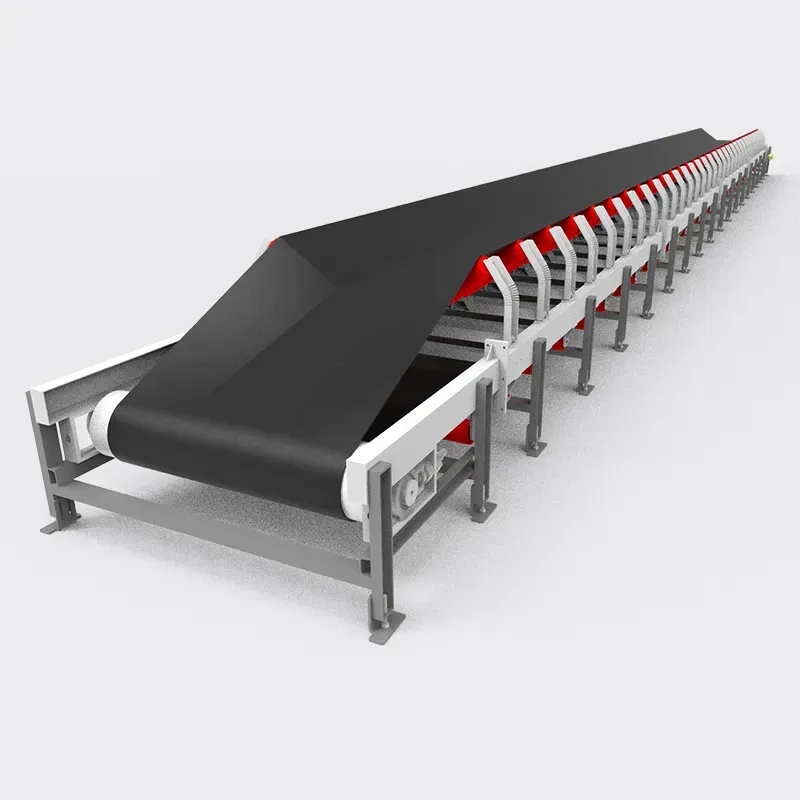

Heavy-duty trough belt conveyor system designed for 50 TPH bulk material handling, featuring M24 grade NN fabric belt, high tensile strength, optimized roller configuration, and reliable industrial drive performance.
1100 mm
Belt Width
130 Mtr
Max Belt Length
NN
Material of Construction (MOC) - Fabric
4
Number of Plies
400/4
Belt Type
3 mm
Top Cover Thickness
1.5 mm
Bottom Cover Thickness
9 mm
Total Thickness
Cut
Edges
M24
Rubber Grade
60 °C
Working Temperature (Max)
70 °C
Peak Temperature (Max)
11.88 Kg/m
Nominal Belt Weight
Black
Color
Vulcanized Hot/Cold & Mechanical
Jointing Suitability
IS:1891 (Part I)
Standard Applicable
400 kN/m
Warp Tensile Strength
1%
Elongation at Reference Load (Max)
1.5 - 2 %
Elongation at Break (Min)
<150 CUM
Abrasion Index
4.5 kN/m
Top Cover to Ply (Min)
4.5 kN/m
Bottom Cover to Ply (Min)
5.25 kN/m
Ply to Ply (Min)
24 Mpa
Tensile Strength (Min)
>450 %
Elongation at Break (Min)
Up to 50 TPH (as per DBR)
Material Conveyed
50 Tons/hr
Capacity Rated / Design
100 Mtr
C-C Distance
As per layout plan (Max up to 15 degrees)
Angle of Inclination
1 Mps
Conveyor Speed (at 50 RPM)
Diameter 300mm, MS Seamless Pipe
Drive Roller
1100 x 12 mm
Drive Roller Width x Shell Thickness
Diameter 300mm, MS Seamless Pipe
Take-Up Roller
100 mm
Snub Roller Diameter
100 mm
Return Roller Diameter
Inline Helical Geared Motor
Motor Type
Spherical Roller Bearing (FAG/SKF)
Type of Bearing
140 mm
Bearing Size
130 mm
Bearing Size (Take-Up Roller)
Muvro
Conveyor Idler Make
500 mm
Pitch of Idler Roller
20 Deg
Troughing Angle
