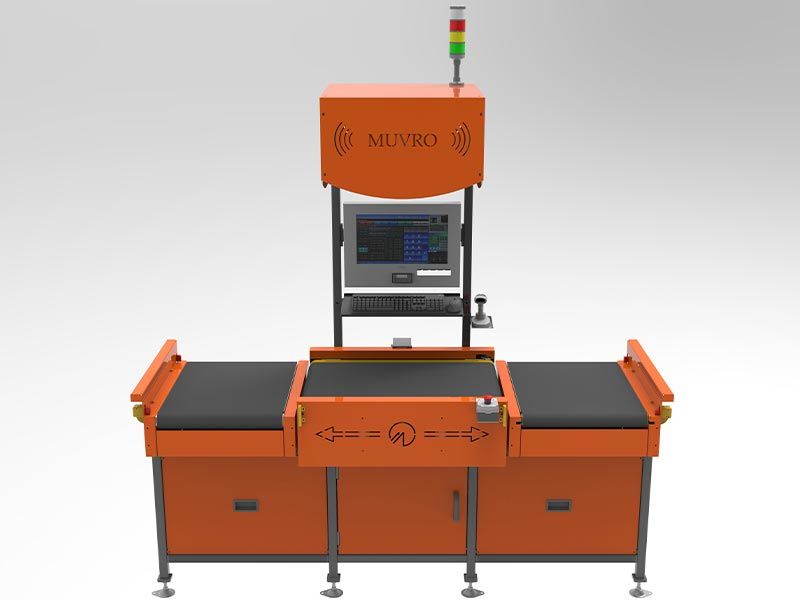

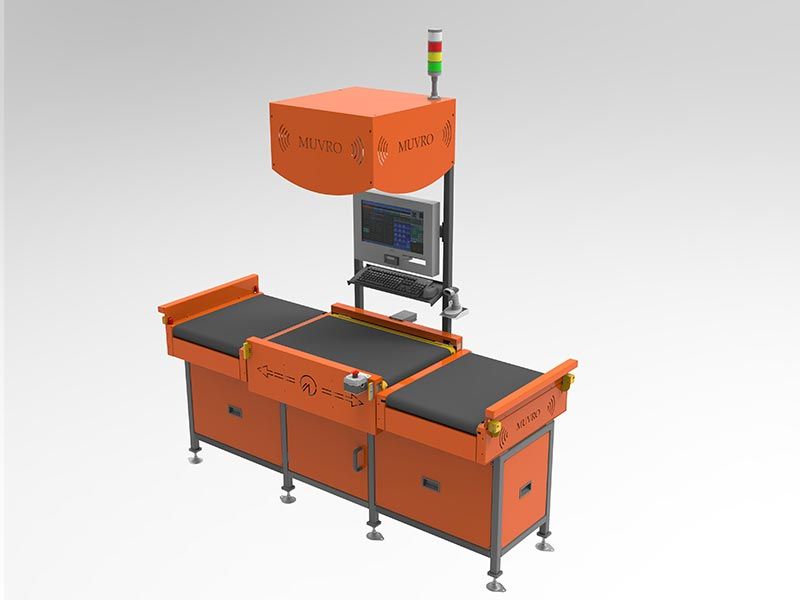

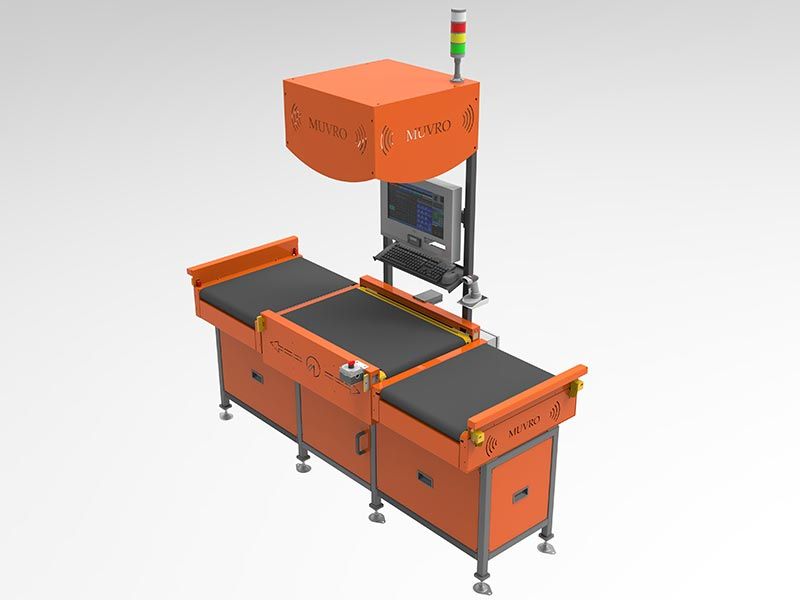

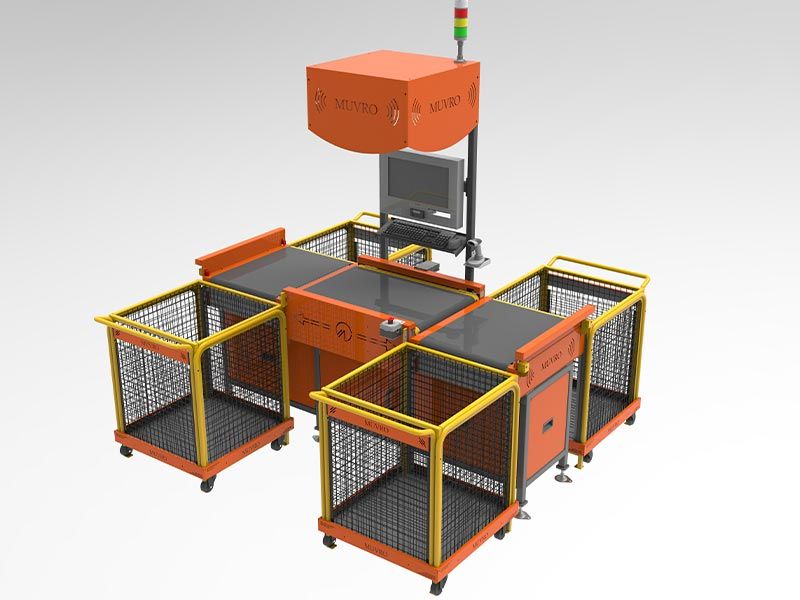

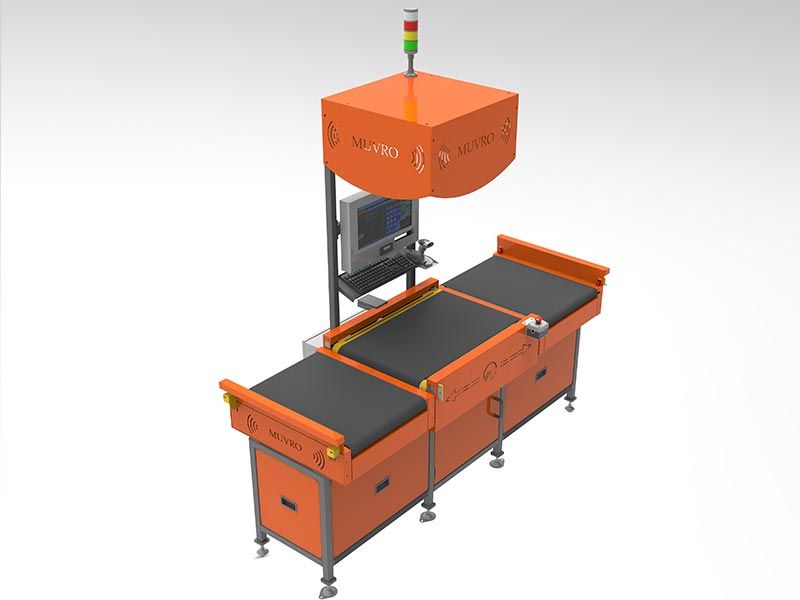

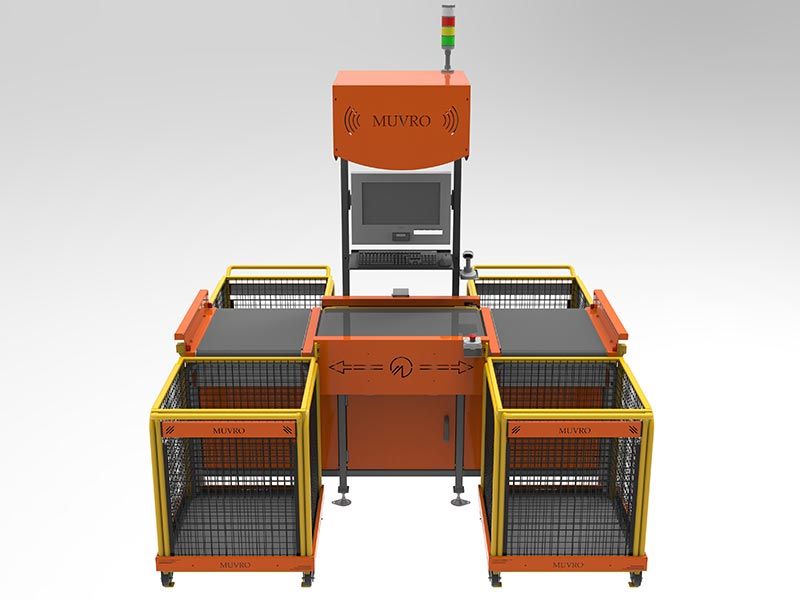

The Fast Sorter – Micro Sorter with Static DWS (Dimensioning, Weighing, and Scanning) is a compact, intelligent parcel handling system engineered for space-constrained operations such as logistics hubs, e-commerce fulfillment centers, and courier facilities. It automates the key functions of barcode scanning, dimensioning, and weighing in a single pass, with optional quick sorting integration for up to 8 outbound destinations.
Expandable architecture supports future load increase or output extensions
Real-time dimension capture without interrupting conveyor flow
Integrated diverters (pusher, swing-arm, pop-up wheel) automate parcel diversion
Unique ID via barcode, RFID, or OCR ensures precise data sync and tracking
Accurately identifies irregular or deformable packages like polybags and mailers
Adjusts dynamically to conveyor speed changes, maintaining consistent accuracy
The system features a single induct conveyor equipped with:
Operational Sequence
Streamlines parcel sorting and flow
Speeds up order processing
Reduces manual handling
Enables accurate billing via dimension/weight data
Enhances slotting and parcel tracking
Padded mailers for small items
Thin rectangular packages
Flexible plastic shipping envelopes
Standard cardboard shipping boxes
High-performance parcel processing solution supporting varied parcel sizes, precise measurements, and reliable bidirectional flow for modern automation needs.
500 × 400 × 200 mm
Maximum Parcel Size
100 × 100 × 10 mm
Minimum Parcel Size
10 kg
Maximum Payload
100 grams
Minimum Payload
600 × 250 × 500 mm
Panel Dimensions (L × W × H)
Up to 2,000 parcels/hour
Throughput
Up to 2.5 m/sec (Induct & Transfer conveyors)
Conveyor Speed
±10 grams
Weighing Accuracy
0°C to 50°C
Operating Temperature
230V AC, 1-Phase, 50 Hz (with Neutral & Earth)
Electrical Supply
Profinet / Ethernet / Modbus / EtherCAT
Communication Protocols
Bidirectional (Left ↔ Right)
Direction of Flow
Discover the precision-engineered components that power our industry-leading sorting solution. This visual breakdown showcases the modular design elements that deliver unmatched efficiency, eliability, and adaptability for your operations.
Captures real-time dimensions (L × W × H)
Reads 1D/2D barcode IDs
Provides high-precision weight measurements
Motorized rollers for conveyor movement
Smooth, stable surface for parcel transport
Detect induction, parcel presence, length triggers
Operator interface for data and system status
Visual indication for system status (Run, Idle, Error)
PLC/IPC-based logic with WCS communication
