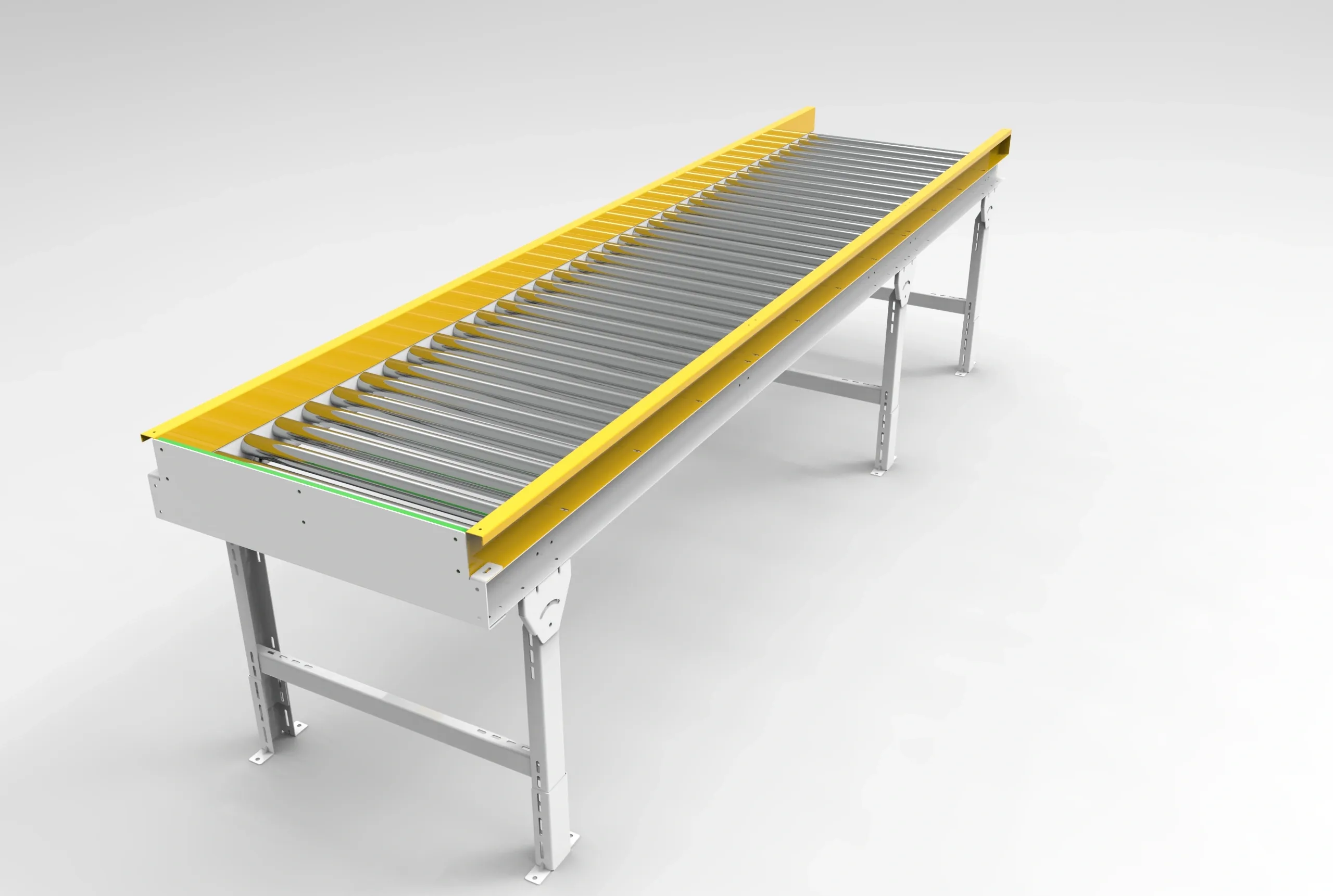

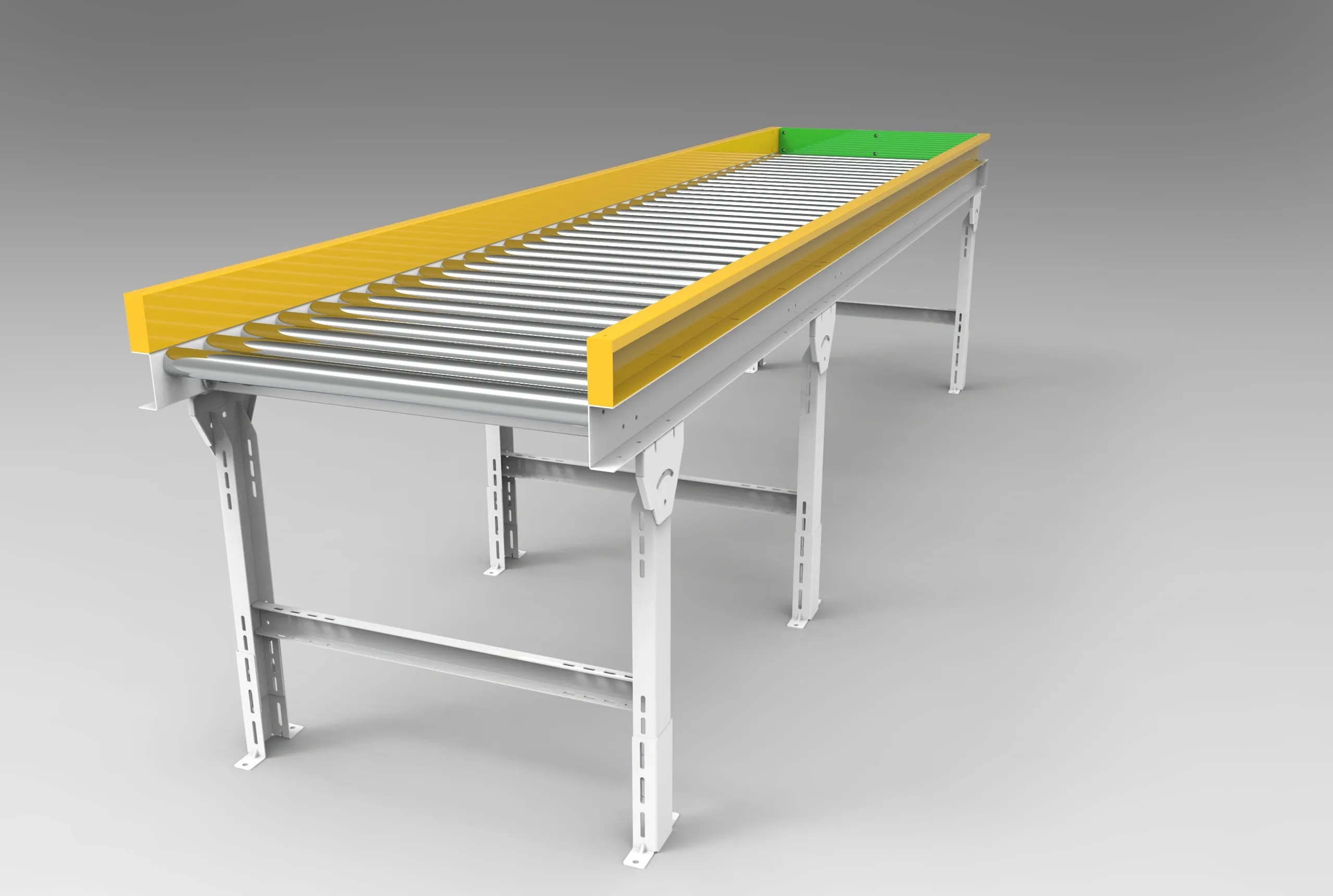

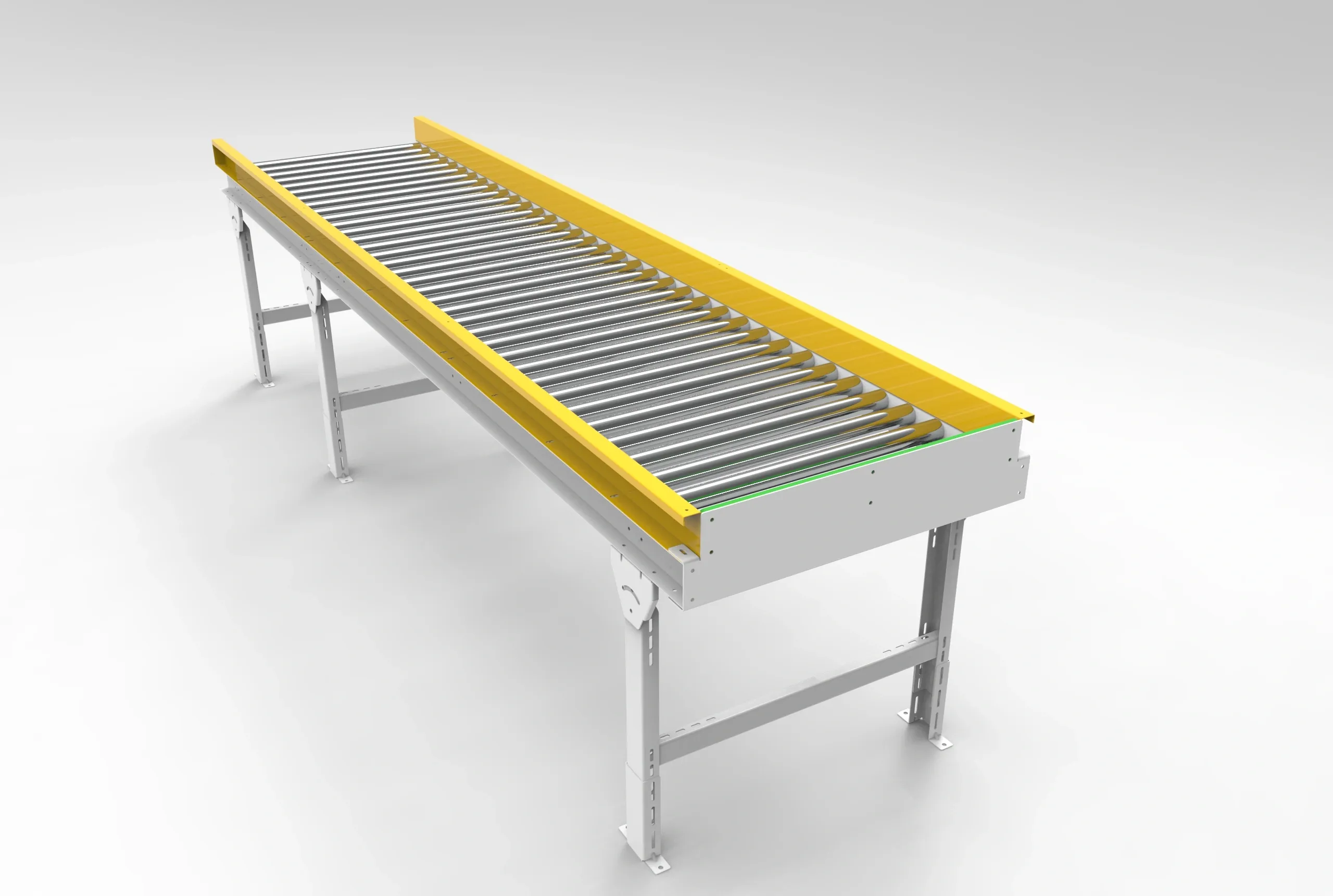

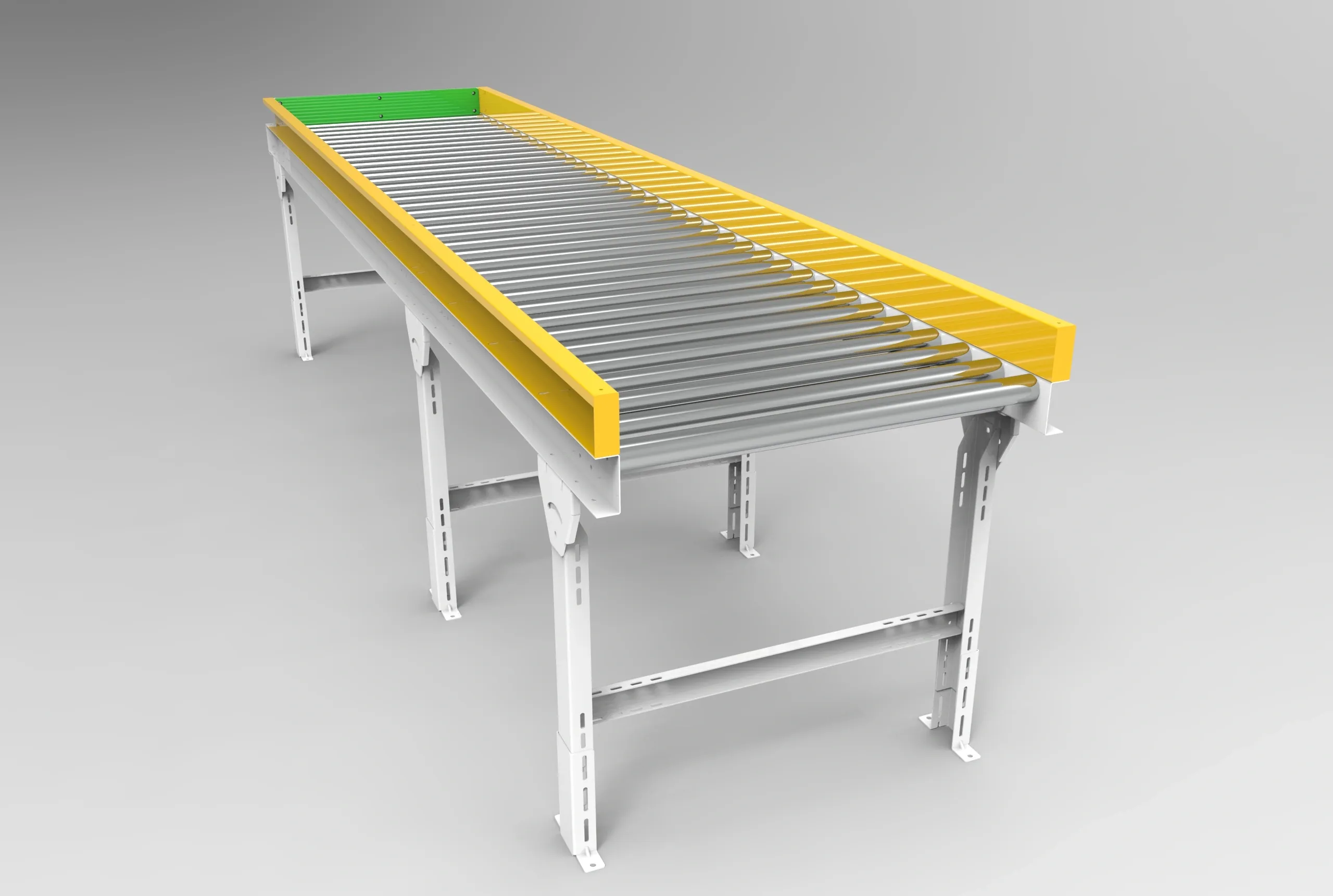

A Free Flow Roller Conveyor is a type of gravity roller conveyor designed for efficient, non-powered material handling across various industries. It operates by utilizing a slight incline, allowing products to move smoothly along a series of rollers solely through the force of gravity, eliminating the need for motors or external power sources. This makes it a cost-effective and environmentally friendly solution for conveying goods. The system typ...
Operates without electricity, relying solely on gravity to move products along the rollers, making it energy-efficient and cost-effective.
Products flow smoothly along the conveyor due to a slight incline, ensuring continuous movement without external force.
Rollers are made from high-quality materials such as galvanized steel, stainless steel, or plastic, providing strength and longevity.
Easily customizable and extendable to fit specific operational needs, with the flexibility to reconfigure layouts as required.
The incline angle can be adjusted based on product weight and flow requirements to optimize performance.
Simple design with fewer moving parts reduces the need for frequent maintenance, lowering operational costs.
Installed at a gentle downward slope to facilitate smooth flow.
Best suited for transporting lightweight to moderately heavy items.
A simple, budget-friendly solution for material transport.
Commonly used in warehouse picking, packing, and order fulfillment operations.
Used for sorting, picking, packing, and transporting goods
Ideal for moving parts and components between workstations
Used to transport packaged goods to labeling, sealing, or palletizing stations
For order sorting, packing, and dispatching processes, streamlining logistics operations.
Utilized for transporting vehicle parts and components along assembly lines
Suitable for moving packaged food products and beverages
Used for baggage handling systems and parcel sorting
Facilitates the movement of medicine packages in production and packaging lines.
Applied in sorting facilities to transport recyclable materials
Used at docks and loading bays for easy movement of goods
The Free Flow Gravity Roller Conveyor is a non-powered, gravity-driven system designed for efficient material handling across various industries. It provides a cost-effective solution for transporting flat-bottom goods like tyres, wheels, pallets, cartons, plastic bags, trays, and totes.
Free Flow Gravity Roller Conveyor
Type
Modular, allowing easy customization and installation
Design
1 to 20 meters
Length
300 mm to 1500 mm
Width
Adjustable from 300 mm to 2400 mm
Height
Maximum 3 meters per module
Module Length
Gravity Free Flow Roller
Roller Type
50 mm and 60 mm
Diameter
Steel, Zinc Plated, or PU Coated
Material
60 mm, 90 mm, and 100 mm
Mounting Pitch
Up to 50 kg per meter
Conveying Capacity
1° to 10° for smooth gravity-driven movement
Declination Angle
Steel Wheel, Round Tube, or U Channel
Sides Material
50 mm, 150 mm, 300 mm, and 600 mm
Sides Height Options
Below 70 dBA
Running Noise
-10°C to 40°C
Ambient Temperature Range
10% to 95% (non-condensing)
Humidity Tolerance
Tyres, wheels, pallets, carton boxes, plastic bags
Suitable for transporting
High-quality CRC steel sheet
Frame
CRC steel sheet with slotted holes
Legs
Shot blasted and powder coated
Painting
Standard Gray RAL-7016 or Orange Glossy HGS 2302
Color
CE, ISO 9001, OSHA, UL
Certifications
