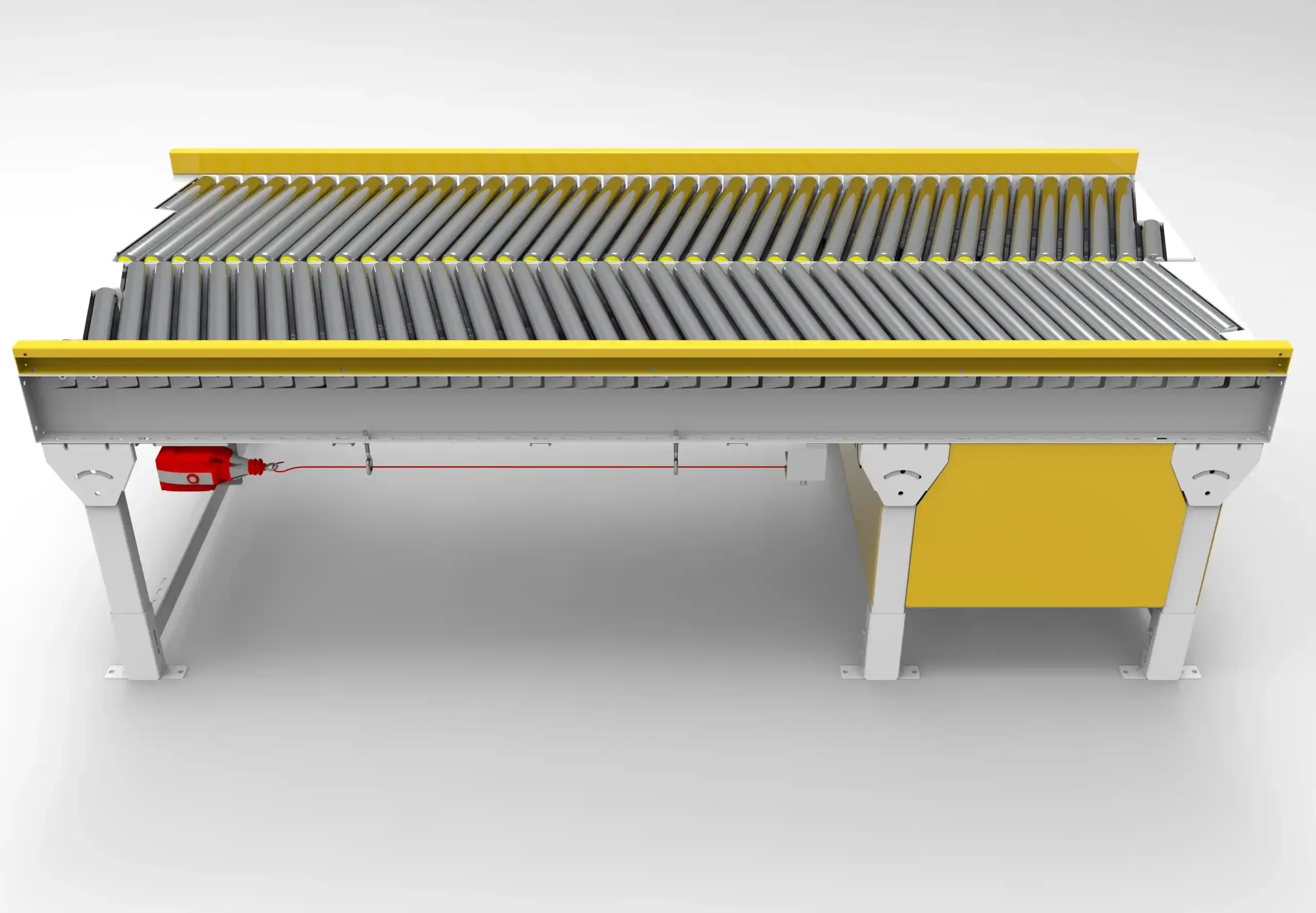

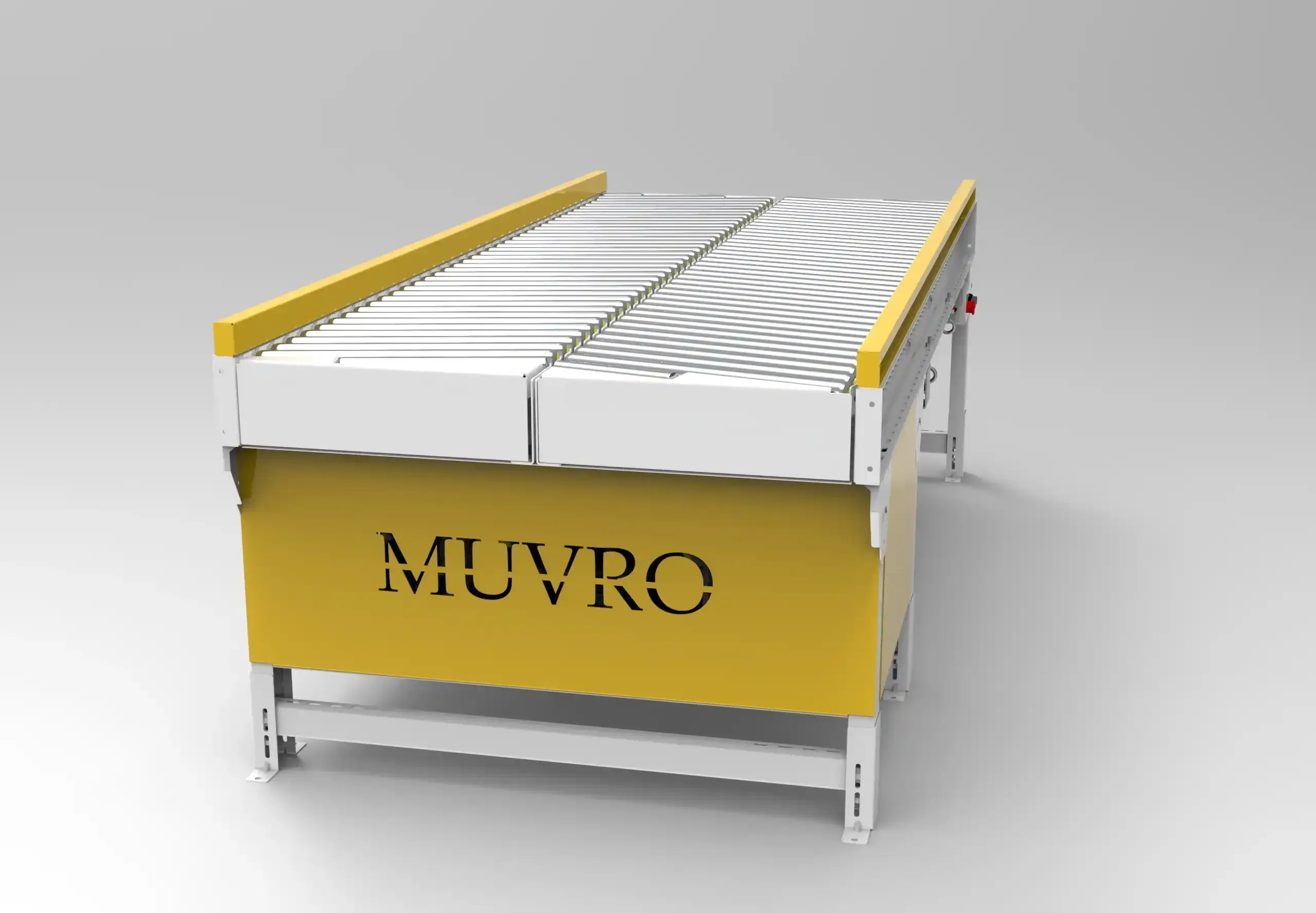

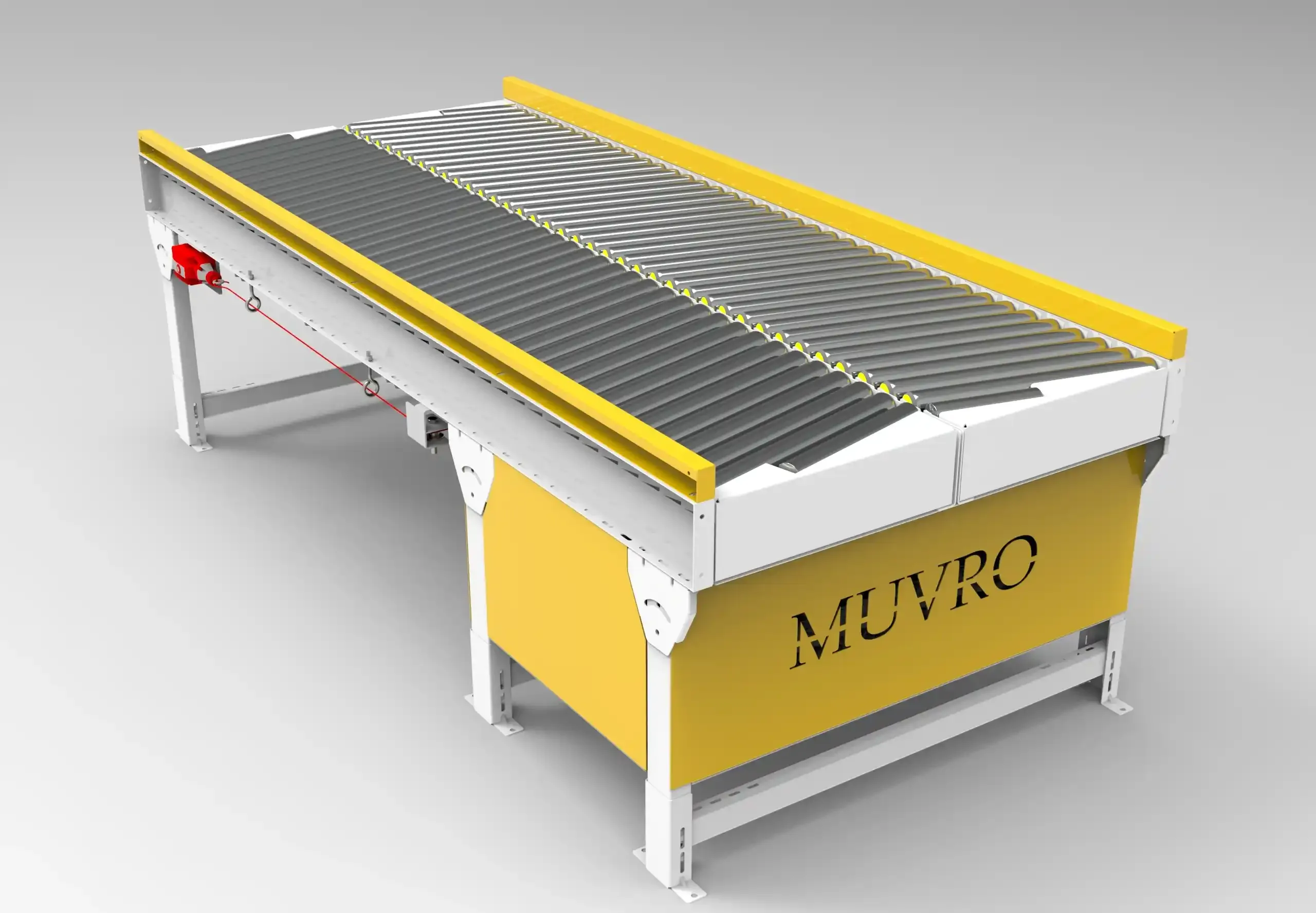

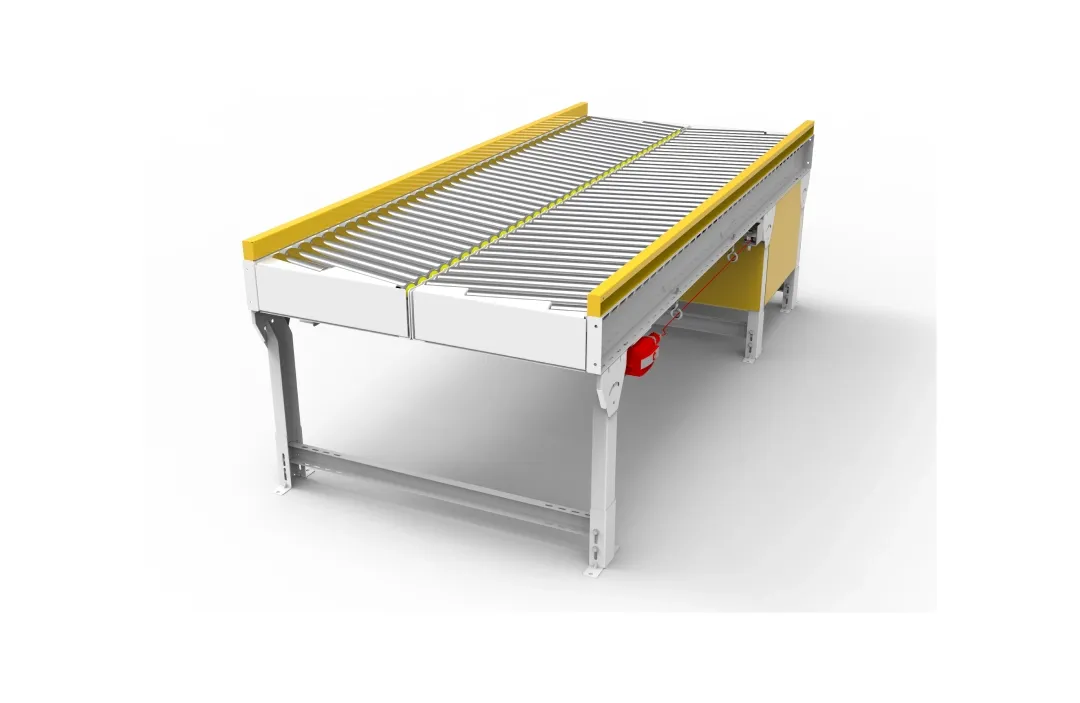

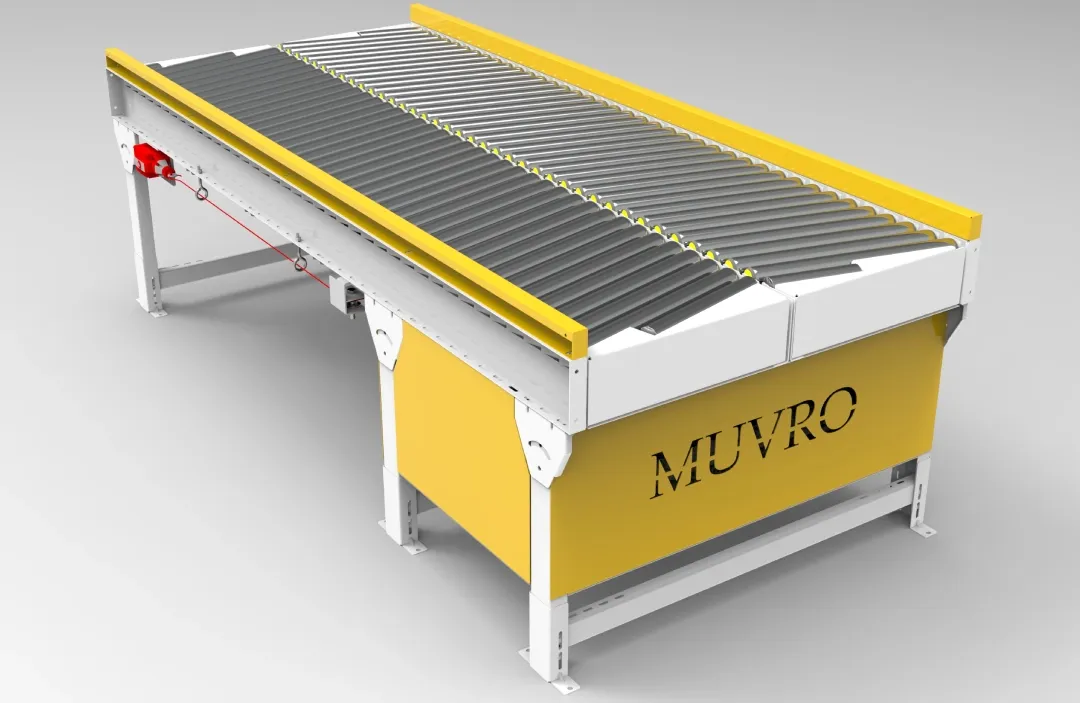

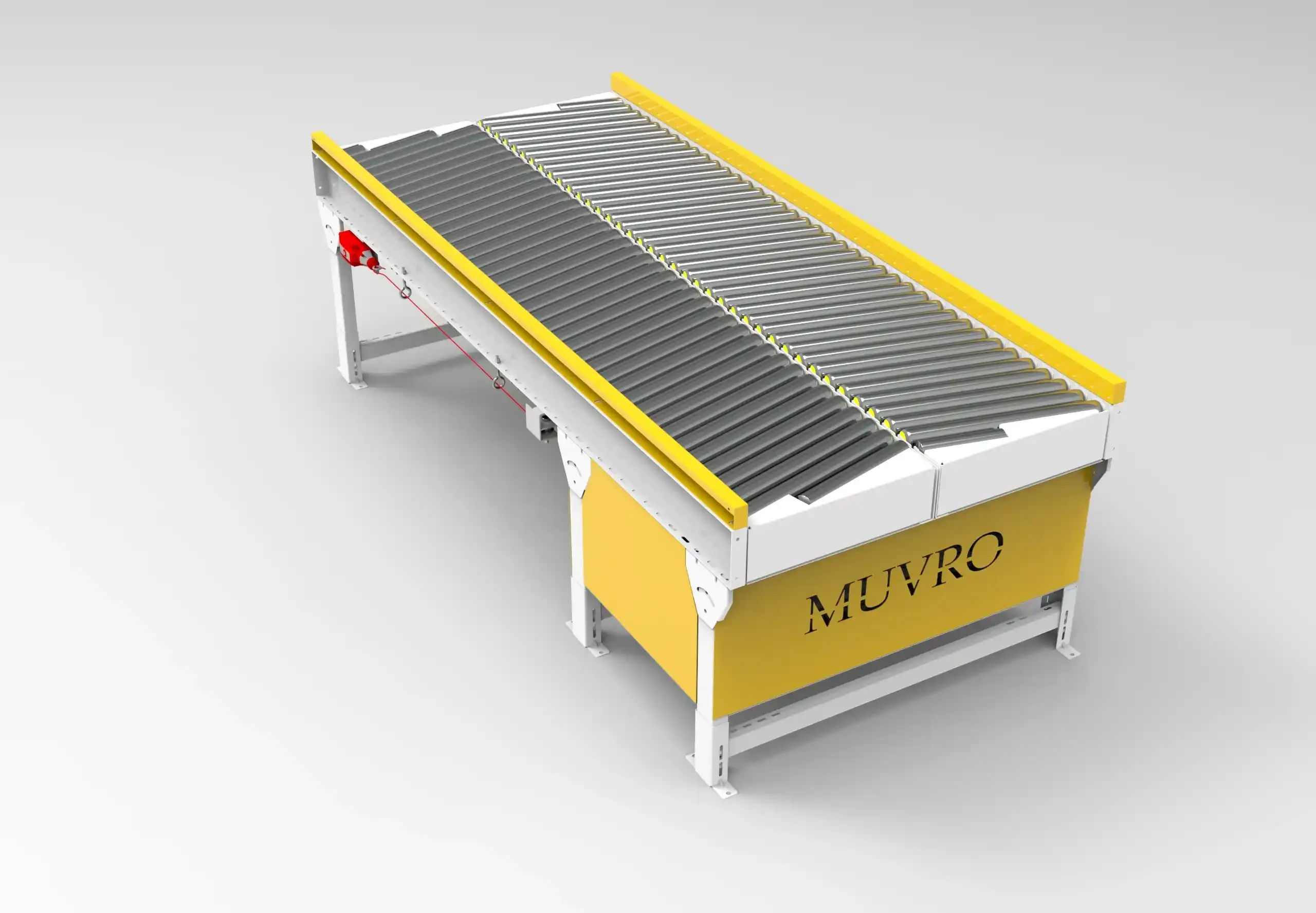

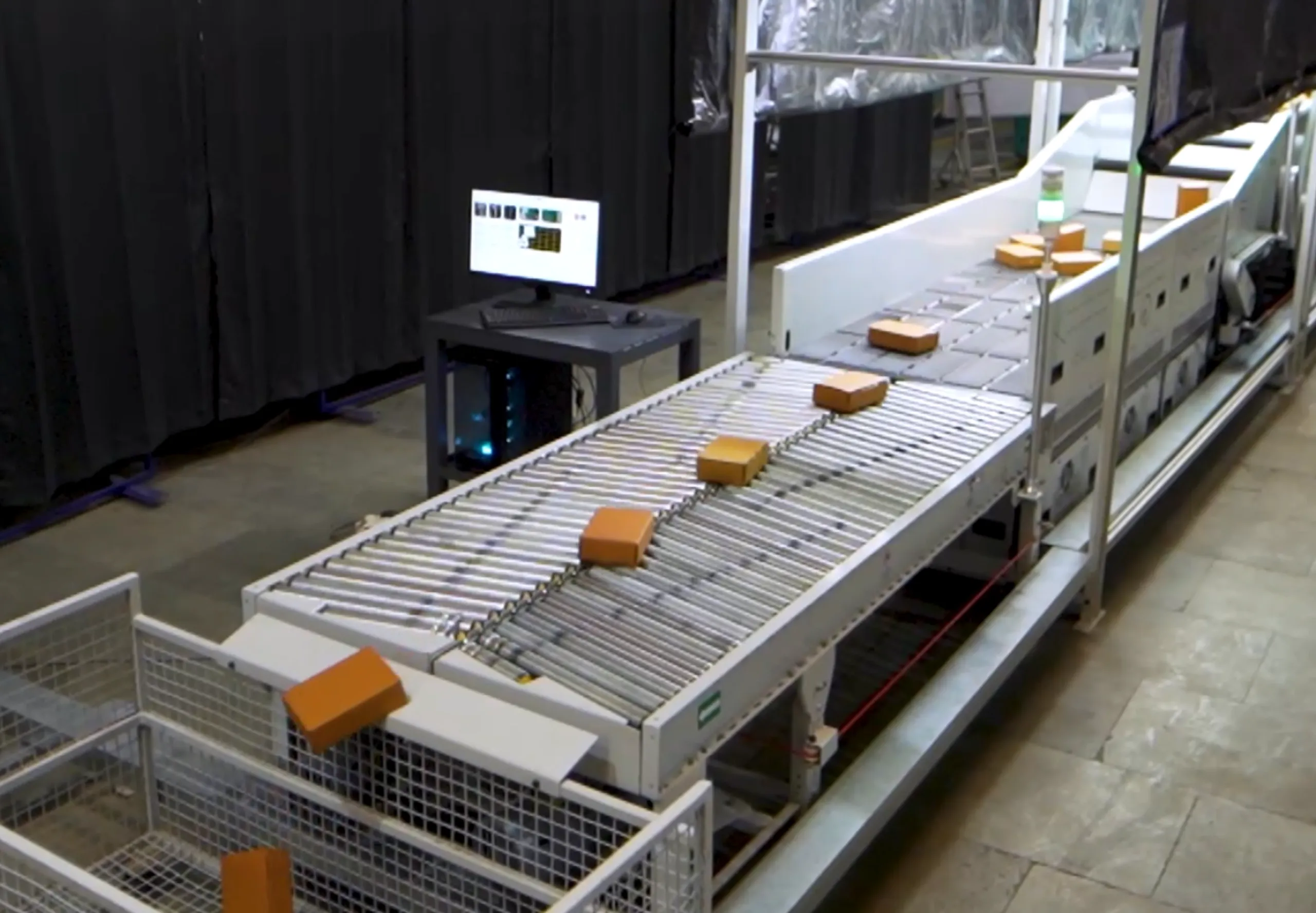

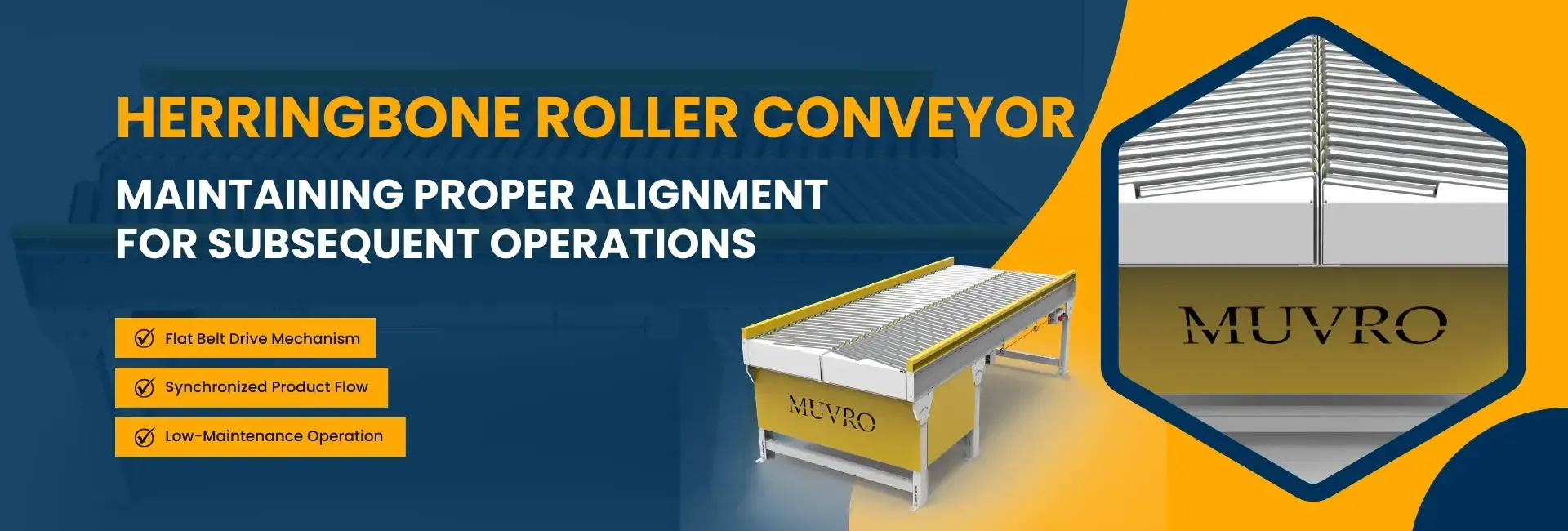

The Herringbone Roller Conveyor features parallel sets of skewed rollers arranged in a distinctive pattern—left-hand skewing on one side and right-hand skewing on the other. This unique configuration creates a self-cantering effect, gently guiding products toward the conveyor's centreline as they move along. This cantering function ensures seamless entry into downstream conveyor sections, maintaining proper alignment for subsequent operations whi...
Ensuring smooth material movement via pressure rollers.
Live roller functionality enhances synchronized product flow
Allows customization in width, length, and roller spacing
Managed through VFDs, handling up to 75 kg per meter
Its quiet, low-maintenance operation, versatile material handling for cartons and totes
Makes it ideal for various industrial applications.
The conveyor operates using a flat synthetic belt powered by an AC geared motor, with friction between the belt and rollers converting linear belt movement into smooth roller rotation. To accommodate the opposing roller angles, two separate belts are employed—one for each side. Both belts can be driven by a common motor through connected drive shafts or powered independently for precise control. Pressure rollers positioned below each belt apply controlled tension, ensuring optimal friction, reliable operation, and consistent product cantering along the conveyor’s length.
The conveyor frame is constructed from high-quality CRC steel sheets, laser-cut and CNC-bent into a C-profile with slotted flanges for precise roller installati...
Height-adjustable legs with smile brackets ensure perfect alignment, while steel rollers in 50 mm and 60 mm diameters feature sealed bearings for maintenance-fr...
The drive assembly includes an AC geared motor with VFD control for smooth speed adjustment
Photoelectric sensors, PLC-based controls, and protective guards enhance performance and safety.
Herringbone roller conveyor designed for automatic product centering and alignment using skewed rollers, featuring modular construction, VFD speed control, PLC automation compatibility, and reliable performance for efficient material handling systems.
Modular, Scalable Design
Conveyor Construction
50 mm, 60 mm x 1.5 mm
Roller Tube Dia & Thk
Steel, Zinc Plated
Roller Tube Material
Skewed Universal Conveyor Roller
Roller Type
Flat belt beneath rollers
Roller Drive Method
60 mm ~ 100 mm
Roller Mounting Pitch
2 Mtr ~ 5 Mtr
Conveyor Length
Max 2.4 Mtr
Conveyor Module Max Length
800 mm ~ 1500 mm
Conveyor Width
300 mm ~ 2400 mm
Conveyor Height
As Per Width of Conveyor
Skew Angle
5 Kg ~ 75 Kg / Mtr Max
Conveying Capacity
5 ~ 120 Mtr / Min
Conveyor Speed
AC Geared Motor
Conveyor Drive
< 70 dBA
Running Noise
-20°C to 50°C (Humidity 10–95% Non-Condensing)
Ambient Temperature Range
Steel Wheel, Round Tube, U Channel
Side Guide
50 mm, 150 mm
Side Guide Height
Safety Covers, Photo Sensors, Cable Tray, Bottom Cover
Conveyor Accessories
Cartons, Totes, Plastic Containers, Flat-Bottomed Packages
Conveying Products
Photoelectric & Proximity Sensors for Zone Control and Jam Prevention
Sensors
PLC-Based
Sequence Control
By VFD
Speed Control
Optional
Man-Machine Interface
Optional
SCADA / WCS
Profinet / Ethernet / Modbus
Communication
3 Phase (360 ~ 440 VAC)
Main Power Supply to Control Box
50 ~ 60 Hz
Rated Frequency
High-Quality CRC Steel Sheet
Conveyor Frame
CRC Steel Sheet
Conveyor Legs
Shot Blasted and Powder Coated
Painting
Gray RAL-7016, Orange Glossy HGS 2302
RAL Colour
CE, ISO 9001, OSHA, UL
Certifications
