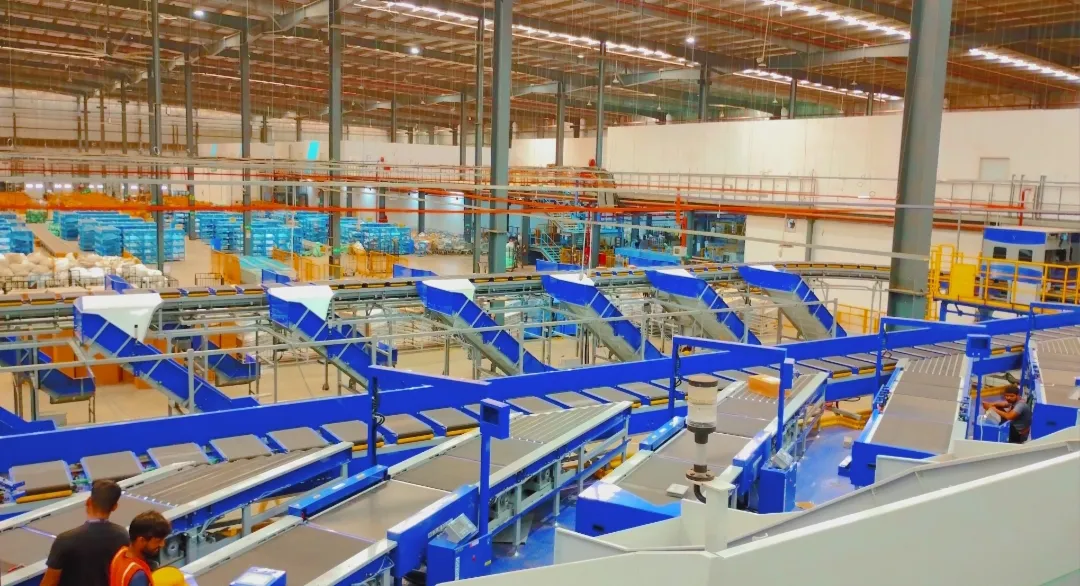

ZedSort the Loop is Muvro's premier high-speed Cross Belt Loop Sorter system that is engineered to streamline automated parcel sorting for e-commerce, retail and logistics operations. Built for speed, precision and scalability, it transforms traditional warehouse workflows into fast, reliable and future-ready intralogistics ecosystems.
ZedSort achieves an excellent throughput of 10,000 to 40,000 parcels per hour at over 2.7 meters per second. Ideal for 24/7 operations, it ensures rapid processing without sacrificing accuracy.

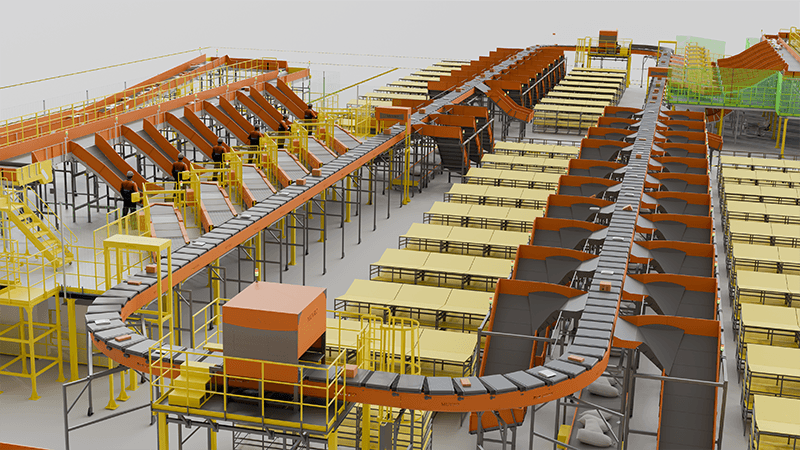

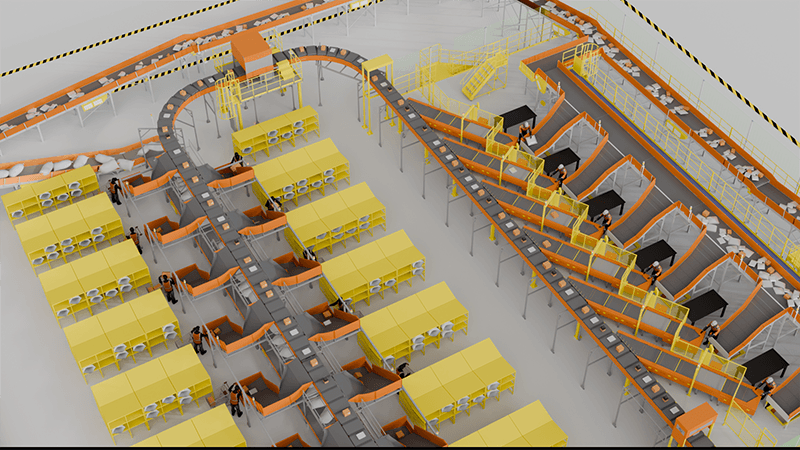

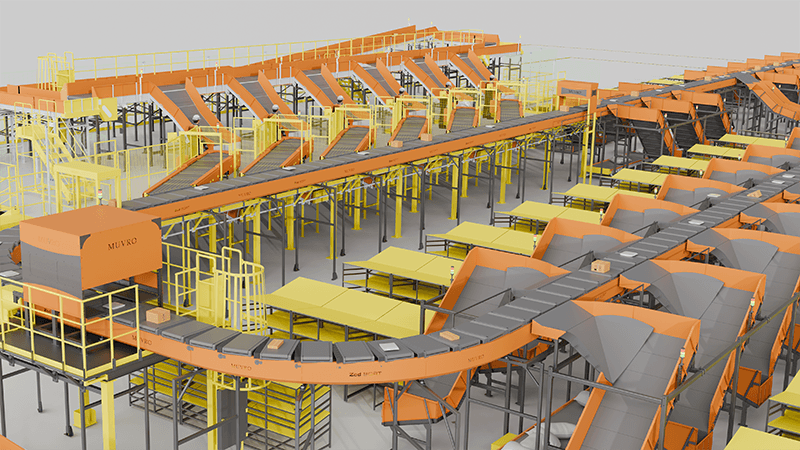

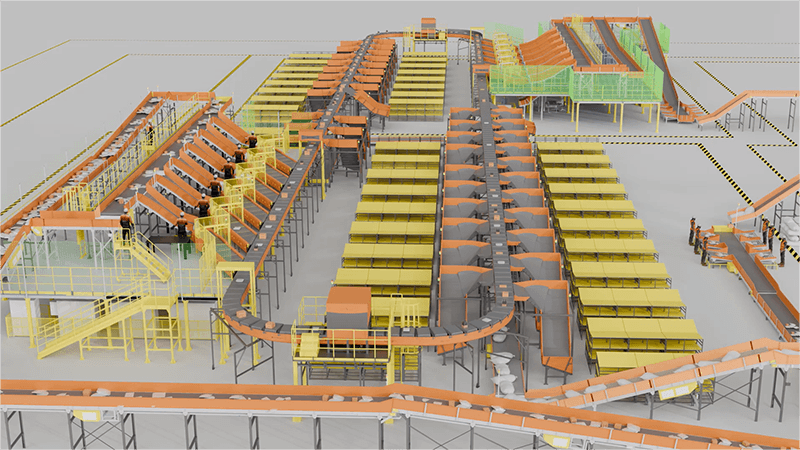

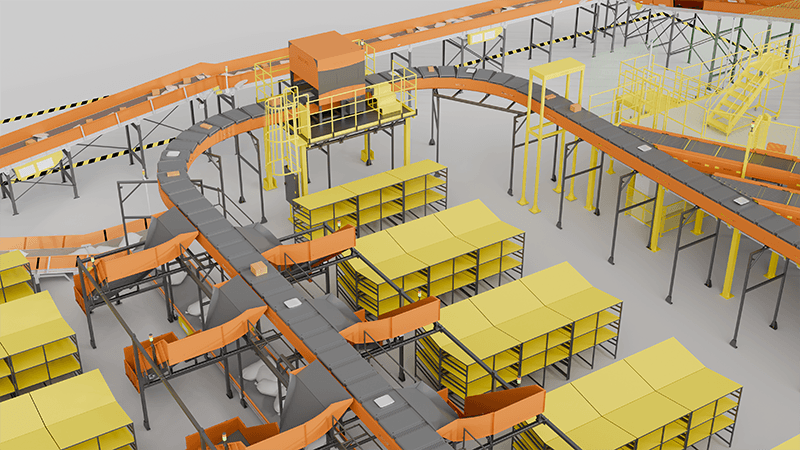

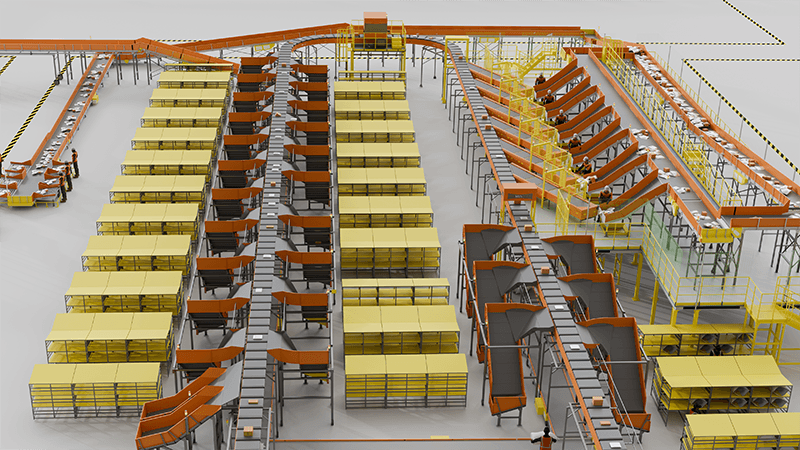

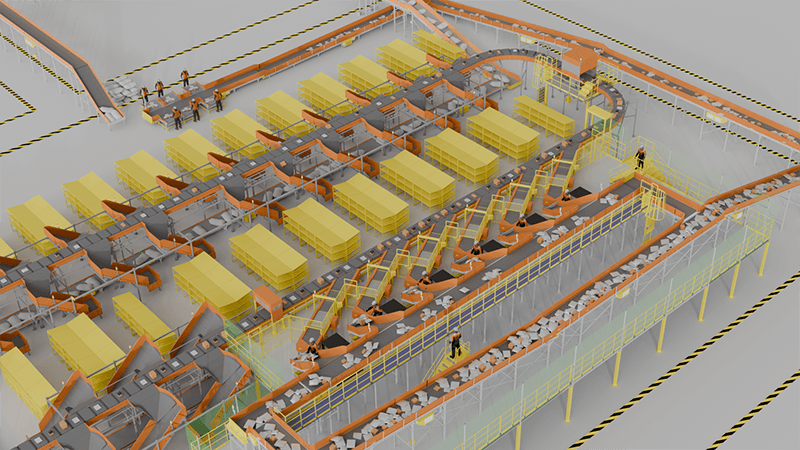

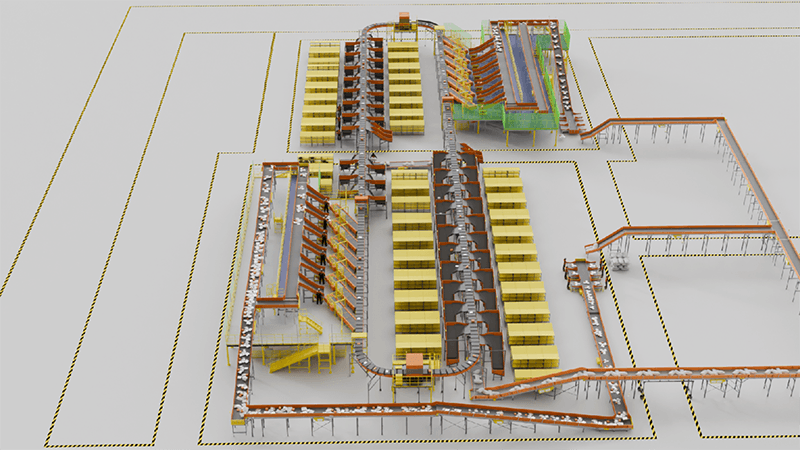

Customize your layout with a variety of supported configurations: Rectangular, Oval, Z-Type, U-Type, C-Type, or even double-tiered mezzanine installations. ZedSort adapts to your warehouse footprint.
From cartons and totes to polybags, zippy bags, pouches, and envelopes, ZedSort can handle parcels weighing up to 30 kg and measuring up to 600 x 400 x 500 mm.

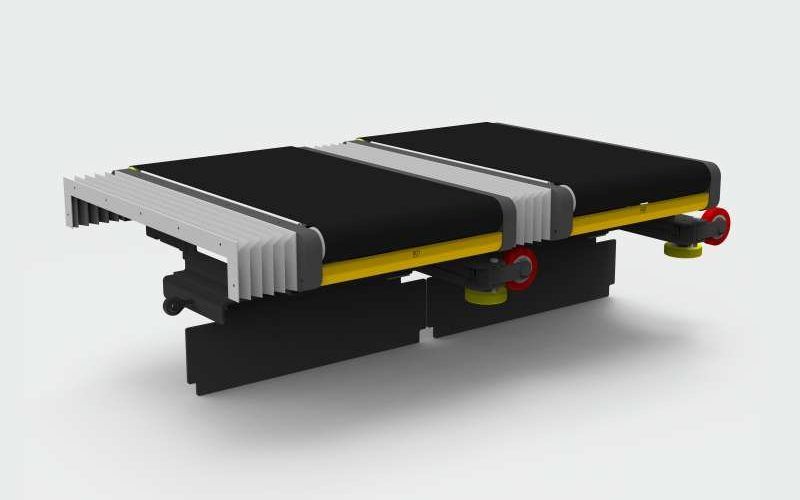

Each cart is equipped with a bi-directional motorized conveyor for left/right discharge. With advanced servo control, it ensures accurate and smooth parcel diversion at every point.
The infeed line features a three-stage setup: loading, buffer, and merge conveyors (30°-45°). Integrated sensors, barcode readers, and dimensioning systems ensure reliable parcel positioning and data capture.

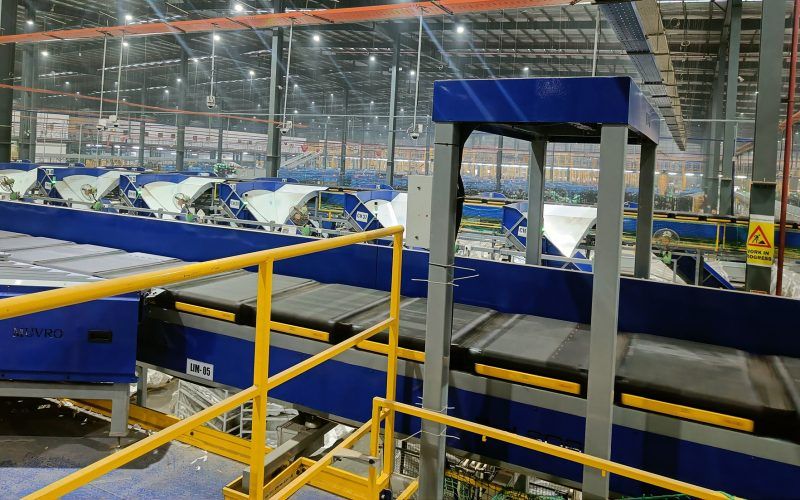

Using Cognex/Sick 1D & 2D scanners, ZedSort captures parcel IDs with optional OCR and weighing. Data is transmitted in real time to the Warehouse Control System (WCS) for intelligent sorting logic.
The High Speed Cross Belt Loop Sorter is a high speed high volume sorter with durable belts, precision drives, intelligent control systems and modular loop tracks that can be integrated seamlessly into automated material handling systems.
Heavy-duty steel construction with powder coated MS frame work to reduce friction and increase durability during continuous operations.
PU wheels supported on carts give smooth motion. For higher throughput, opt for Twin-Carrier or Two-Tier Deck configurations. Maintenance-free operation with se...

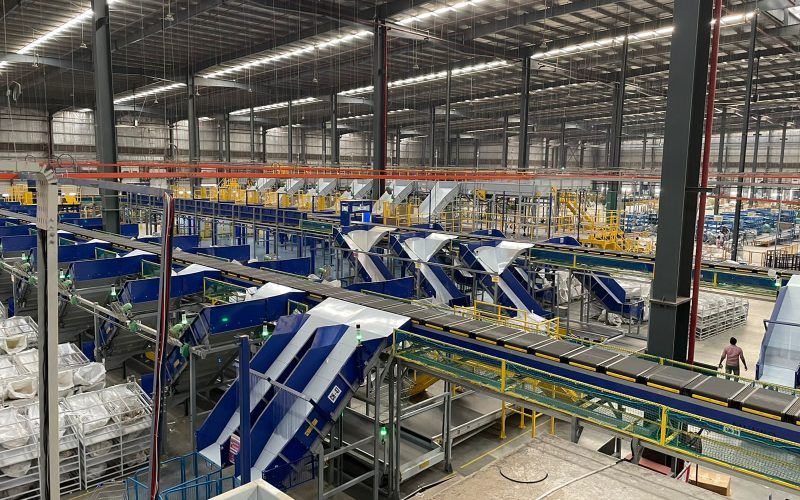

Choose from gravity, spiral, straight, bagging or telescopic chutes. Each has sensors and tower lights to verify successful sorting and provide system status.
Ensures all carts are checked after they are released. Sorting errors immediately trigger routing correction or alert, keeping error rates virtually zero
Future ready design for vertical deployment for dynamic operations and plug-and-play expandability, minimal ground footprint.
2.7+ m/s
Sorter Speed
Up to 40,000 PPH
Capacity
30° ~ 45°
Induct Angle
100 x 100 mm to 600 x 400 x 500 mm
Parcel Size
100 g to 30 kg
Weight Capacity
Smart chutes, Gravity, roller, bagging chutes, 2 Tier.
Chute Type
380~460 Vac, 3 Phase, 50/ 60 Hz
Power Supply
+5°C to 40°C, RH 10-95% (non-condensing)
Operating Temp
Gray RAL-7016 + Orange Glossy HGS 2302
Color Code
