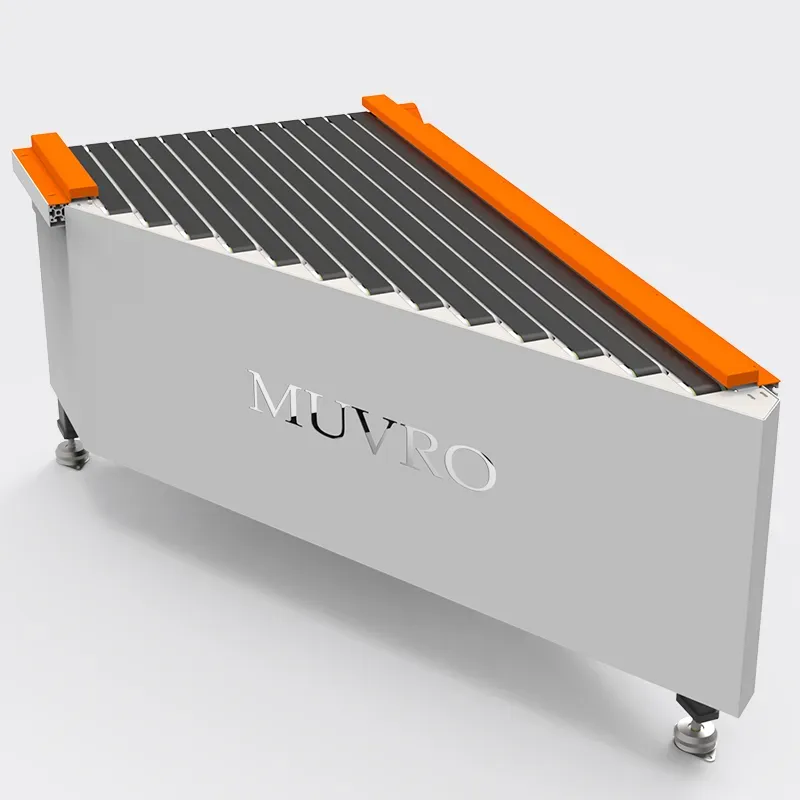

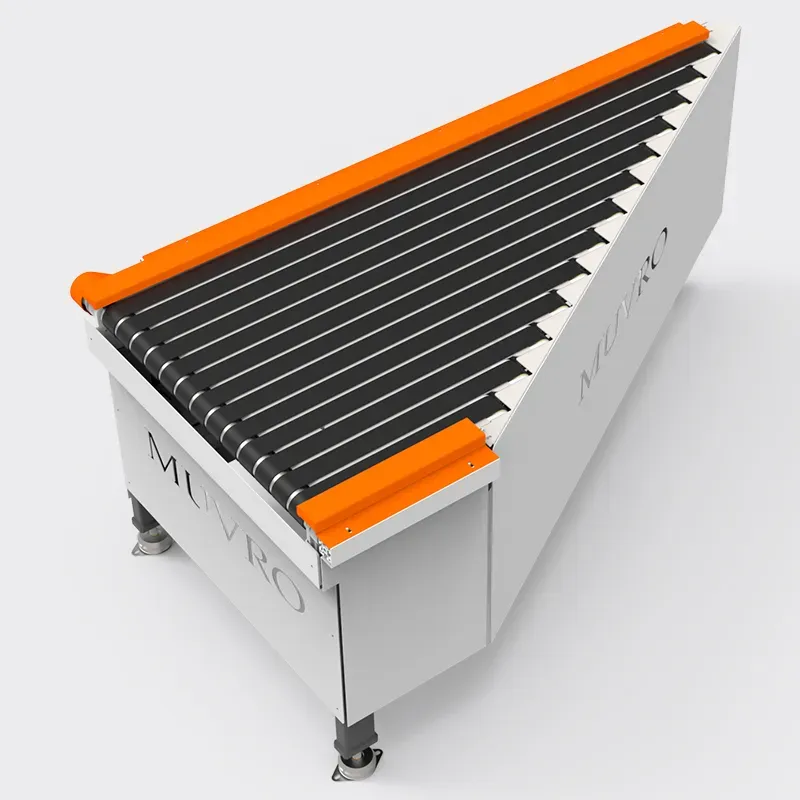

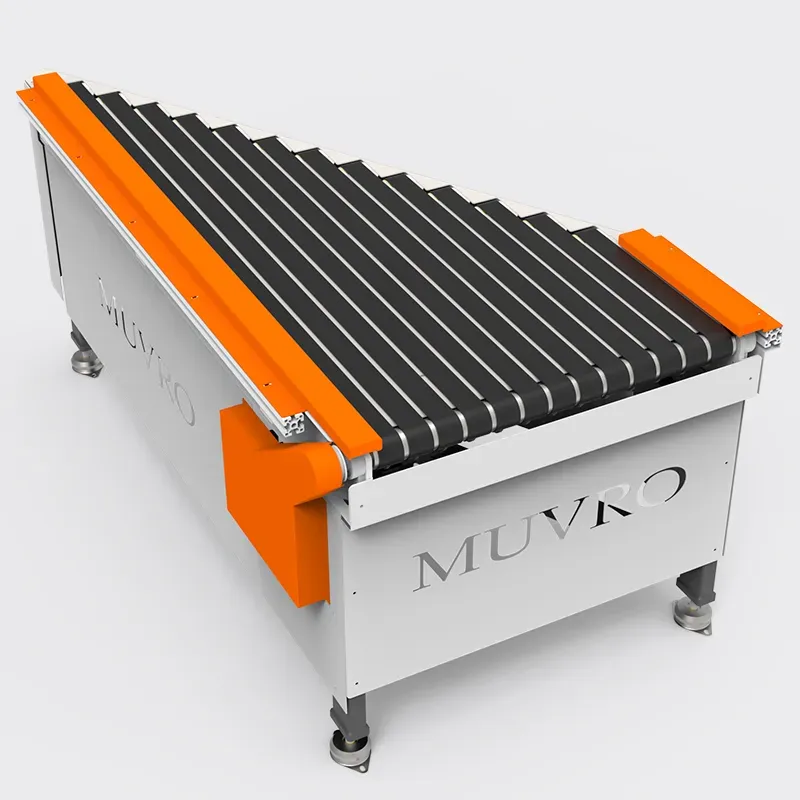

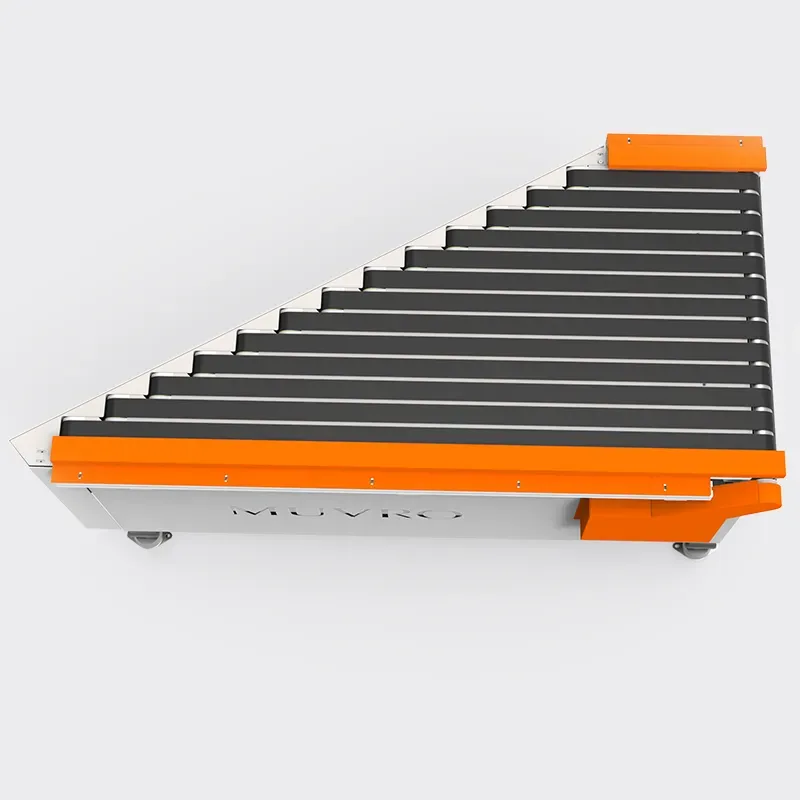

A PVC merge conveyor is a type of conveyor system that is specifically designed for use in situations where multiple conveyor lines need to be merged into one. These conveyors are made from durable PVC material that is resistant to wear and tear, and are able to handle a wide range of products and materials. PVC merge conveyors are widely used in manufacturing and distribution facilities, as well as in warehouses and other industrial settings. Th...
Our PVC merge conveyors are designed to be easy to install and maintain, and can be customized to meet the specific needs of your application.
They feature a durable PVC belt that is resistant to wear and tear, and is able to handle heavy loads.
They are also equipped with a variety of accessories, such as pop-up stops and guide rails, to help ensure smooth and efficient operation.
Compact conveyor system designed for controlled material flow, featuring geared motor drive, structured belt surface, modular capacity handling, and optimized roller configuration for precise industrial applications.
50 kg/m
Max. load capacity
120 kg
Max. load capacity per module
0.1 to 2.2 m/s
Conveyor speed
Not suitable
Incline/decline
–10 °C to + 45 °C
Ambient temperature
400 V / 50 Hz / 3 phases
Rated voltage
0.37 to 1.10 kW
Electrical power
Geared motor 0.37 kW to 1.10 kW
Motor type
92 / 120 mm
Diameter of drive roller
92 / 120 mm
Diameter of idler pulley, straight side
70 mm
Diameter of idler pulley, angled side
Structured surface
Conveyor belt
DIN EN 20340 (optional)
Flame resistant
90 or 40 mm
Belt width
Polymer slide profiles
Slider bed
30° / 45° / 60°
Angle
420, 620, 840, 1020 mm others on request
Rated width
270 mm
Overall height
