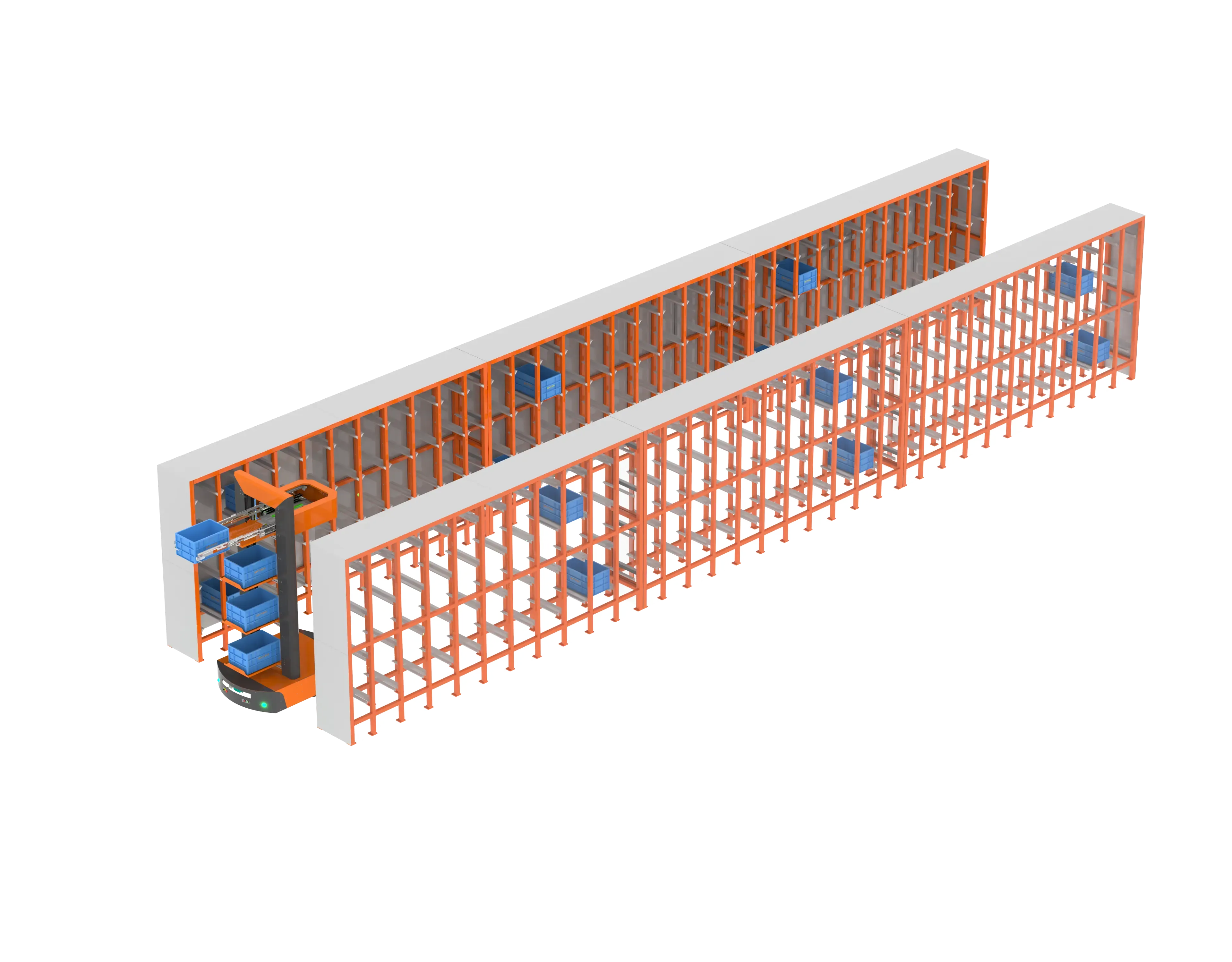

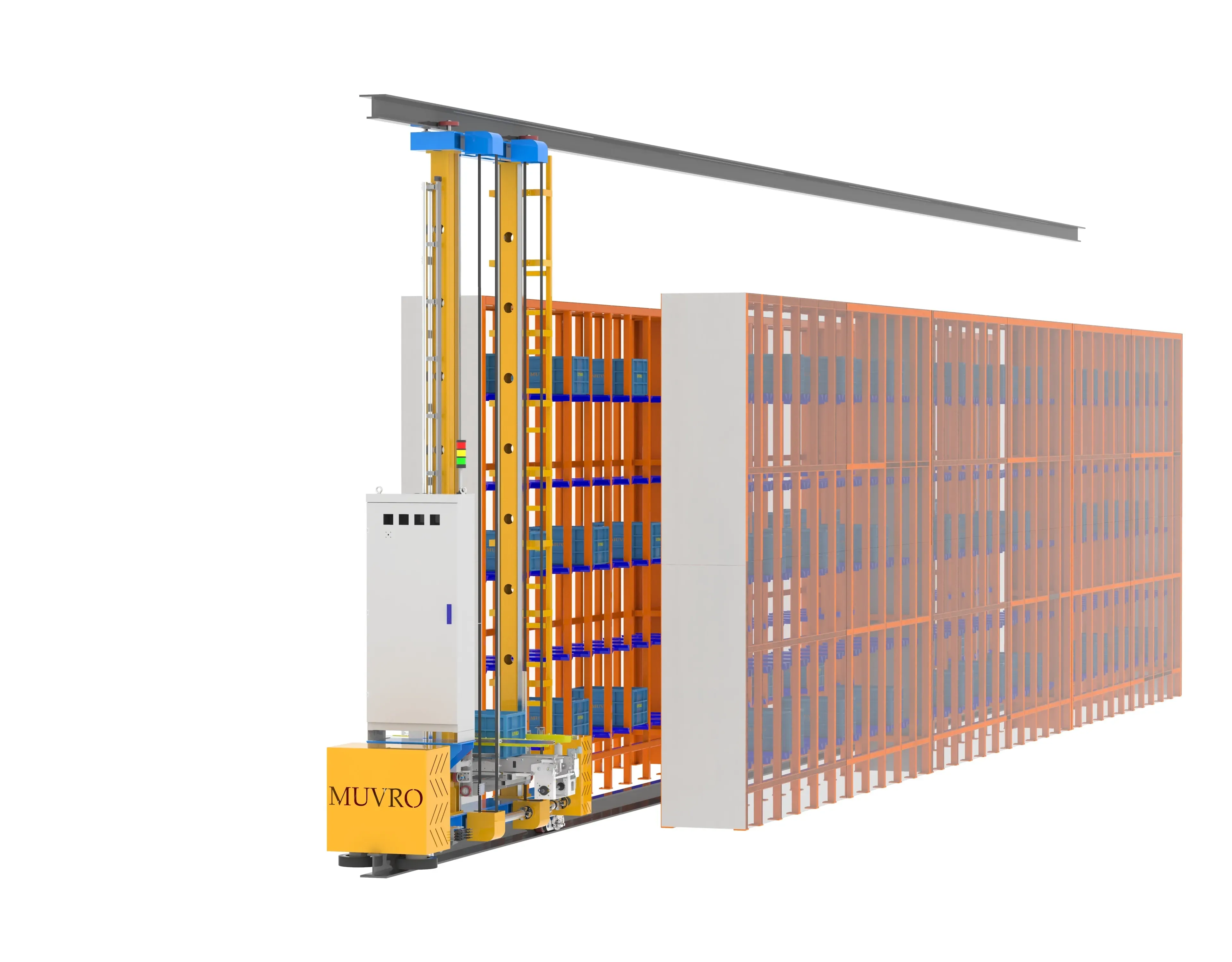

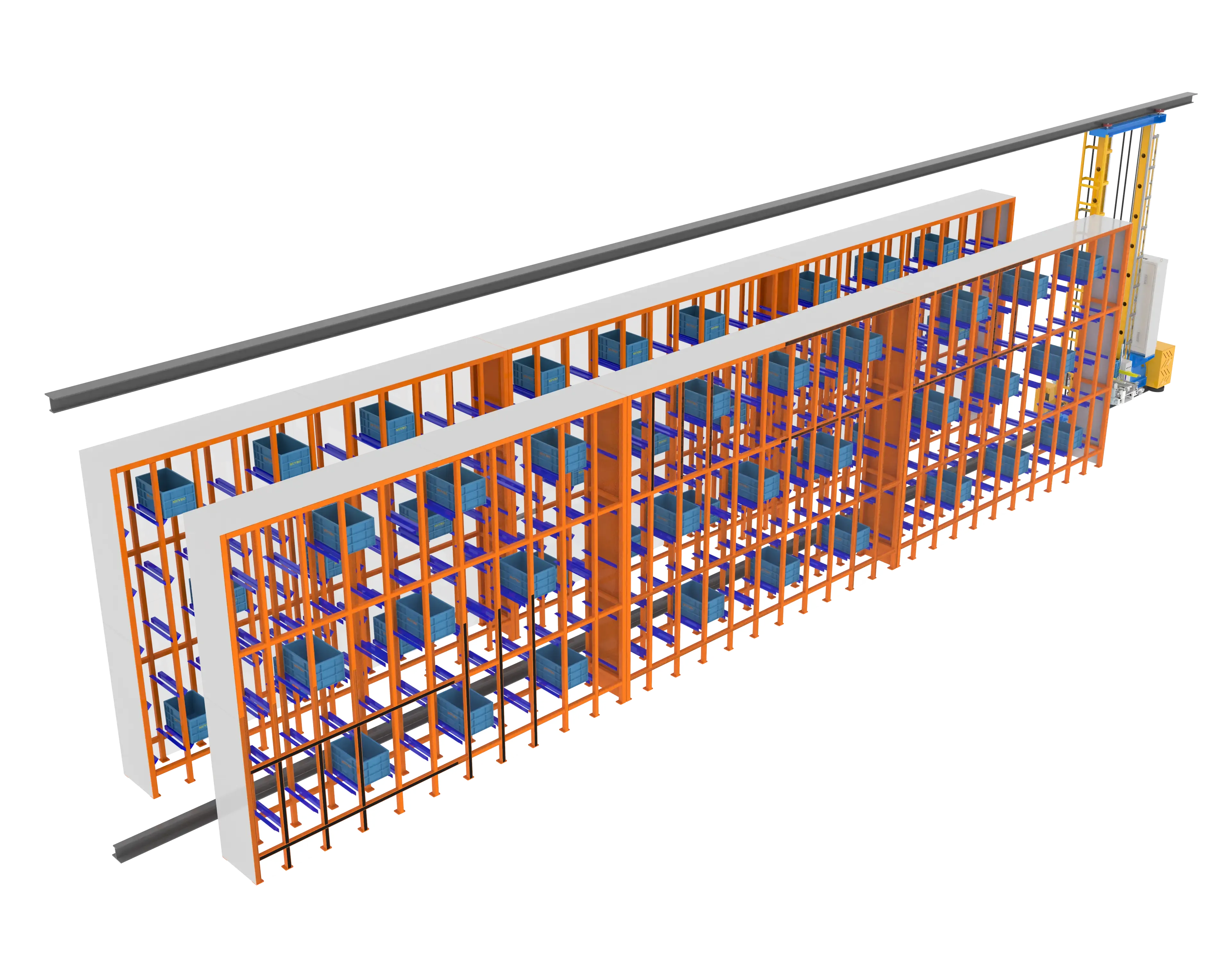

The Muvro Mini-Load ASRS is a high speed, multi-deep tote storage and retrieval system for today’s fulfillment centers. Robotic shuttles, vertical lifts and smart WMS integration dramatically increase storage density, order accuracy and picking speed – enabling frictionless e-commerce, retail, pharma and spare-parts logistics. This system can handle high volumes of SKUs with fast cycle times, enabling 24×7 automated operations in small warehouse ...
High density robotic warehouse
High throughput picking and replenishment
Live Inventory with Smart Item Traceability
Modular & Scalable SKU-wise Growth
Multi-client, multi-SKU storage support
Perfect for small containers, bins & cartons

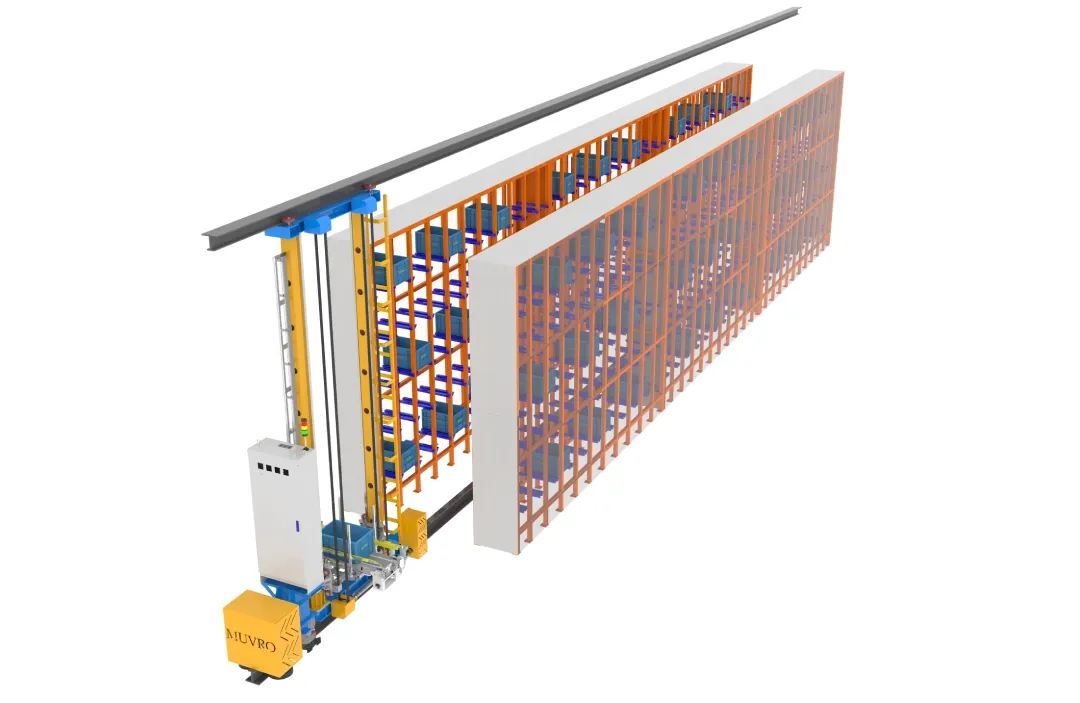

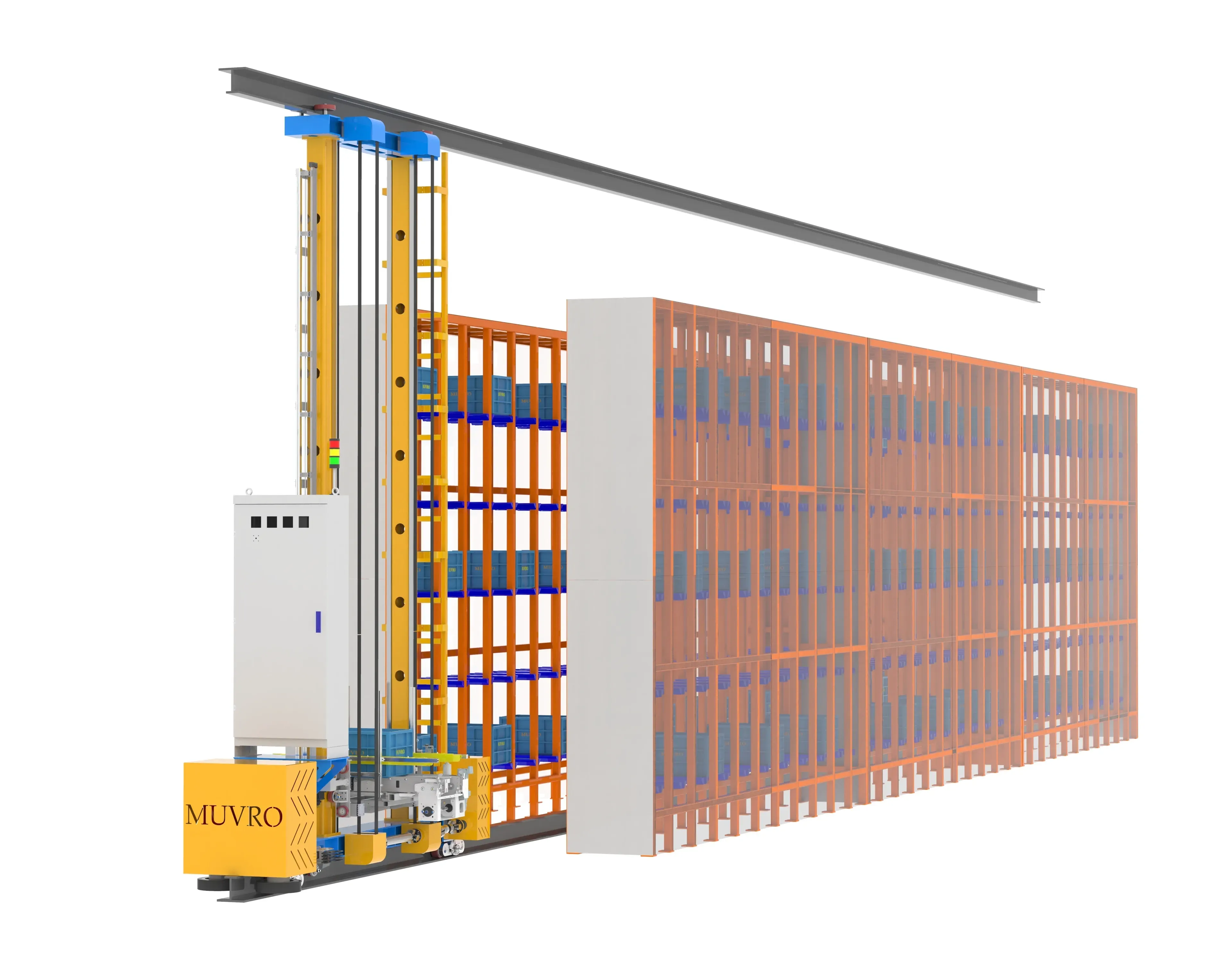

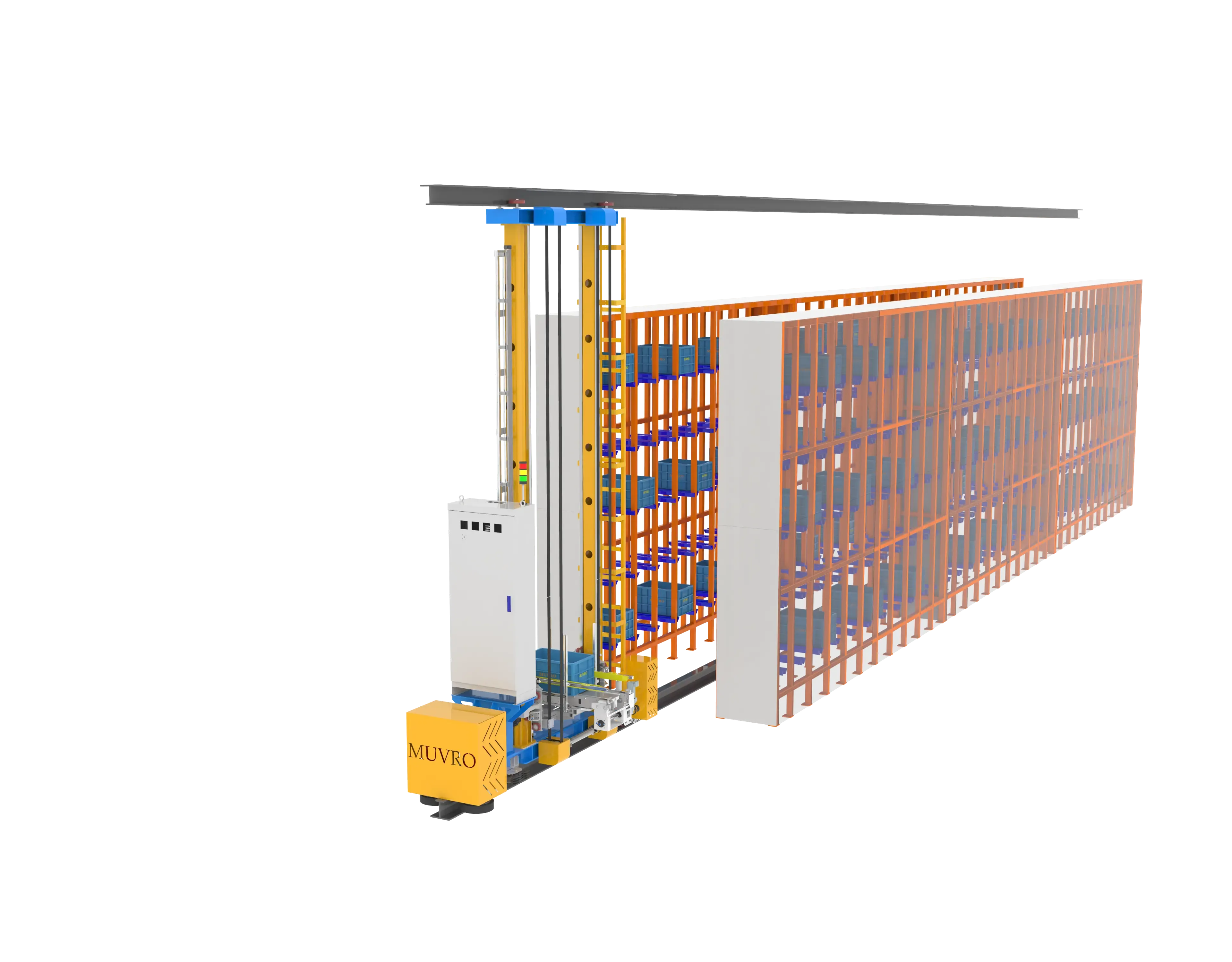

Mini-Load ASRS provides high throughput automated tote storage and retrieval with scalable design, using high speed shuttles, vertical lifts, dense racking, ergonomic picking and intelligent WMS and WCS software.

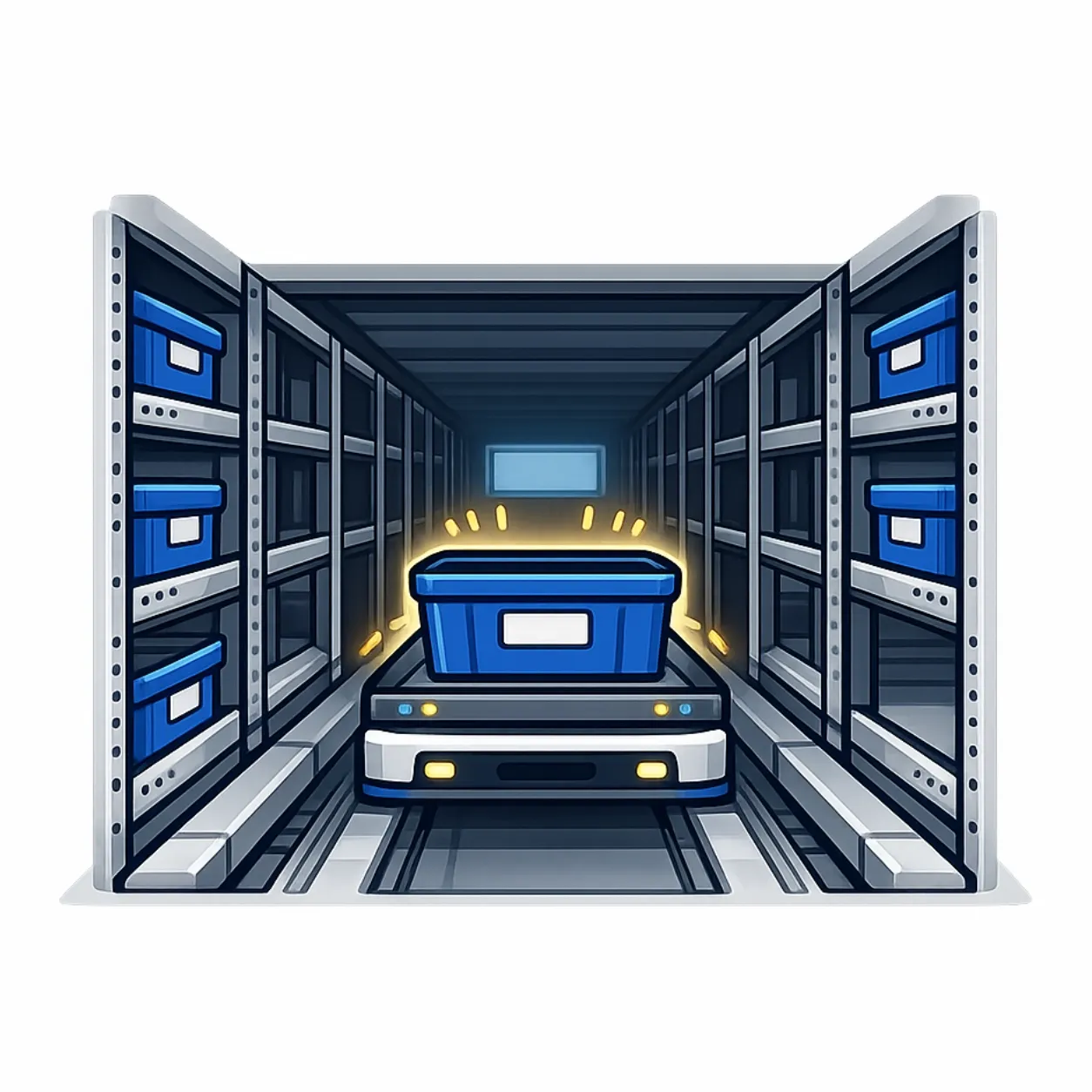

Fast robotic carrier that takes totes down aisles

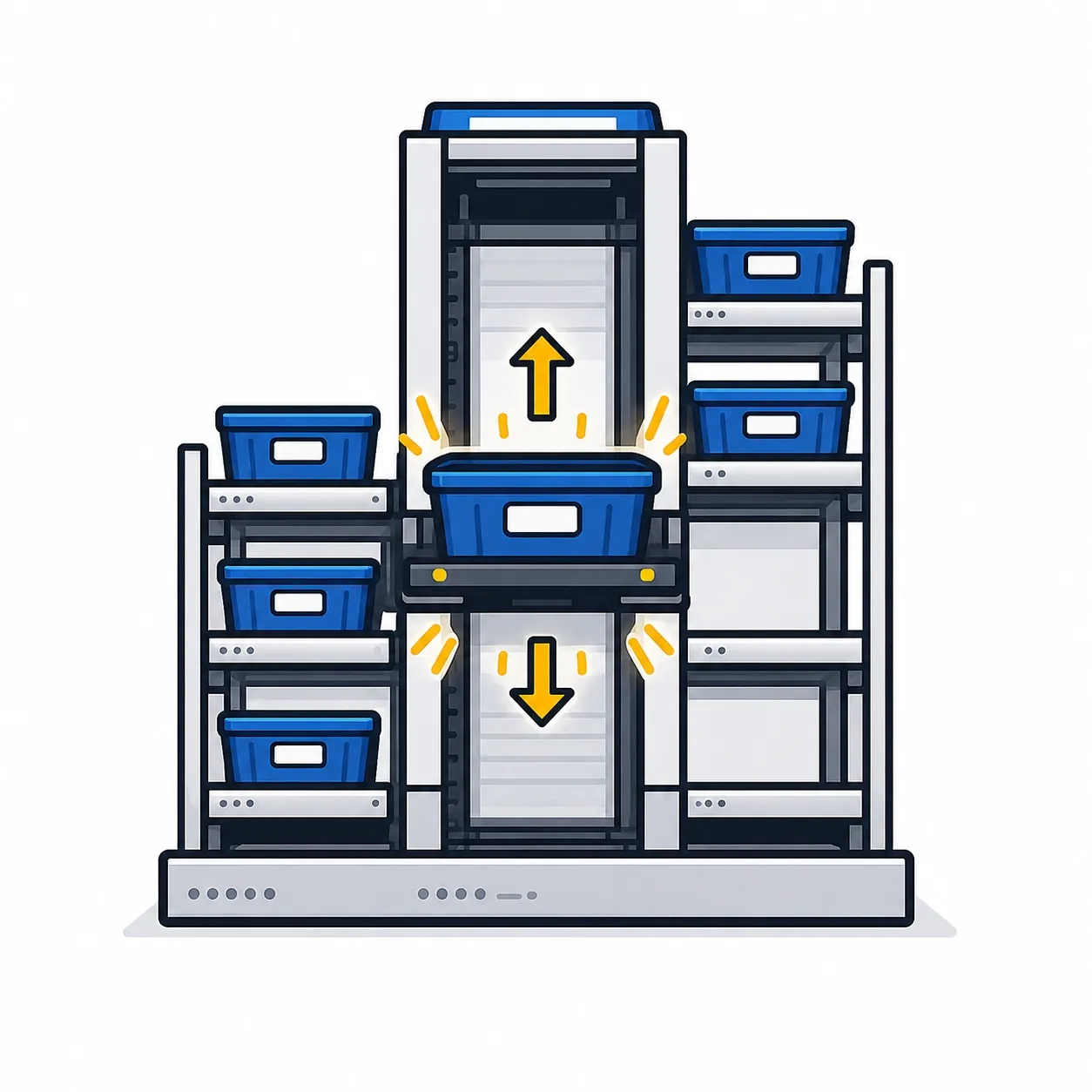

Moves totes between levels of storage
Dense storage lanes for bins/totes .
Order picking and consolidation points with ergonomic design
For Sequencing Outbound Orders
Item tracking, replenishment logic, order orchestration

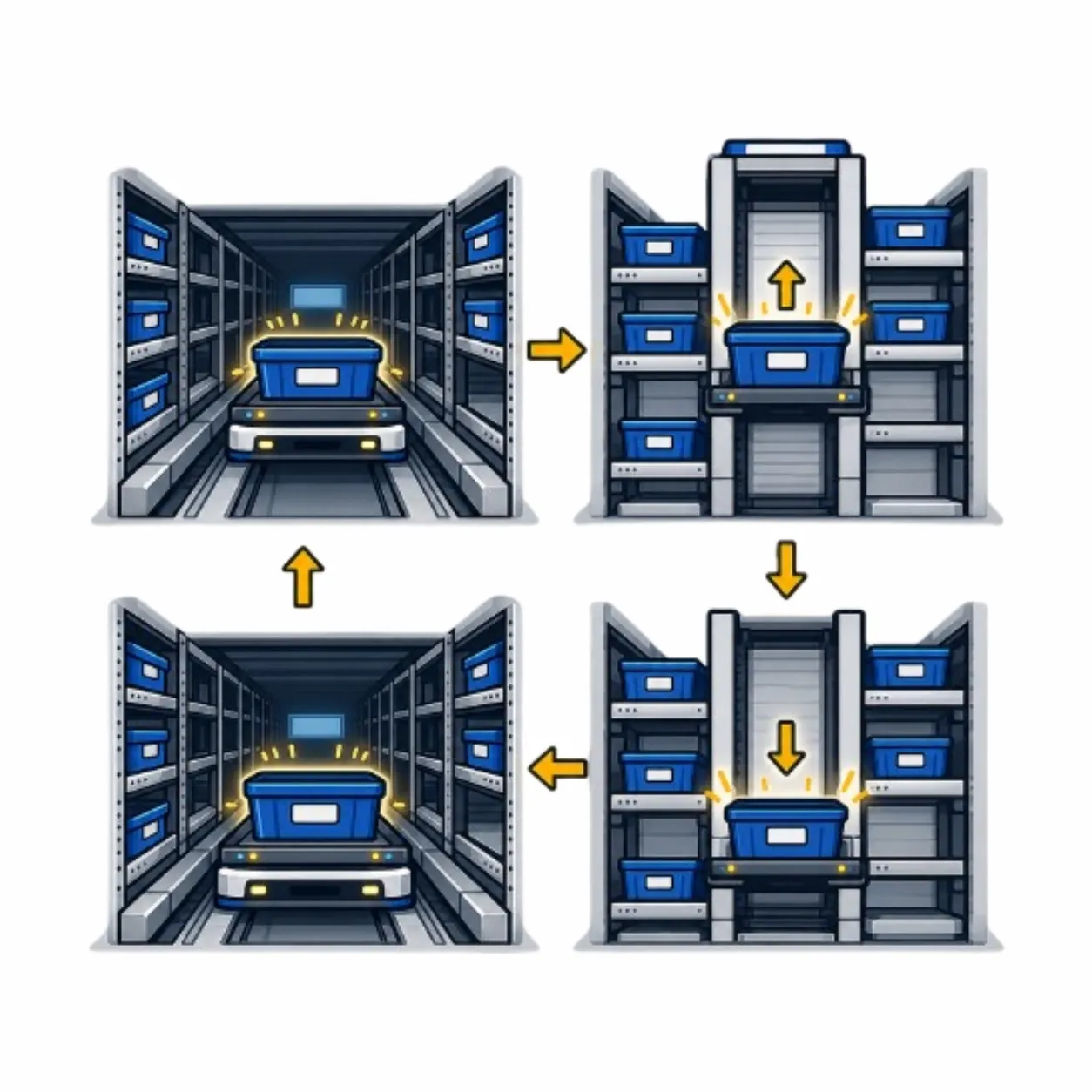

SKU received → Placed in a tote/bin
Shuttle picks tote from I/O station
Vertical lift moves tote to its assigned level
Shuttle deposits tote deep inside storage lane
During order picking → reverse operation

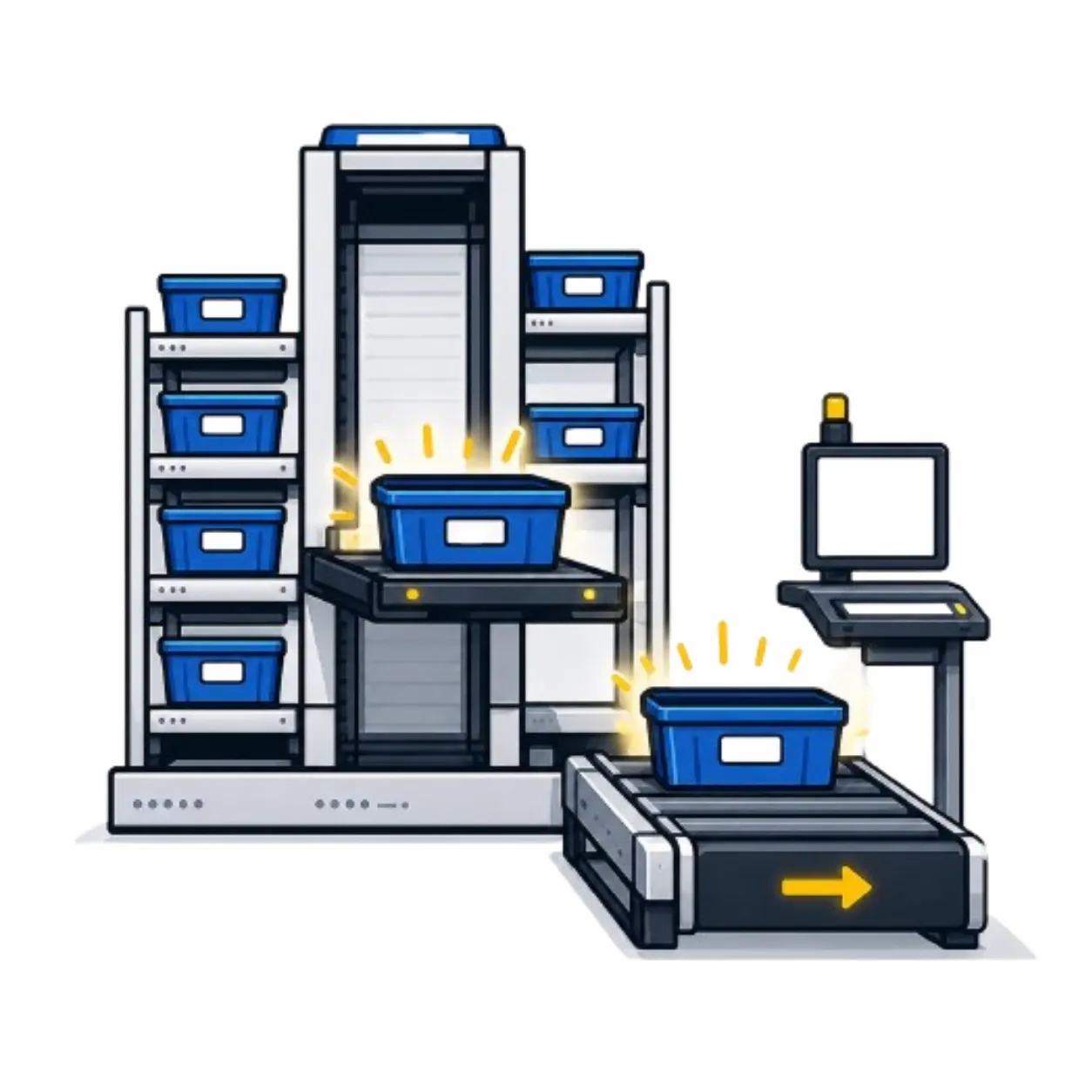

Tote delivered to Pick Station or Conveyor Output
High-performance shuttle storage system with fast tote handling, deep multi-lane storage, flexible operating modes, freezer compatibility and reliable communication for scalable automated warehouse operations.
400×600 / 600×600 mm (customizable)
Tote / Bin Size
Up to 50 kg per tote
Tote Weight Capacity
Up to 4 m/s horizontal
Shuttle Speed
Up to 3 m/s vertical
Lift Speed
2–6 deep multi-lane configuration
Storage Depth
6–20 m (project-based)
Structure Height
200–1200 totes/hr per aisle
Throughput
FIFO / LIFO / Batch / Sequencing
Operating Mode
+5°C to –25°C (freezer-compatible)
Temperature Range
PROFINET, Ethernet-IP
Communication
CE-aligned, ISO 3691-4 compliant
Safety Standard
Order picking, returns processing
Secure & traceable item storage
High SKU-density fulfillment
Spare-parts storage, batch picking
Fast-moving SKU distribution
Multi-client SKU management
High-speed accurate SKU order picking
AMR/AGV handover for zone-wise automation
Multi-item customer order bin sorting
Goods-to-Person ergonomic pick stations
Higher dispatch speed – peak load capability
More SKUs in a smaller footprint
>99.9% picking accuracy
60-70% less walking and searching
Real-time visibility cuts shrinkage
Small cold storage volumes
✔ Up to 80% space savings
✔ 3× faster order fulfillment
✔ Up to 99.9% inventory accuracy
✔ Rapid ROI within 18–36 months
✔ Built in India with global performance benchmarks
✔ 100% India-designed hardware & controls
✔ European-grade drive, safety & sensing components
✔ Quality certified manufacturing & testing procedures
Connect with our automation specialists to discover efficient, reliable, and cost-effective material handling and warehouse solutions tailored to your business needs.
