Plastic Modular Belt Conveyors are advanced and adaptable material handling systems designed to meet the diverse needs of modern industries. Engineered with interlocking thermoplastic segments, typically Polypropylene (PP) and Polyoxymethylene (POM), these conveyors deliver outstanding performance, reliability, and longevity. Their modular structure supports flexible layout configurations and straightforward customization, making them ideal for b...
Supports flexible layouts and easy customization for changing operational needs.
Made from robust thermoplastics like PP, POM, and PE for long service life.
Allows quick belt replacement with minimal downtime and tools.
Performs reliably in extreme temperatures and harsh environments.
Available in various belt types for straight, inclined, curved, and declined paths.
Low-friction components reduce power consumption and operating costs.

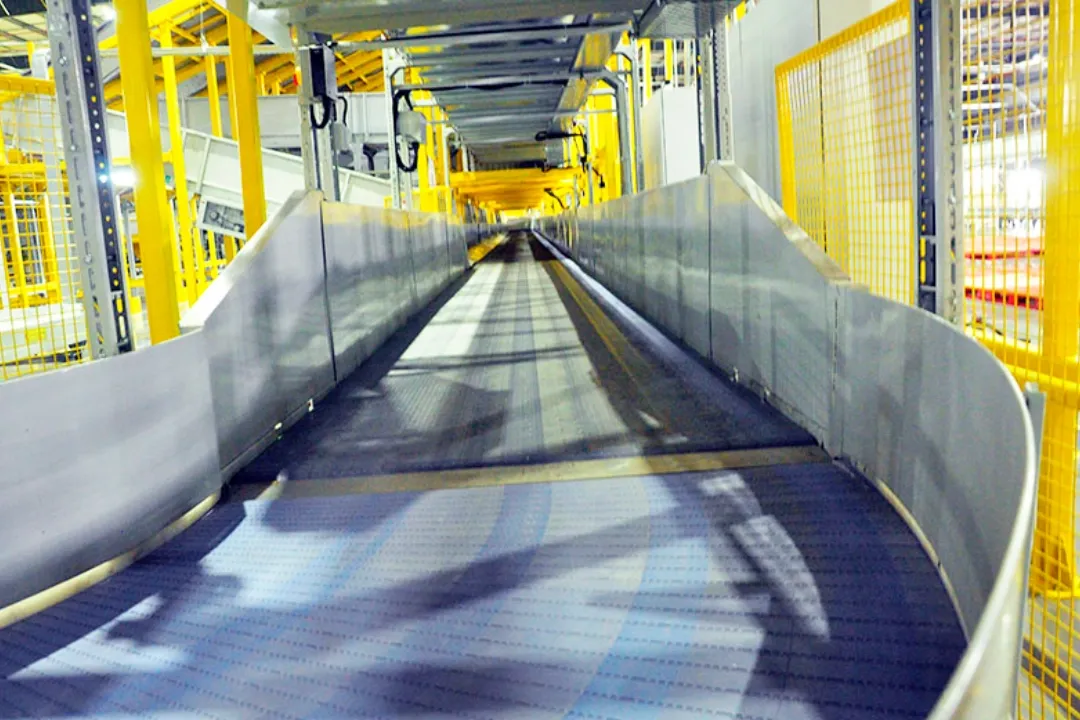

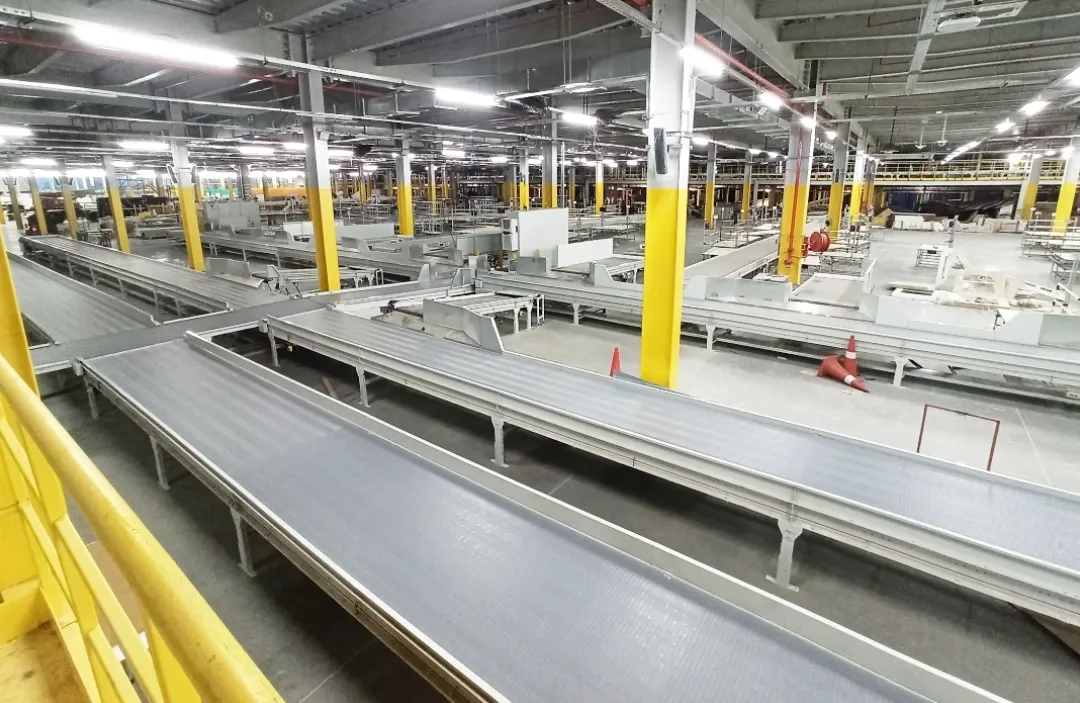

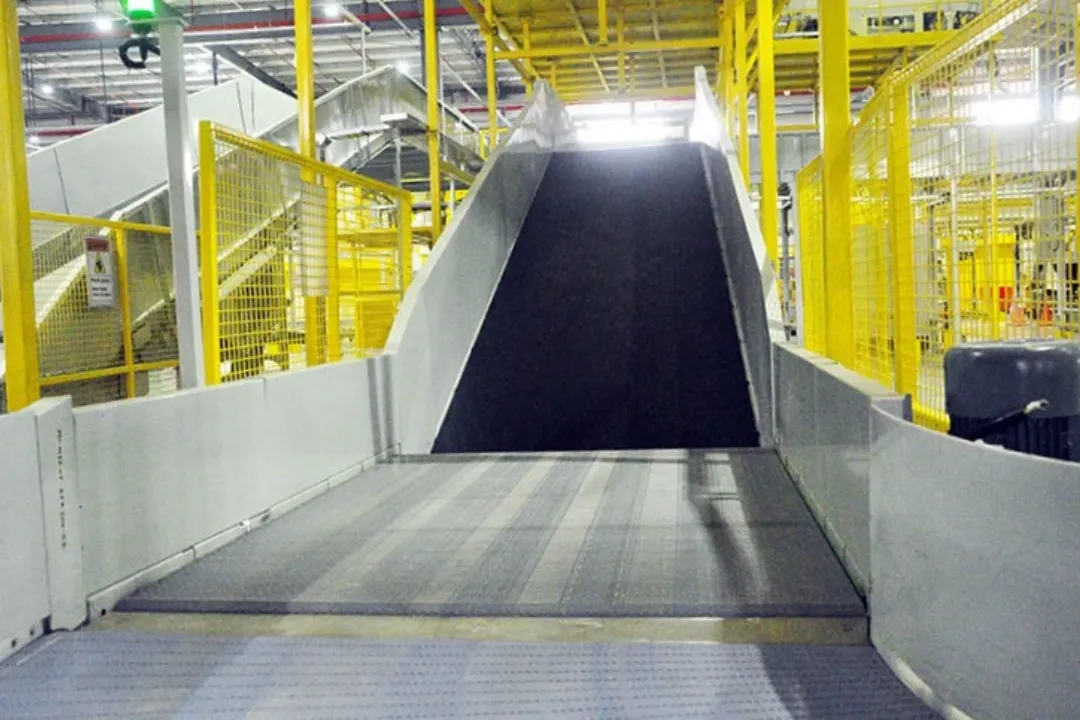

Plastic Modular Belt Conveyors are available in various types to suit diverse operational needs. Straight running conveyors are ideal for linear material transfer and can handle medium to heavy loads efficiently. Curved modular belt conveyors allow directional changes within a single line, reducing the need for multiple conveyors and saving space. Inclined or declined conveyors help move products across varying heights and can include flights and side guards for enhanced control. Radius or side-flexing conveyors are suitable for space-constrained layouts, capable of tight turns. Heavy-duty variants are built with reinforced belts and frames to manage high-impact and heavy-load applications.
They are also essential in automotive assembly
Engineered for hygienic, flexible, and heavy-duty material handling with customizable dimensions, variable speed control, and reliable industrial automation integration.

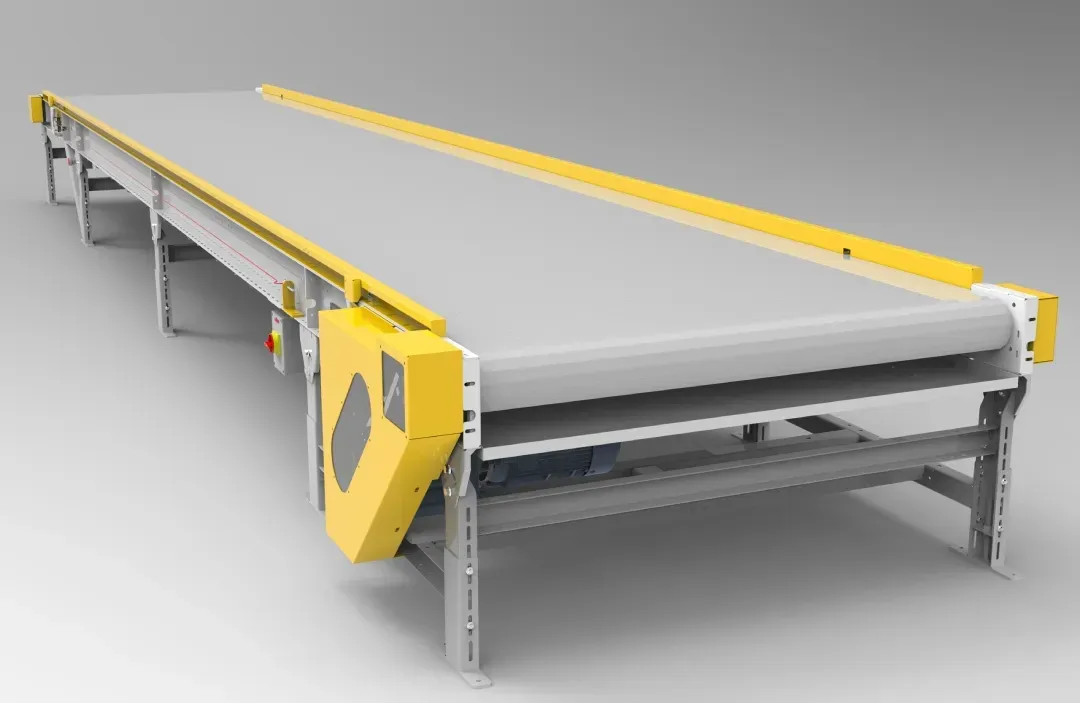

Plastic Modular Belt Conveyor
Conveyor Type
Modular
Conveyor Chasis Construction
Polypropylene (PP), Polyoxymethylene (POM), Polyethylene (PE)
Belt Material
Flat top, perforated, flighted, friction top, roller top, raised rib
Belt Types Available
12.5 mm/25.4 mm/38.1 mm/50.8 mm
Belt Pitch
50 mm to 1500 mm
Belt Width
Up to 30 meters or more
Conveyor Length
300 mm to 5000 mm
Conveyor Height
Up to 200 kg/mtr
Load Capacity
10 m/min to 70 m/min
Conveyor Speed
Stainless Steel (SS304/SS316), Mild Steel with Powder Coating, Aluminum
Frame Material
Adjustable steel legs, leveling feet, castor wheels for mobility
Support Structure
Height- 50 mm, 150 mm, 300 mm, 600 mm
Side Guides
Gray RAL-7016, Orange Glossy HGS 2302
RAL Colour
End Drive, Center Drive, Top Drive, Bottom Drive
Drive Configuration
Uni-direction and Bi-Direstion
Operational Direction
AC Motor, DC Motor, Servo Motor, Drum Motor
Drive Motor
0.25 kW to 5.0 kW
Drive Power
Manual tensioner, automatic tensioner (spring loaded)
Belt Tensioning System
CIP (Clean-in-Place) systems, scrapers, brush cleaners
Belt Cleaning Options
PP 100°C, POM: -40°C to 90°C, PE: -50°C to 65°C
Operating Temperature Range
<70 dB
Noise Level
Emergency stop, side covers, safety guards, overload protection
Safety Features
CE, FDA, ISO 9001, OSHA, UL
Compliance Standards
