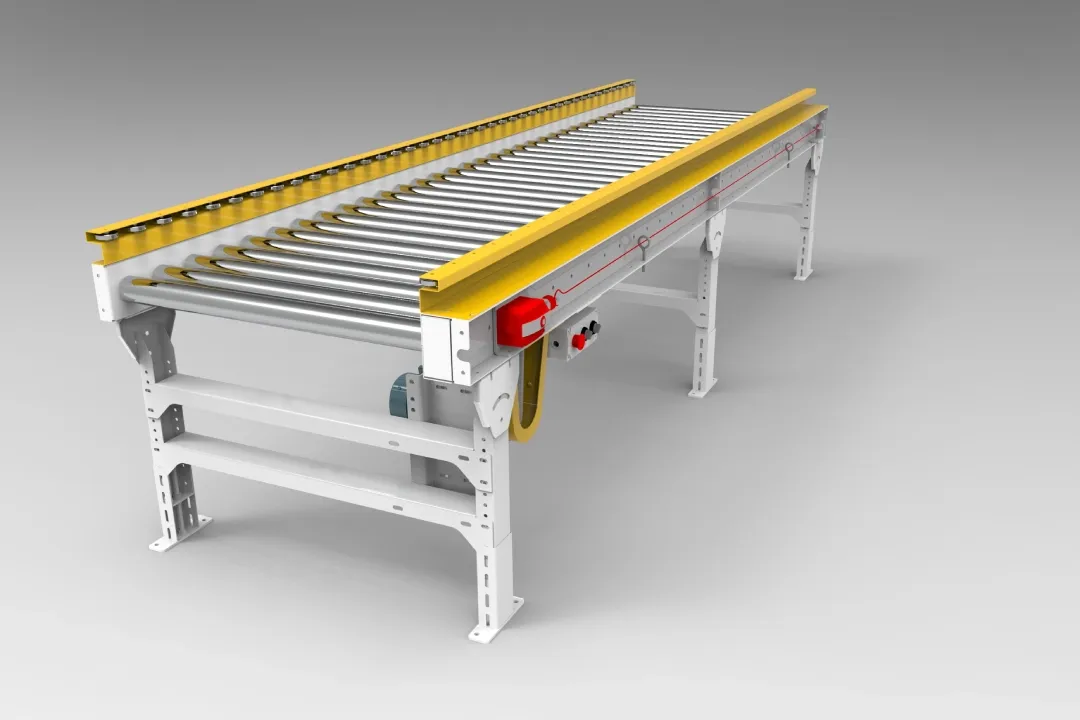

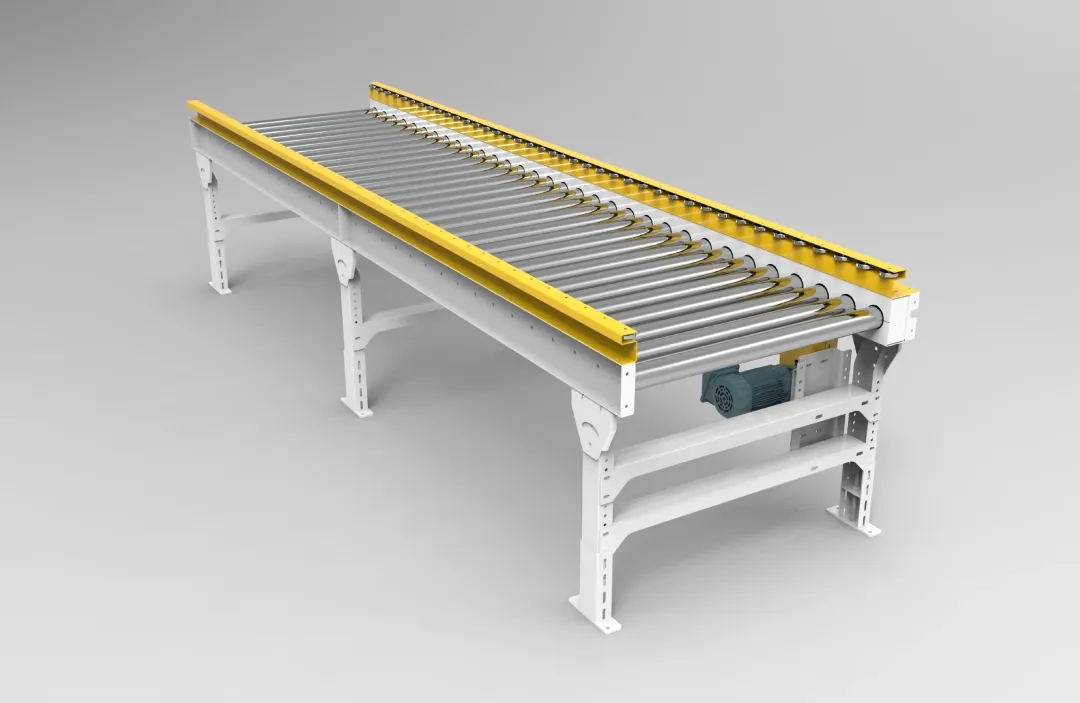

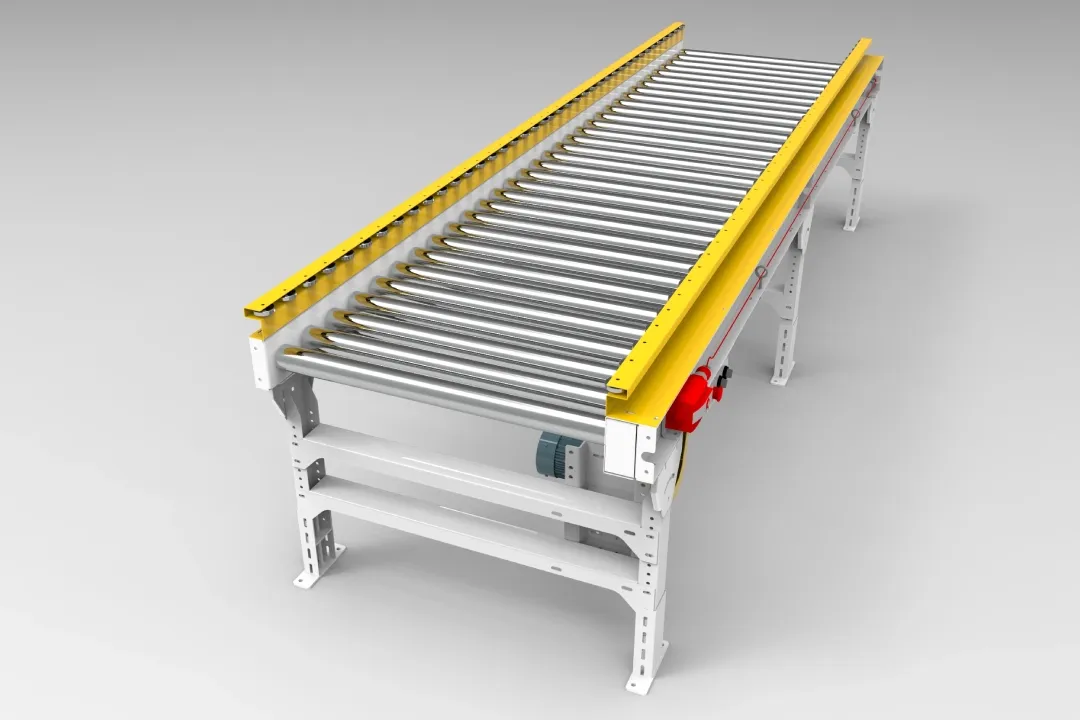

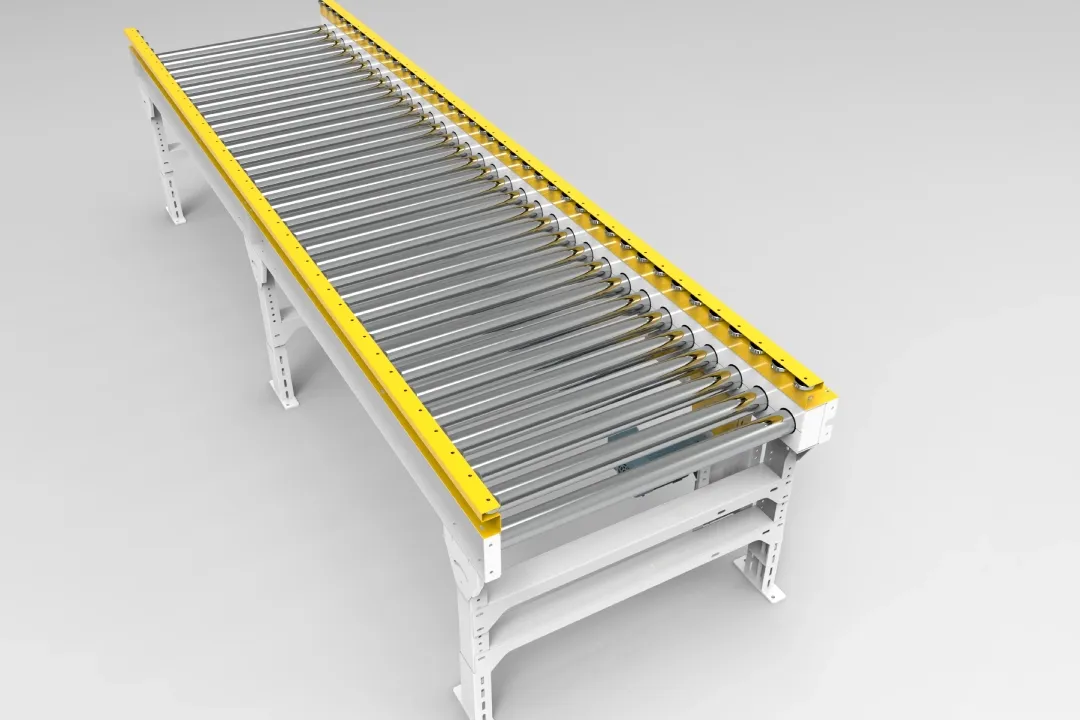

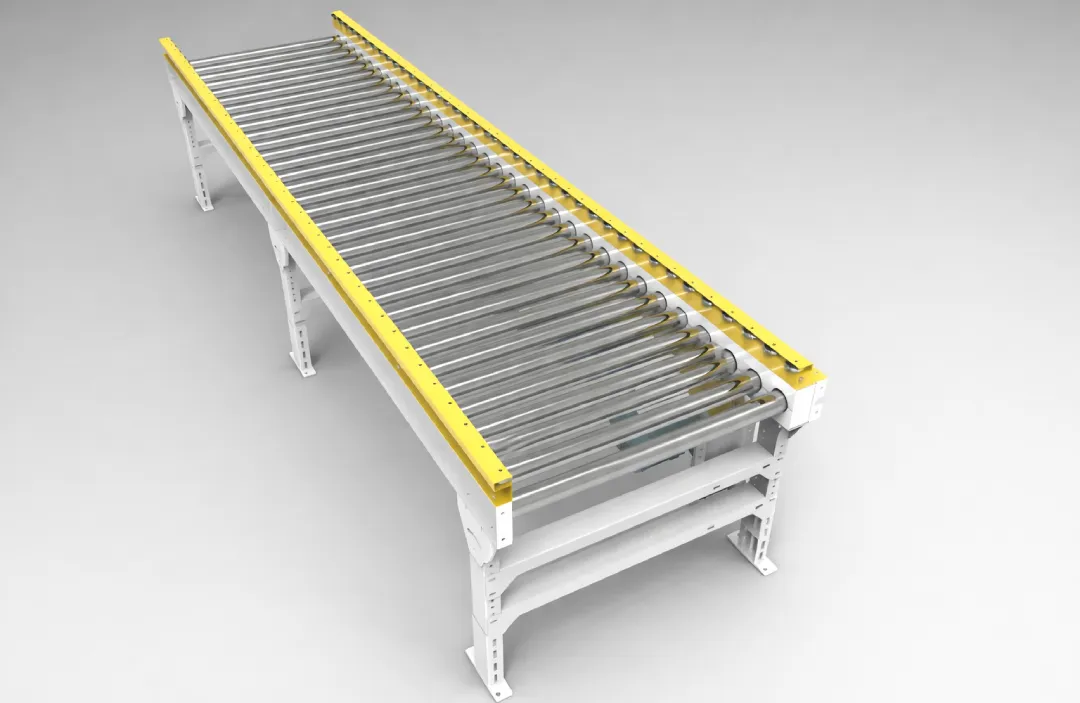

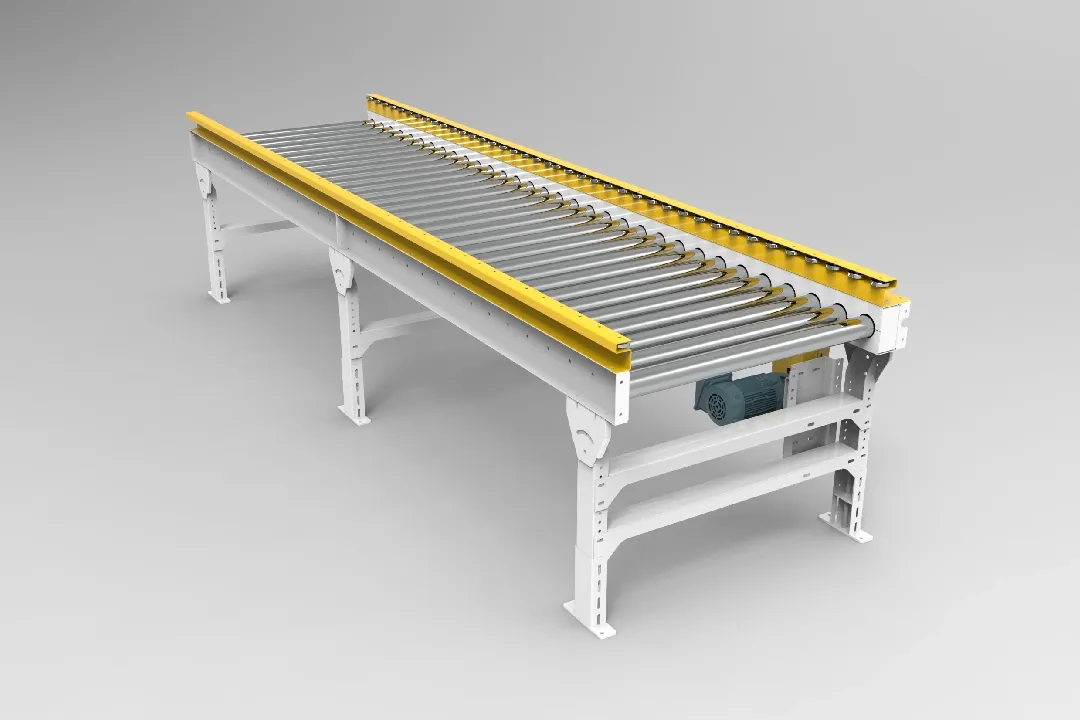

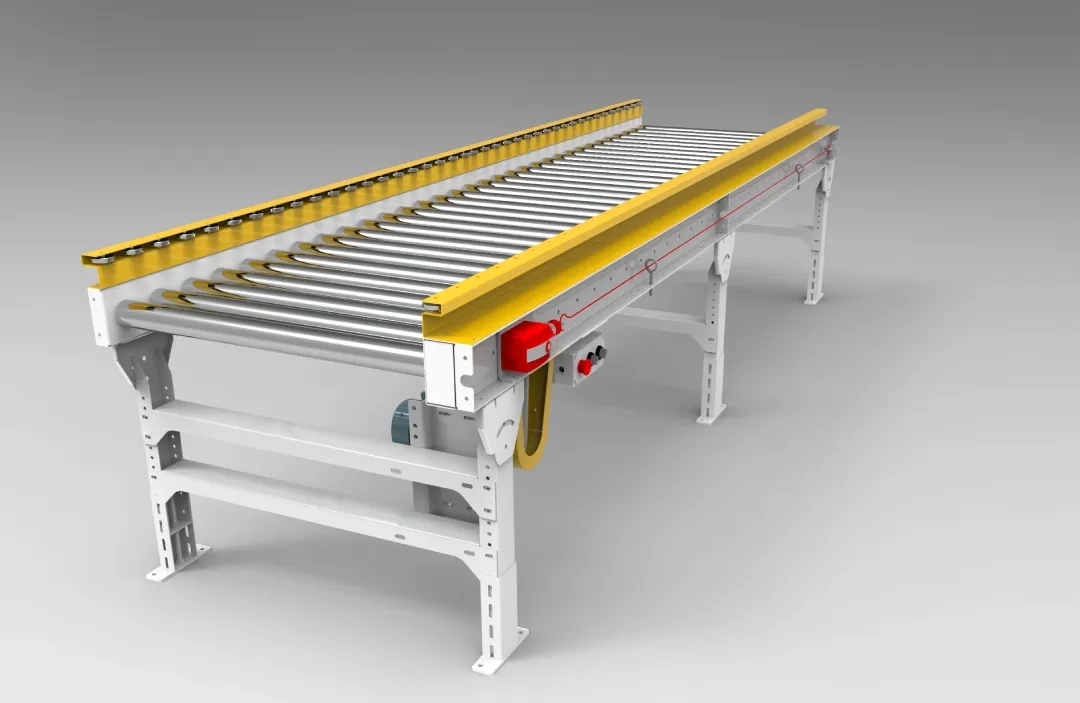

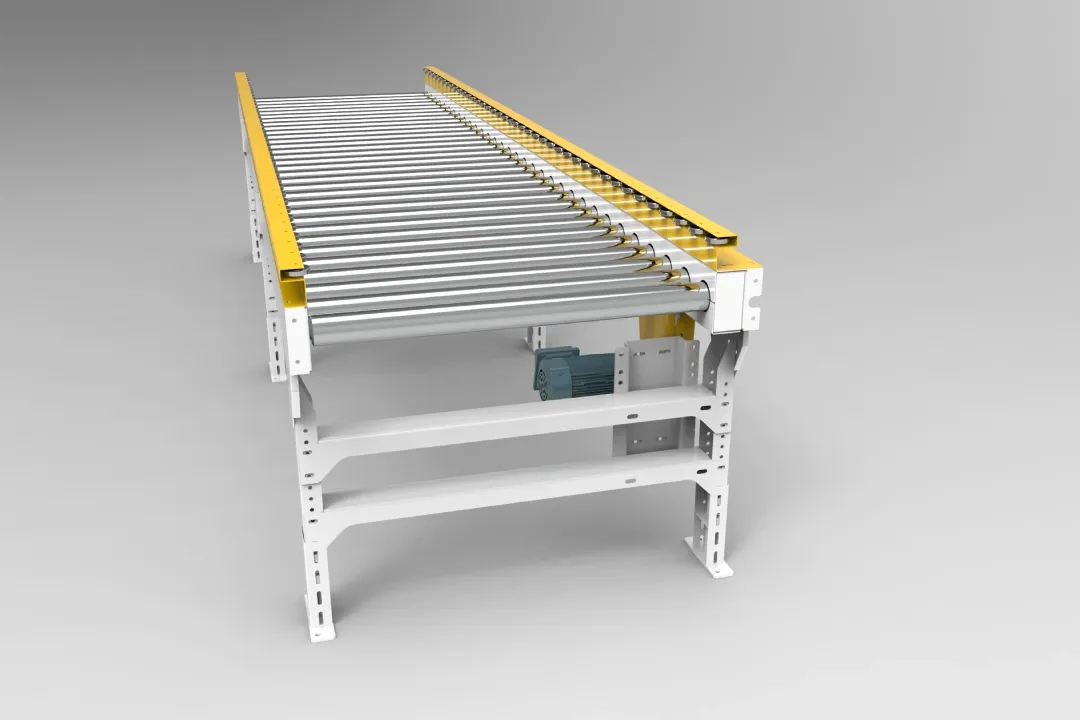

The Powered Roller Conveyor is designed for continuous and efficient material movement, driven by an AC geared motor. Powered Roller Conveyor operates without zone control, utilizing a chain or belt drive mechanism for synchronized roller movement. This ensures smooth product transport across various industrial applications such as warehousing, distribution centers, manufacturing, and e-commerce logistics.
Ensures uninterrupted material movement without zone-based stoppages.
Minimal control components simplify installation and maintenance.
Centralized drive reduces the number of motors required compared to ZPA systems.
Continuous operation enables efficient handling of large volumes.
Supports continuous running or indexing, configurable via PLC programming.
Customizable in various widths, heights, and configurations to suit industry-specific requirements.
Constructed from high-quality CRC steel sheet that is CNC laser cut and bent into a C-profile with collar bends, the frame features slotted flanges and defined ...
CNC laser-cut and bent into a C-profile with slotted holes for height adjustment, the structure includes smile brackets for angle alignment and flat bottoms wit...
Available in various tube diameters — 50 mm, 60 mm, 80 mm, 90 mm, and 100 mm — and uses a Drive Mechanism based on roller-to-roller chain or belt drive.
Photoelectric (Reflective or Through-Beam) sensors mounted at infeed and discharge points for product detection.
Main driving force for the conveyor, controlled via VFD for speed regulation.
Protect moving parts from exposure
For product presence detection and automated control
Ensures organized wiring and easy maintenance
For controlled product flow direction and separation
Used for product sorting and alignment
Adjustable configurations for various product sizes
Ideal for warehouses and distribution centers, ensuring smooth transport of small to medium-sized packages.
Used in assembly lines for transporting lightweight automotive components.
Handles pallets within specified weight limits, ensuring steady movement.
Enables efficient material flow in industrial production and storage environments.
Supports high-throughput order fulfillment systems, automated sortation, and logistics handling.
Modular powerised roller conveyor engineered for reliable, high-throughput material handling of tyres, pallets, cartons, totes, and flat-bottom items, featuring adjustable speed, PLC control, low noise operation, and robust industrial construction for automation-ready facilities.
Powerised Roller Conveyor
Conveyor Type
Modular
Conveyor Construction
50 mm, 60 mm, 80 mm, 90 mm, 100 mm
Roller Tube Dia
Steel, Zinc Plated, PU Coated
Roller Tube Material
Fixed Drive Roller
Roller Type
Sprocket, Poly Vee, Double Groove on Tube or Timing Pulley
Roller Drive Head
75, 90, 100, 120 mm
Roller Mounting Pitch
1 Mtr ~ 15 Mtr
Conveyor Length
Max 3 Mtr
Conveyor Module Max Length
300 ~ 1200 mm
Conveyor Width
300 mm 2400 mm
Conveyor Height
5˚ to 10˚ Max
Inclination Angle
Safety Covers, Cable Tray ,Bottom Cover, Roller Gap Covers , Channels Side Covers, Stoppers, Pop up Etc
Conveyor Accessories
30 Kg, 50 kg, 75 kg, 125 Kg / Mtr Max
Conveying Capacity
5 ~ 90 Mtr / Min
Conveyor Speed
< 70 dBa
Running Noise
(-)10°C to 40°C (humidity 10–95% non-condensing)
Ambient Temperature Range
Tyres, Wheel, Pallets, Carton Box, Plastic Bag, Tray, Totes and Mostly Flat Bottom Items.
Conveying Products
AC Geared Motor, Power Roller
Conveyor Drive
By PLC
Sequence Control
By VFD or Roller Drive Card
Speed Control
HMI
Man Machine Interface
Optional
SCADA / WCS
Profinet / Ethernet / Modbus
Communication Protocol
Profinet / Ethernet / Modbus
Real Time Communication
Photo Electric Sensors
Sensors
3 Phase (360 ~ 440 VAC)
Main Power Supply to Control Box
50 ~ 60 Hz
Rated Frequency
Steel Wheel, Round Tube, U Channel
Side Guide
50 mm, 150 mm, 300 mm, 600 mm
Side Guide Height
High-quality CRC steel sheet
Conveyor Frame & Legs
Shot Blasted and Powder Coated
Painting
Gray RAL-7016, Orange Glossy HGS 2302
RAL Colour
CE, ISO 9001, OSHA, UL
Certifications
