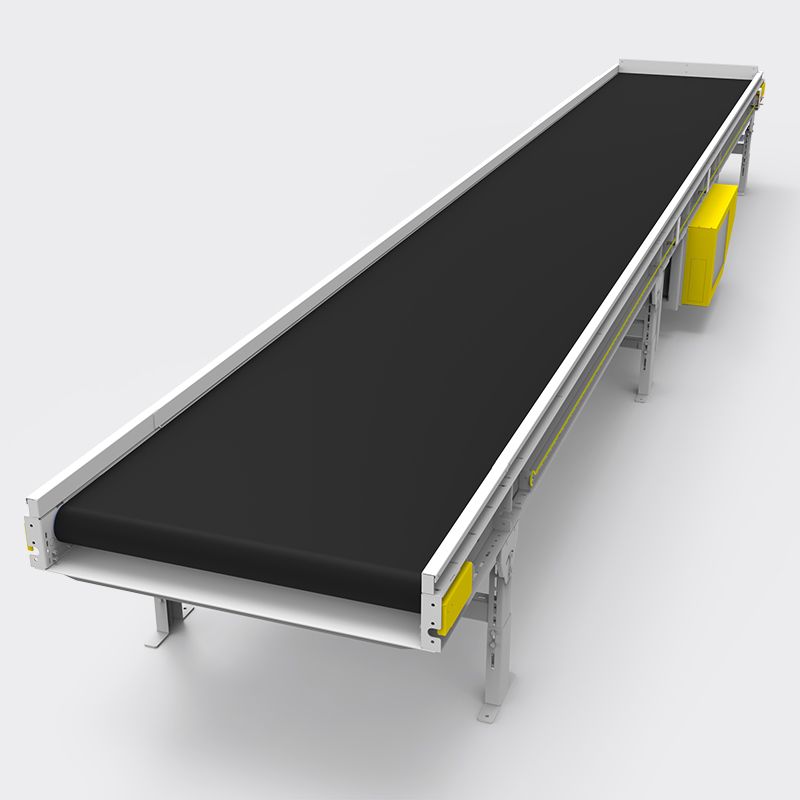

A Belt Conveyor is a versatile and cost-effective material handling system used in industries such as e-commerce, warehousing, logistics, food processing, packaging, and manufacturing. It operates with a motor-driven belt running over rollers or a flat support bed, ensuring smooth and controlled product movement. Equipped with a Variable Frequency Drive (VFD) for precise speed adjustments and a Programmable Logic Controller (PLC) for seamless aut...
Available in various widths, lengths, and configurations, with modular options like inclines, declines, and accumulation zones for enhanced adaptability.
Premium energy-efficient drive system controlled by VFD, optimizing power consumption while ensuring quiet operation below 70 dBA.
Provides stable, vibration-free transport with a capacity of up to 150 kg/m and adjustable speeds ranging from 10 to 90 m/min.
Integrated with PLC and VFDs for precise speed adjustments, sequence control, load management, and seamless system automation.
Highly durable and long-lasting system with overload protection, emergency stops, pull-cord switches, and protective guards for operator safety and jam prevention.
Manufactured and delivered within as low as 2 weeks, ensuring fast deployment and operational efficiency.

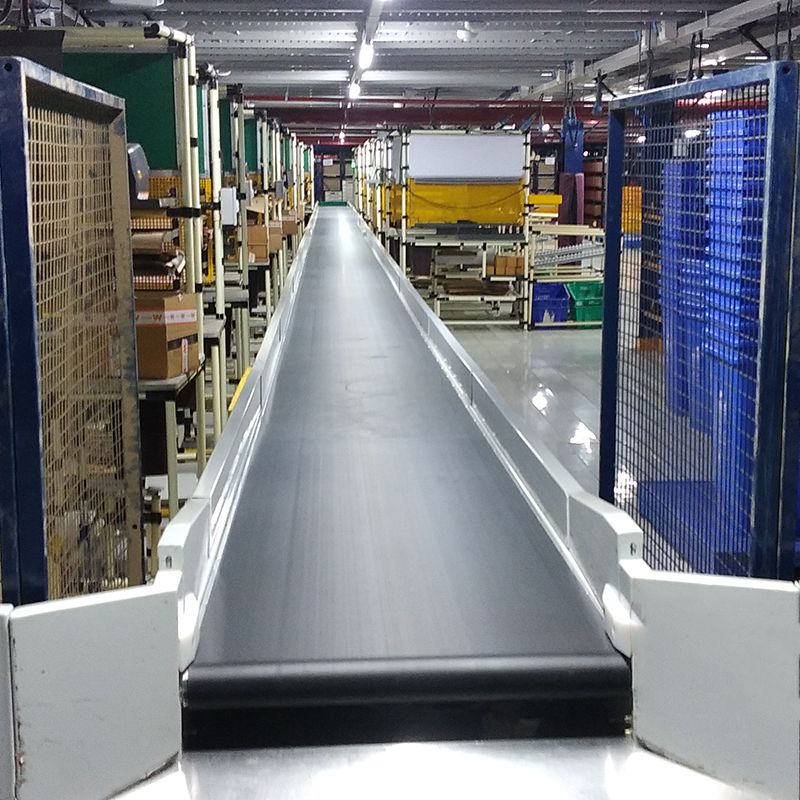

Efficient transportation of products for sorting, packaging, and dispatch. Compatible with barcode scanners and automated logistics systems.
Moves work-in-progress (WIP) materials between production stages. Ideal for buffering, accumulation, and quality control processes.
Facilitates fast and efficient order fulfillment. Used in parcel sorting, labeling, and shipping operations.
Suitable for packaged food and beverage transportation. Ensures hygiene compliance with easy-to-clean belt surfaces.
Used for transporting small components and assemblies. Prevents product damage through smooth handling and zero-pressure accumulation.
Enables smooth acceleration/deceleration and energy-efficient operation.
Acts as the central control unit, managing speed, product flow, and safety interlocks.
Provides an intuitive user interface for speed control, diagnostics, and real-time monitoring.
Detect products, prevent jams, and ensure accurate positioning for automated processes.
Can be synchronized with upstream and downstream conveyors to maintain consistent product flow.

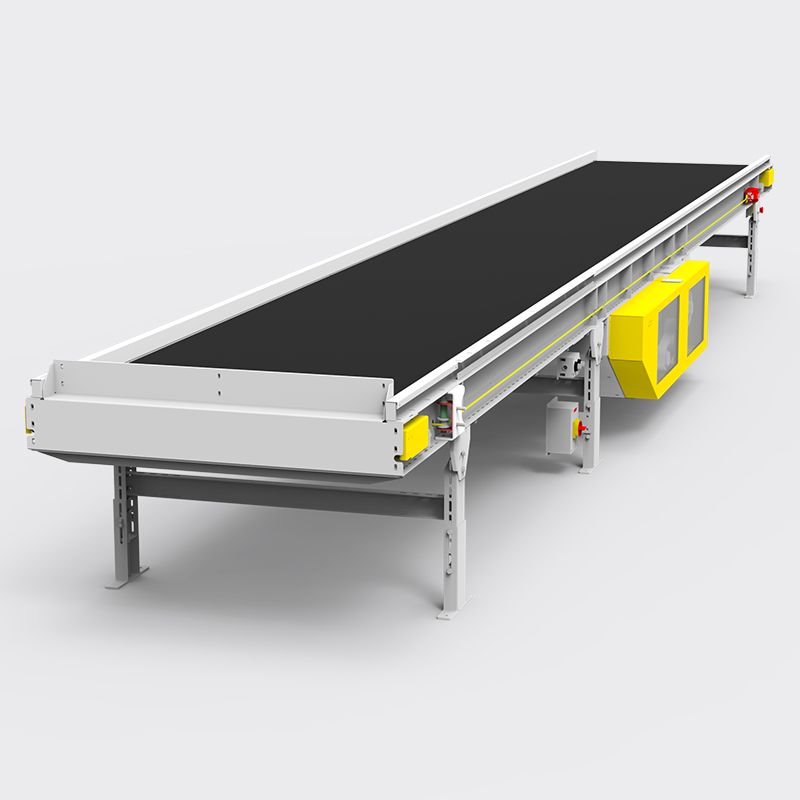

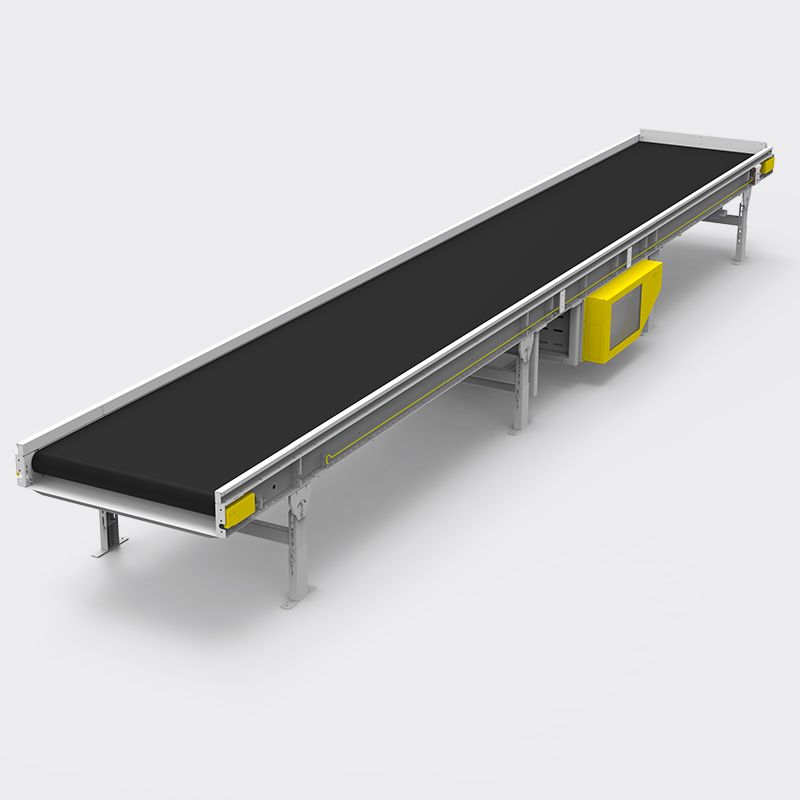

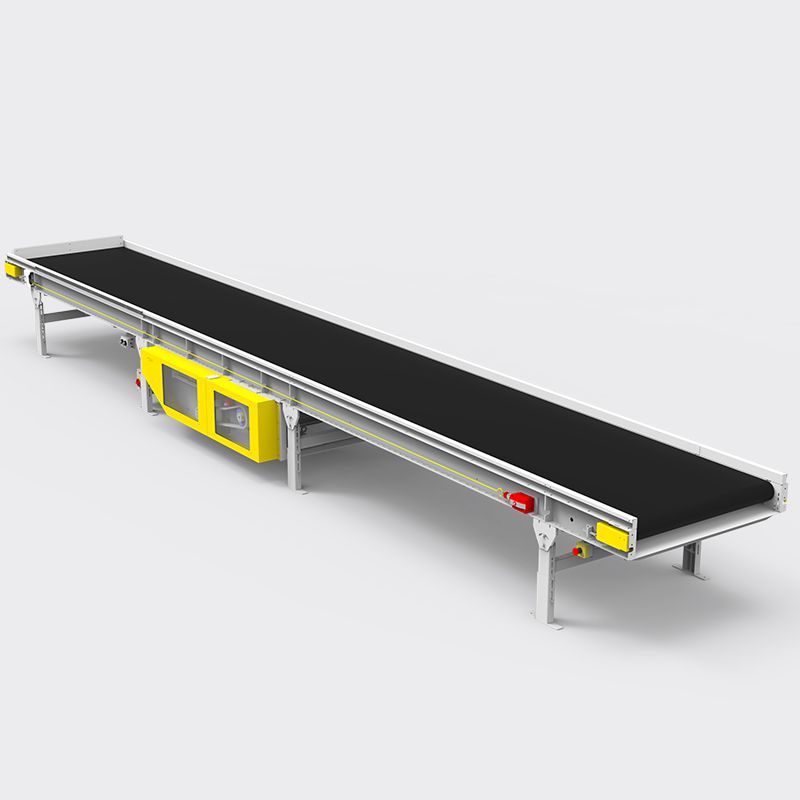

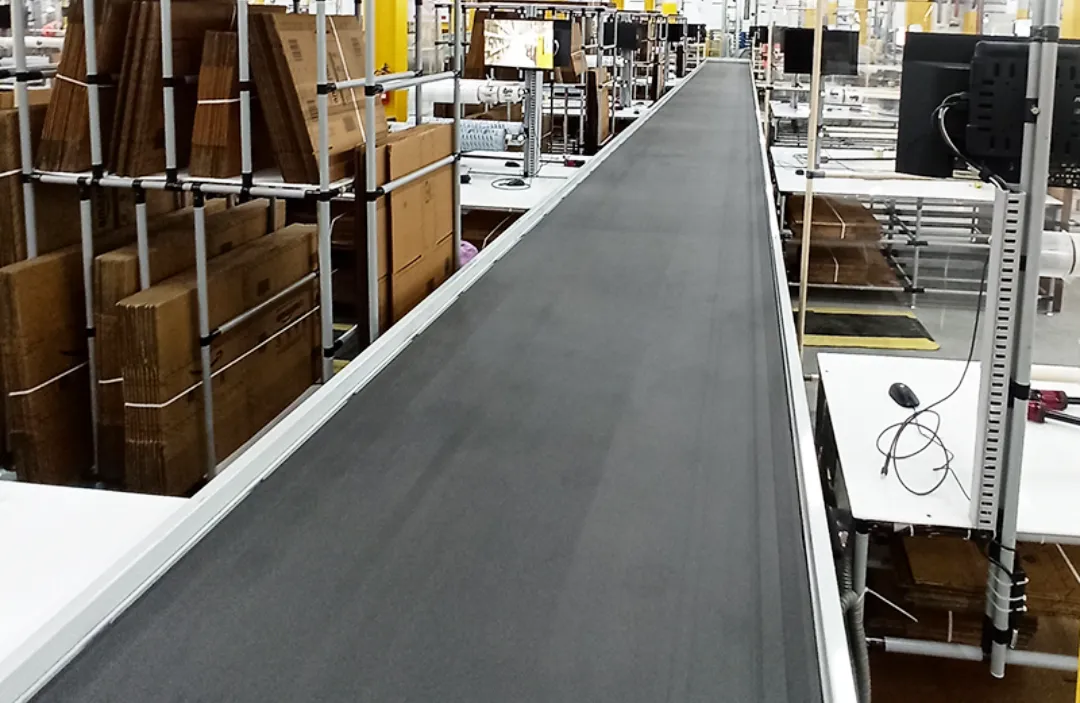

Robust conveyor system featuring CRC steel frame, adjustable legs, durable PVC belt, efficient AC drive with VFD, quiet belt transmission, integrated sensors, and comprehensive safety guards for reliable automated operations.
Made from high-quality CRC steel sheets, precision-cut for durability and ease of installation.
Adjustable height with slotted holes and grouting provisions for stability.

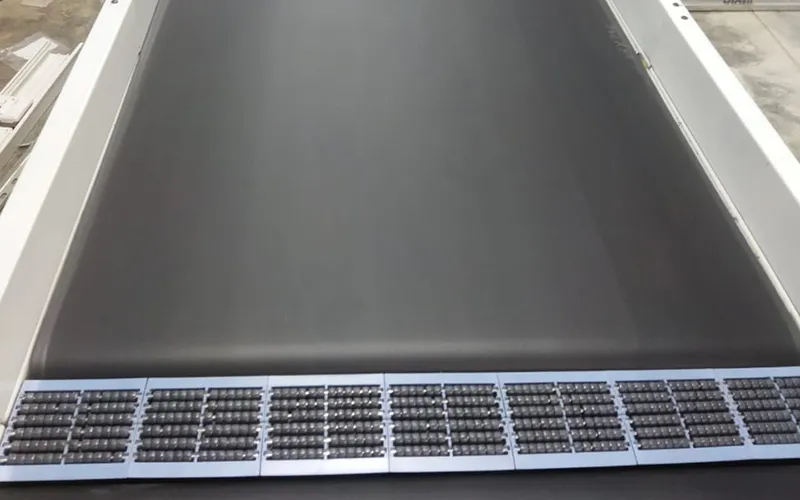

Resistant to wear, tear, and chemicals, ensuring long operational life.

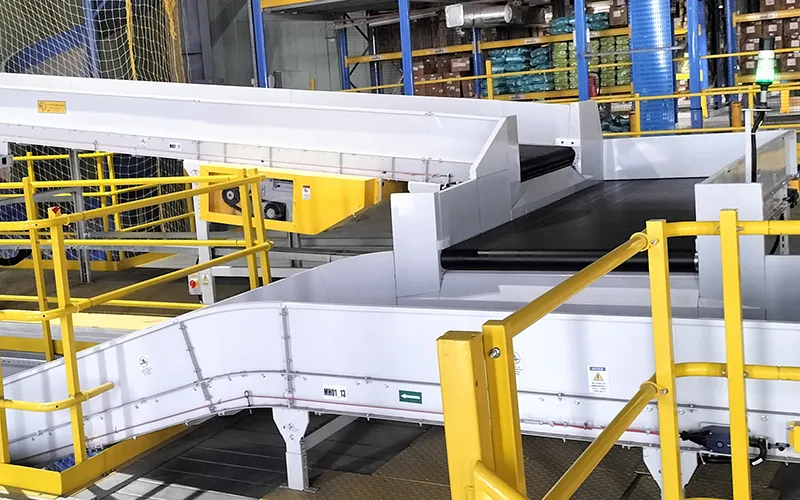

Consists of an AC geared motor with VFD control for efficient speed management.
Uses a belt drive system for quiet, energy-efficient operation.

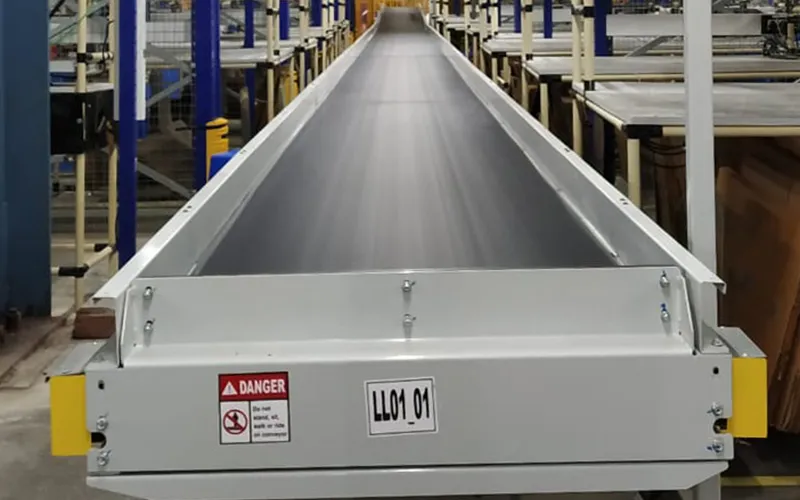

Includes photoelectric and proximity sensors for automated product handling and accumulation.

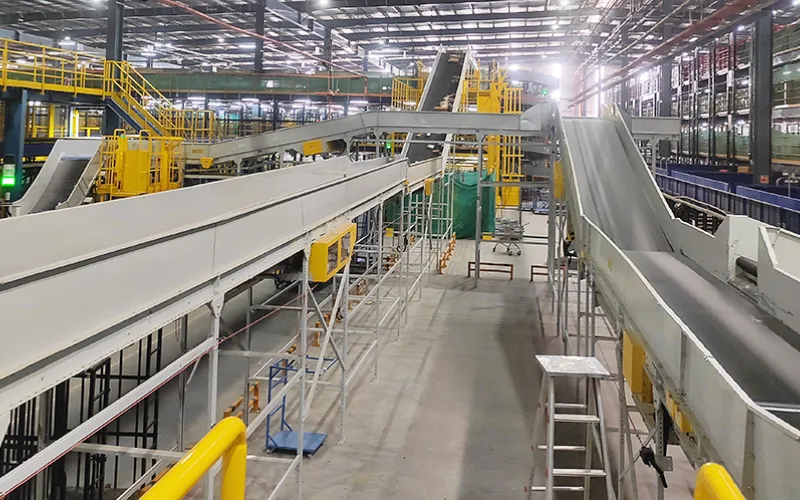

Ensures operator protection and regulatory compliance.

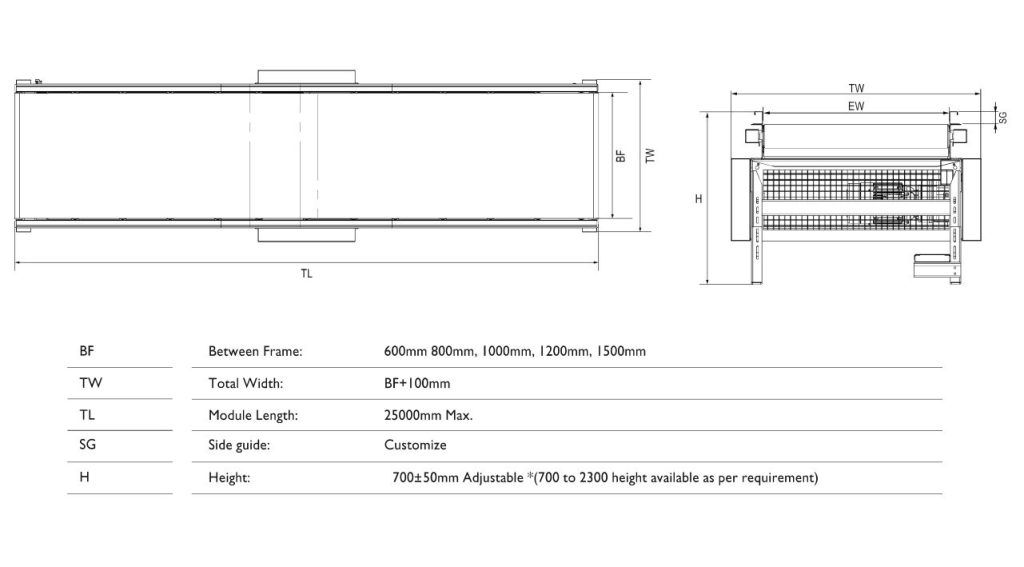

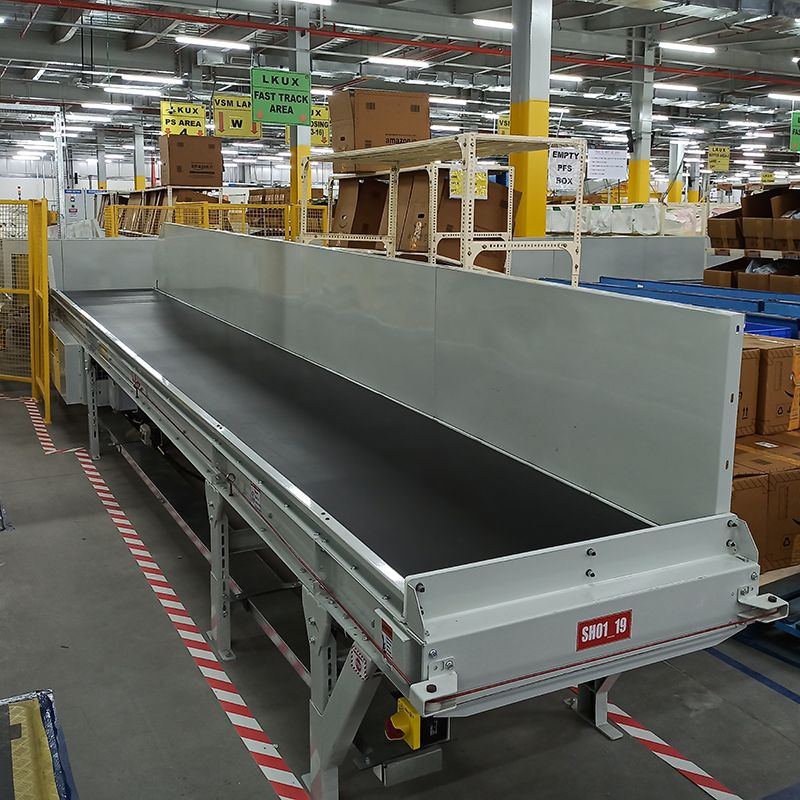

Modular PVC belt conveyor engineered for versatile material handling, offering adjustable dimensions, high load capacity, smooth speed control, advanced automation, low noise operation, and robust CRC steel construction for industrial environments.

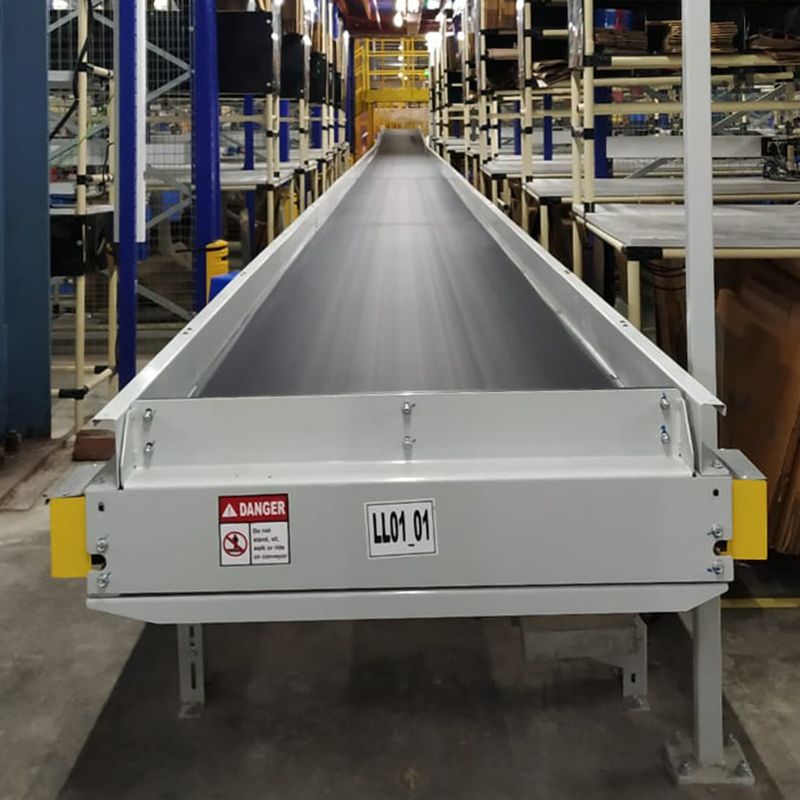

PVC Belt Conveyor
Conveyor Type
Modular
Conveyor Construction
Carton Boxes, Plastic Totes, Bags, Parcels, Lightweight Pallets, and Mostly Flat Bottom Items
Conveying Products
< 70 Dba (Excluding Environmental & Platform)
Running Noise
PVC Belt Polyvinyl Chloride (PVC)
Belt Material
2 mm to 5 mm
Belt Thickness
500 mm to 1500 mm (customizable)
Belt Width
1Mtr ~ 25 Mtr ( Extra Length avalible on Request )
Conveyor Length
300 mm to 2400 mm
Conveyor Height
up to 150 kg/ Mtr
Conveying Capacity
30 ~ 90 Mtr /Min
Conveyor Speed
0° ~ 30°
Inclination Angle
AC Geared Motor
Conveyor Drive
Stainless Steel, Aluminium, or U-Channel
Side Guide
50 mm, 150 mm, 300 mm , 600 mm
Side Guide Height
By PLC
Sequence Control
By VFD
Speed Control
HMI
Man Machine Interface
Optional
SCADA / WCS
Photo Electric Sensors
Sensors
24 VDC
Rated Voltage
3 Phase (360 ~ 440 VAC)
Main Power Supply to Control Box
50 ~ 60 Hz
Rated Frequency
Profinet / Ethernet / Modbus
Communication Protocol
Profinet / Ethernet / Modbus
Real-Time Communication
(-)10°C to 50°C (humidity 10-95% non-condensing)
Ambient Temperature Range
Shot Blasted and Powder Coated
Painting
Gray RAL-7016, Orange Glossy HGS 2302, As per Choice
RAL Colour
CE, ISO 9001, OSHA, UL, and other industry-standard safety compliance
Certifications
CRC steel, CNC laser-cut C-profile with collar bends, slotted flanges, and precision mounting holes.
Conveyor Frame
CRC steel C-profile with height adjustment slots, alignment brackets, and grouting holes.
Conveyor Legs
Safety covers, photo sensors with brackets, cable tray, bottom cover, belt skirt guides, channel side covers.
Conveyor Accessories
Connect with our automation specialists to discover efficient, reliable, and cost-effective material handling and warehouse solutions tailored to your business needs.
