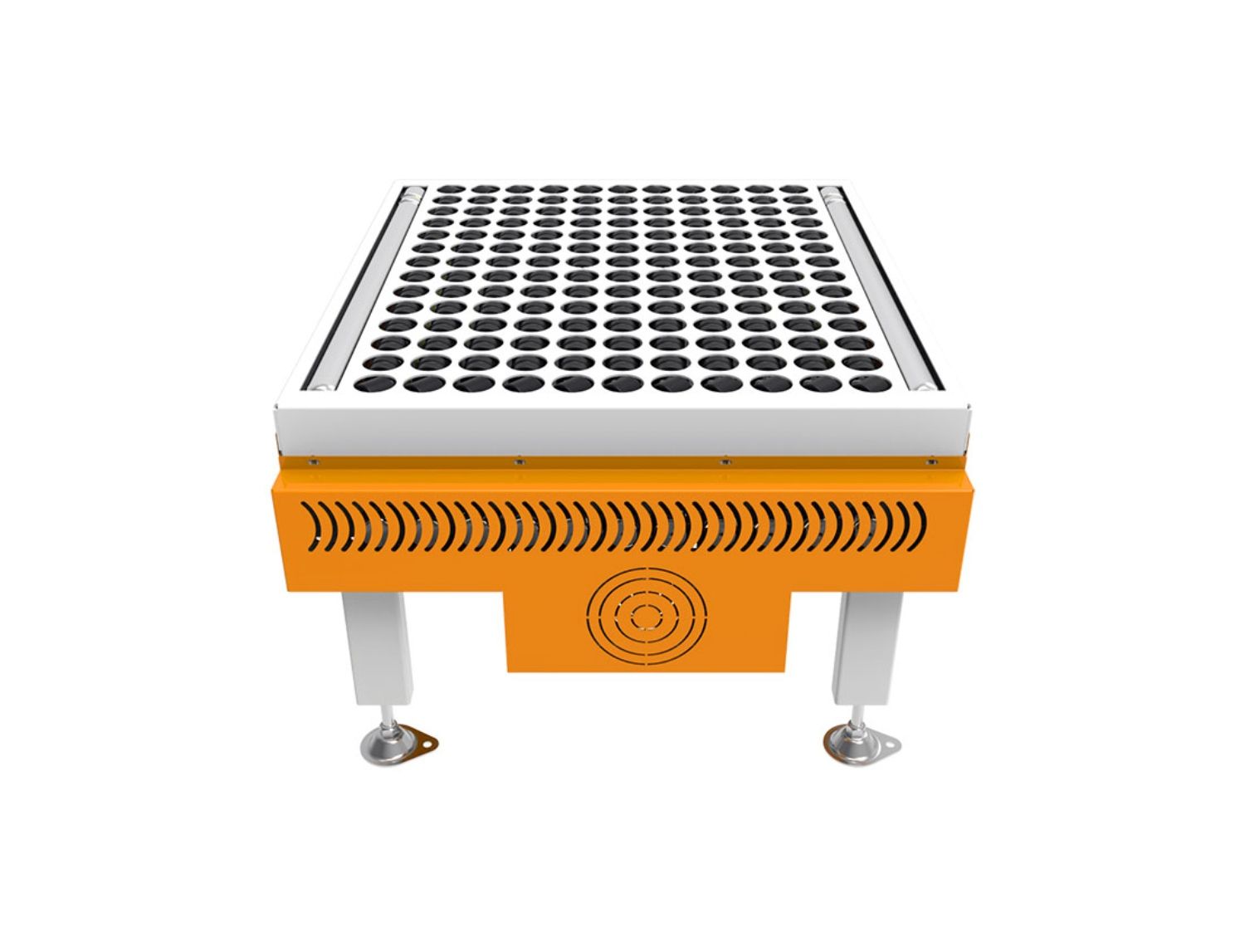

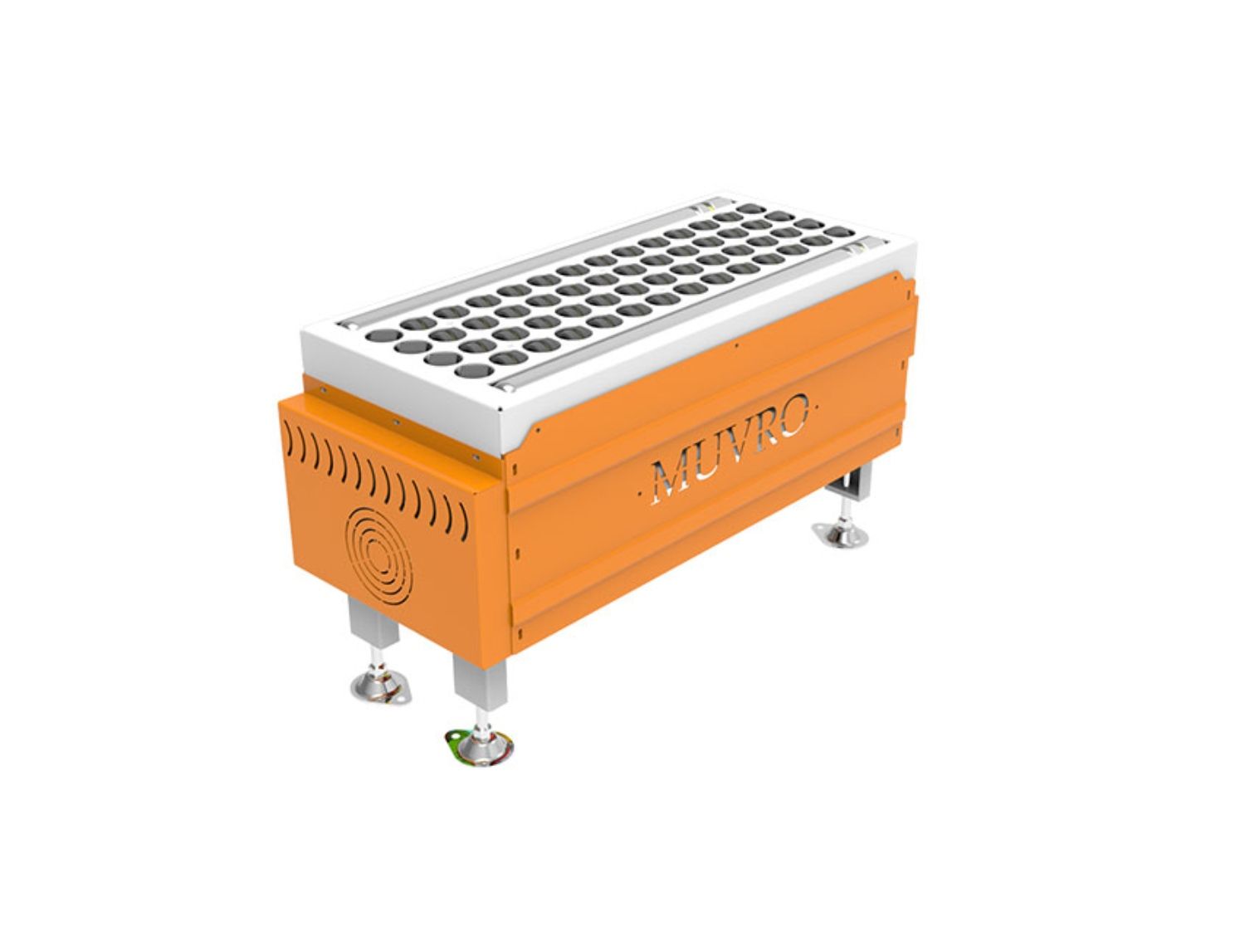

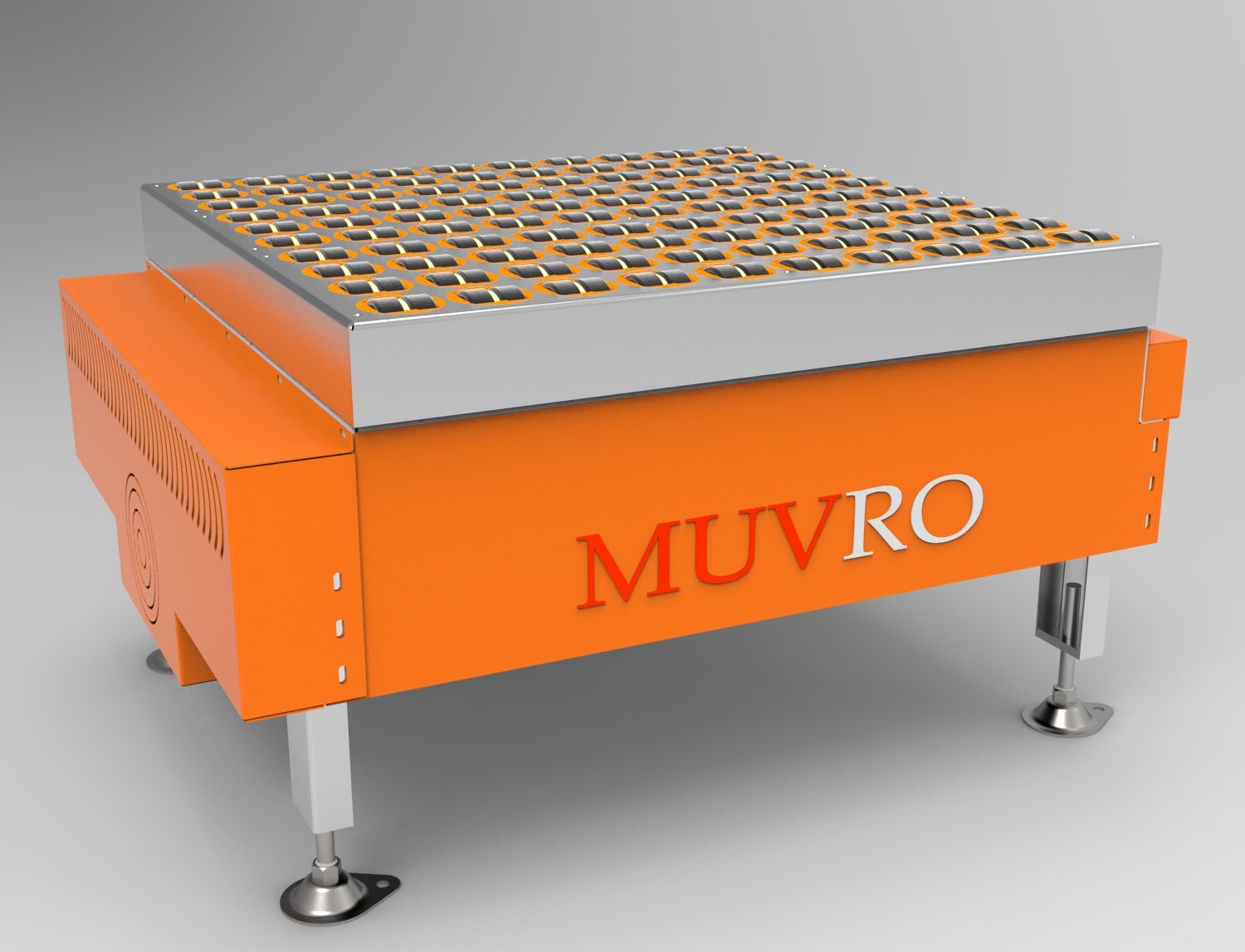

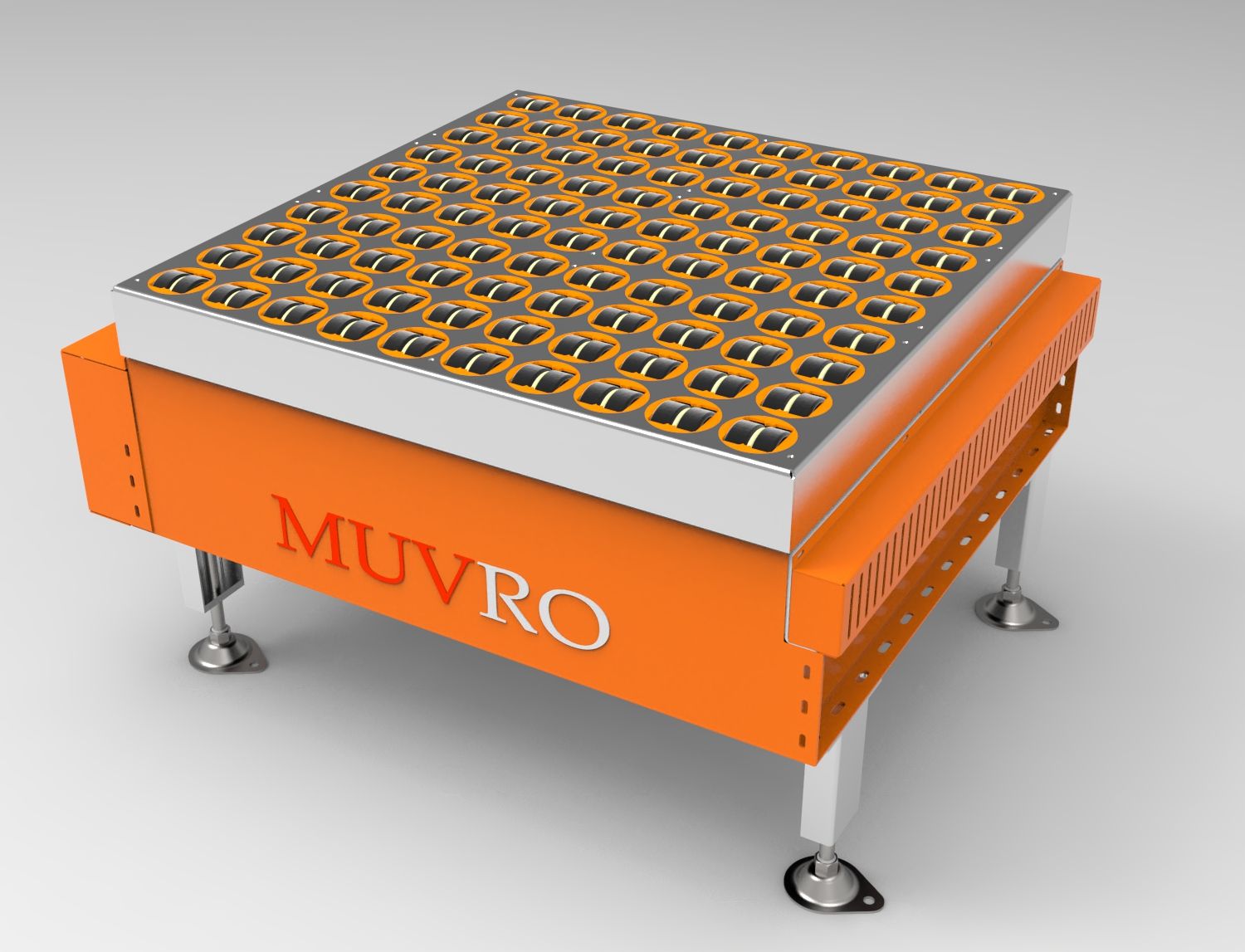

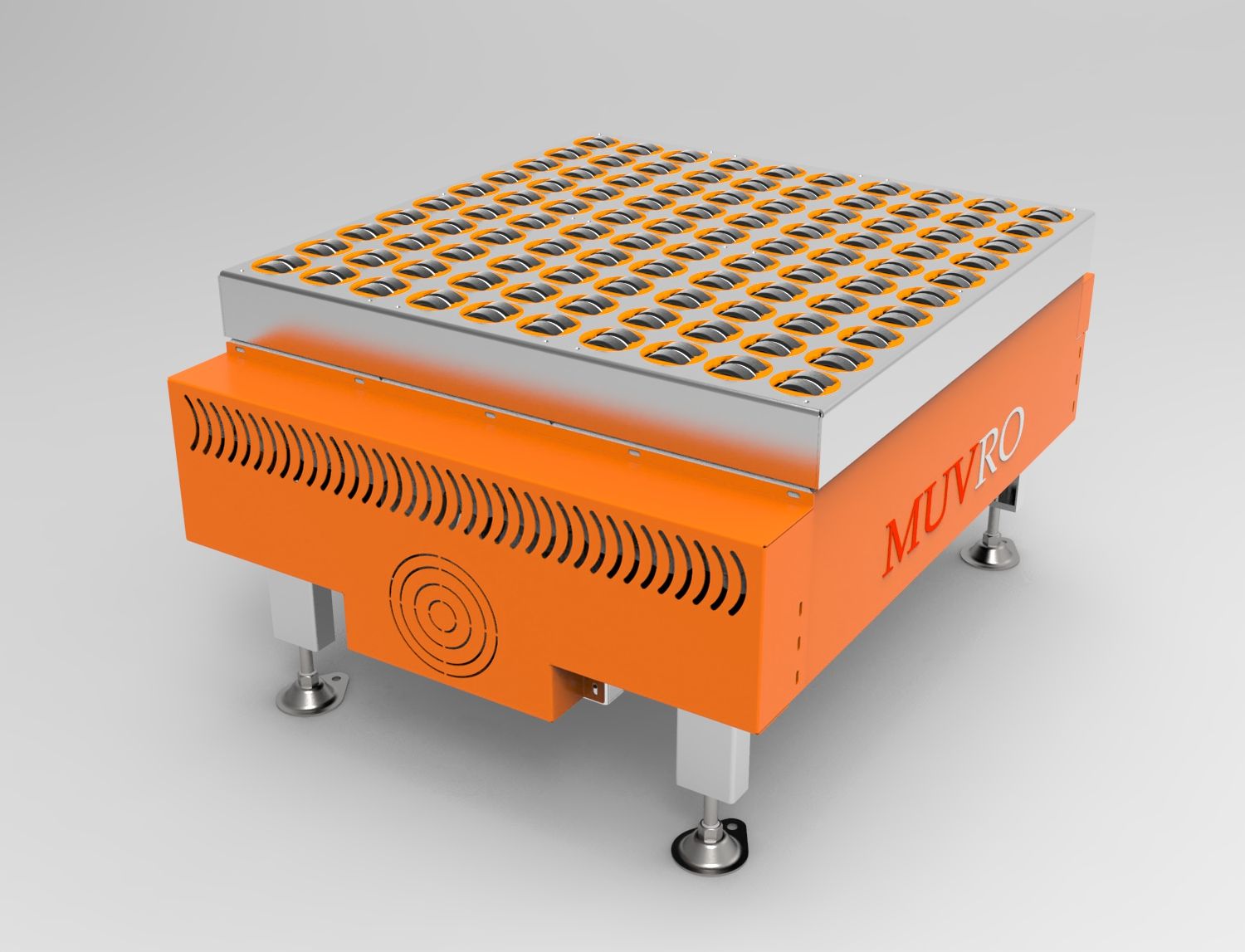

The Muvro Swing Wheel Sorter is a high speed, state of the art automatic sorter that increases the efficiency of movement and distribution of packages, parcels and goods in logistics and warehouse facilities. This system is designed to maximize sorting operations, offering fast, accurate and smooth handling of a variety of package sizes, making it an essential solution for industries that require high-performance sorting capabilities. This is imp...
Capable of handling thousands of items per hour.
Made to fit into existing conveyor layouts.
Can be easily expanded for increased sorting needs.

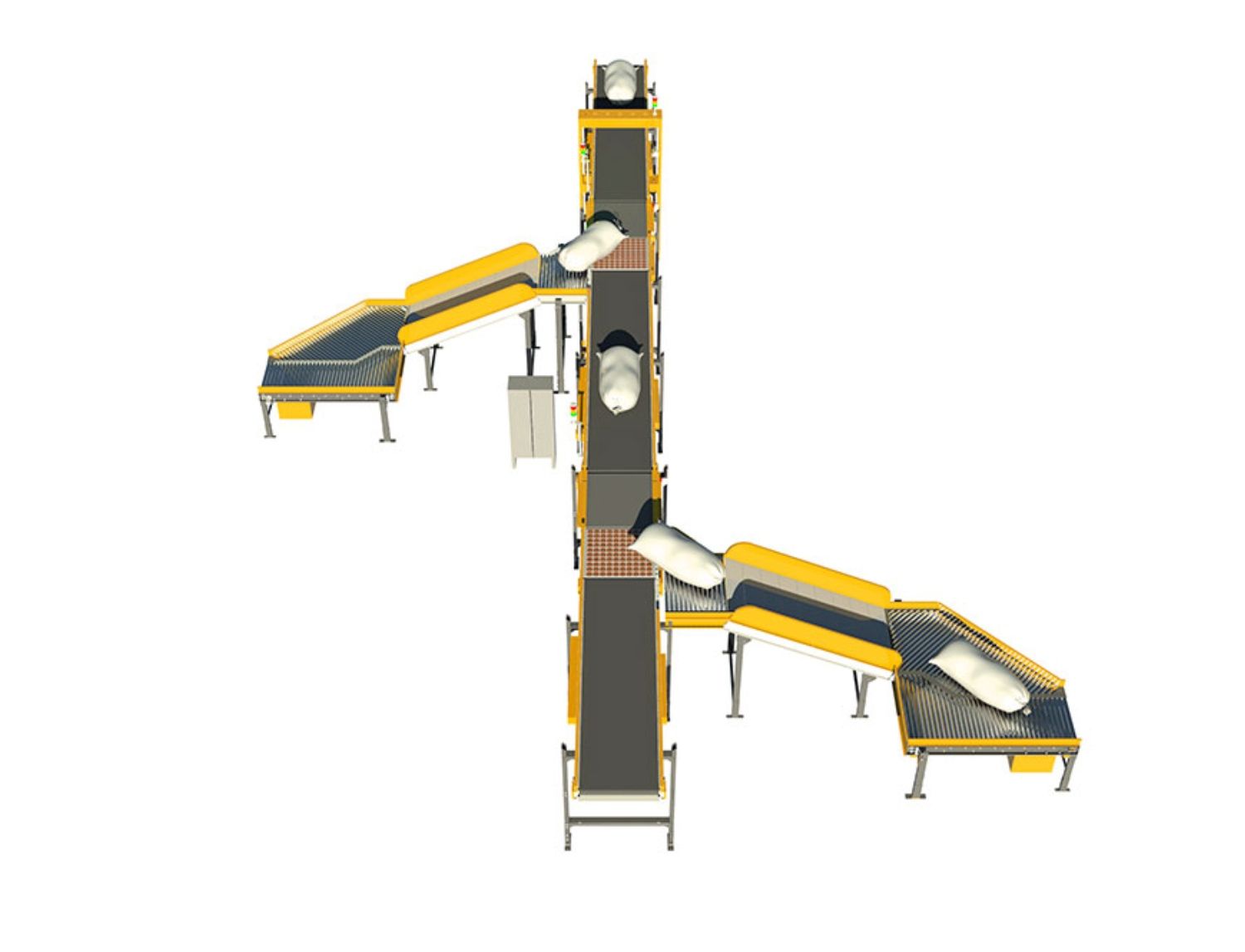

Redirects packages to the left, right or forward.
Minimizes impact. Excellent for fragile items.
Uses durable components to ensure long service life.
Explore the precision parts that drive our industry-leading sorting solution. This visual breakdown highlights the modular design elements that provide unmatched efficiency, eliability and adaptability for your operations.
Feeds parcels into the sorter at a smooth, controlled rate. The spacing (gaps) and alignment are checked before sorting. Matches sorter speed to keep flow consi...
Parcel diverting core sorting element with angled rotating wheels. Wheels are only turned on when sorting is needed for a specific destination. Ensures fast, ge...
Uses motors and gearboxes to operate conveyor belts and swing wheel rollers. Includes belts, chains, shafts and couplings to convey power. Designed for continuo...
Sorts as the sorter brain processing all inputs and decisions. Uses PLC logic to turn on swing wheel at the right time. Integrated HMI/SCADA for monitoring, con...
Reads barcode, QR code, or RFID data off parcels. Decides where to send it depending on a database or sorting logic. Accurate reading even at high speeds on the...
Gathers and directs sorted parcels to their proper places. Designed to minimise impact and prevent damage to parcels. Configurable for bins, bags, pallets or mo...
Detects the presence, position and displacement of parcels on the conveyor. Provides PLC real-time feedback for precise timing control. It consists of photoelec...

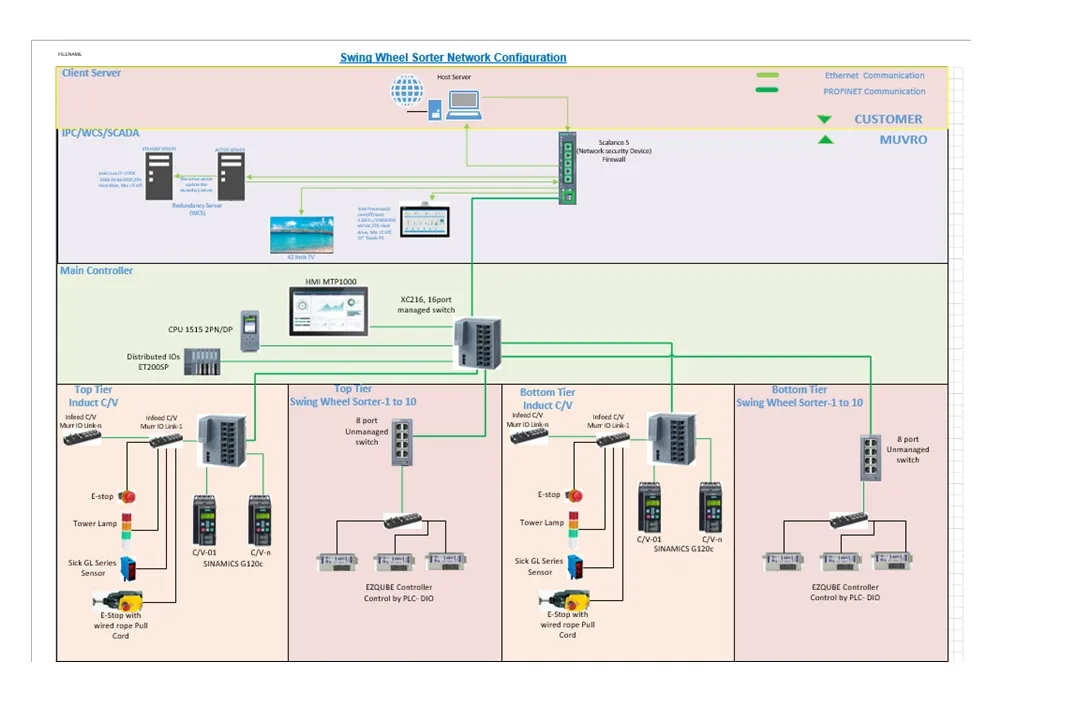

Facilitates data exchange between PLC, scanners, and central software. Uses industrial protocols such as Ethernet/IP, Profinet or Modbus. Provides reliable and ...
The Muvro Swing Wheel Sorter is a high technology swing wheel diversion system, which efficiently sorts and diverts parcels and packages at high speeds. The system is fully integrated with conveyor systems, with intelligent automation and real time control algorithms to ensure accurate sorting with minimum human intervention.
The Muvro Swing Wheel Sorter combines intelligent automation, real-time data processing and accurate swing wheel technology to facilitate smooth and flawless sorting. Its multi-directional capabilities, high-speed performance and integration with smart logistics systems make it a critical asset for e-commerce, retail, courier and warehouse fulfillment operations.
Sorting packages for fast order dispatch.
Automating parcel distribution for efficiency.
Handling bulk envelopes and packages.
Managing perishable and non-perishable sorting.

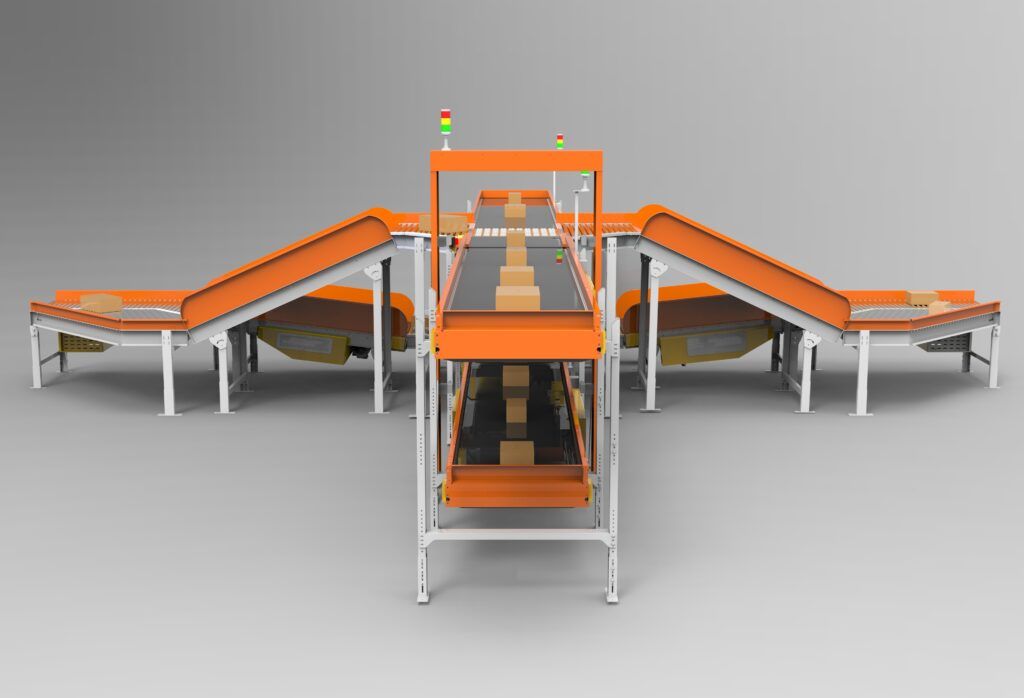

Future ready design for vertical deployment for dynamic operations and plug-and-play expandability, minimal ground footprint.
6000 ~ 6500 PPH
Sorting Capacity
Upto 150 mpm
Speed
99.90%
Sorting Accuracy
0.1 kg ~ 30 kg
Product Weight Range
150 × 50 × 10 mm (Min) - 700 × 550 × 500 mm (Max)
Product Size Range
Parcel | Shipment | Box
Sorted Item Types
2-way
Diverting Direction
30°, 45°, 60°, 90° (Bi-Directional)
Diverting Angles
60 mm
Wheel Roller Pitch
DC Servo Drive
Wheel Swing Mechanism
High-Strength Steel
Structure Material
Polyurethane or Rubber
Material of Wheel
Anti-corrosion
Coating
400~415V | 50/60Hz
Power Requirements
PLC-Based Control System with HMI Interface & Ethernet / Modbus Connectivity
Control System
Ethernet, Modbus or customized
Communication Protocols
≤ 80 dB
Noise Level
Indoor: -10°C to +45°C
Operating Temperature
30% to 90% (non-condensing)
Humidity
IP54 / IP55 Rated
Dust & Water Resistance
CE, ISO 9001, OSHA, UL, Safety Compliance
Certifications
