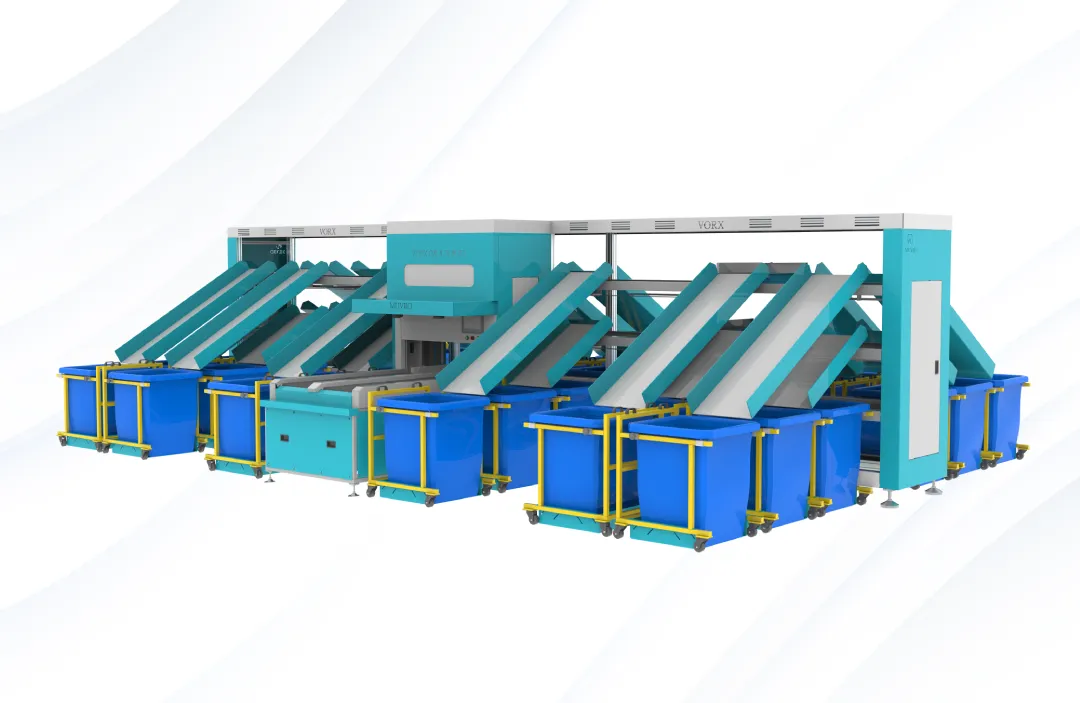

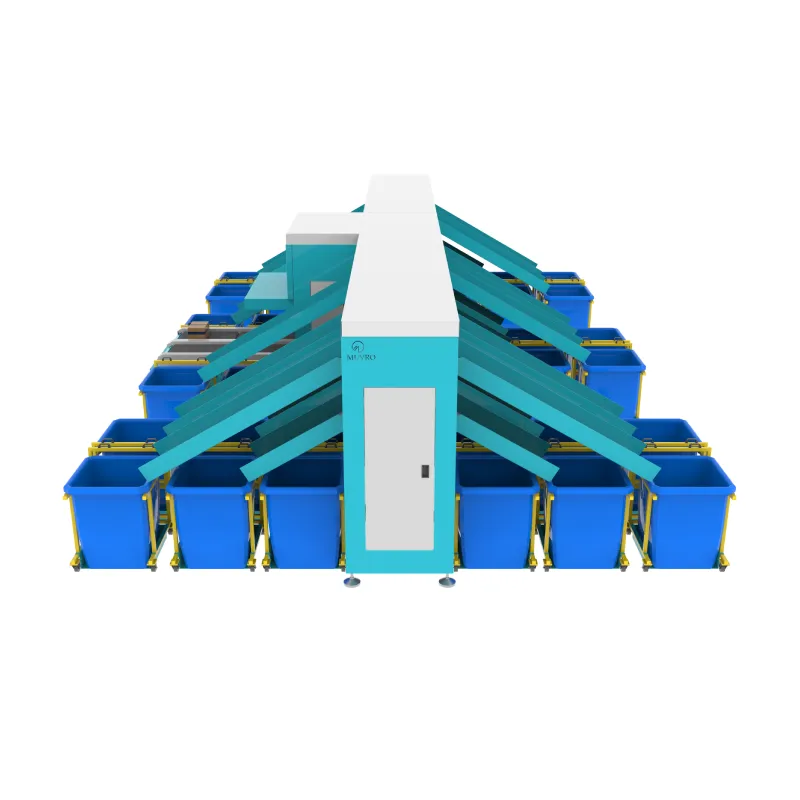

Revolutionary vertical sorting technology that maximizes throughput in limited space through intelligent multi—layer architecture, dual—bot operation, and parallel processing. The VOREX Multi—Layer Multi— Bot Secondary Sorting System deploys autonomous bots across multiple vertical levels, each equipped with an onboard controller and cross—belt carrier for precise chute discharge. Its dual—infeed configuration and synchronized dual lifts enable c...
Maximize destination count without expanding floor space ideal for confined warehouse zones
Two bots per layer enable continuous bi-directional sorting that reduces cycle time significantly
Left and right vertical transport systems eliminate bottlenecks and maintain constant parcel flow
Advanced logic ensures safe bot movement and seamless traffic coordination across all layers
Handles diverse items from small packets to full size cartons accommodating modern fulfillment variety
Add aisles, layers, or chute banks as demand grows without replacing existing infrastructure
High SKU diversity and complex zone routing for direct to consumer operation
Density vertical sorting for last mile distribution networks with Space constraints
Compact back of-house facilities and multi floor operations requiring store level sortation
Rapid returns classification, Old routing with parallel multi layer operation
Reduces floor space requirements by leveraging vertical architecture
Dual bot parallel processing delivers superior sorting capacity per square meter
Automated sorting minimizes manual handling and staffing requirements
Modular design adapts to growing operational demands without major overhaul
System Uptime
Scan Accuracy
Parcels Per Hour
Multi-tier automated sorting system with scalable bots, high-speed motion, dual infeed capacity, flexible layouts, and precise parcel handling up to 10 kg for efficient, high-throughput operations.
Configurable (multi-tier)
Layers
2 (Opposite Directions)
Bots per Layer
Scalable
Total Bots
8 Aisles x 4 Layers x 2 side = 64 Exit/Chutes
Typical Layout
1500 To 3000 PPH
Dual Infeed Capacity
90 m/min
Lift Speed (Z—Axis)
90 m/min
Bot Speed (Y-Axis)
60 m/min
Cross-Belt Speed (X-Axis)
Custom (typ. 10 m)
Track Length
100x50x5 mm to 600x400x400 mm
Parcel Size
Up to 10 kg
Parcel Weight
