Muvro’s next generation Linear Cross-Belt Sorter, ZedSort™, is built for today’s high-throughput logistics and distribution environments. If you’re in e-commerce, postal, retail DC or pharma warehousing, ZedSort has the speed, reliability and flexibility you need to meet today’s dynamic parcel handling demands.

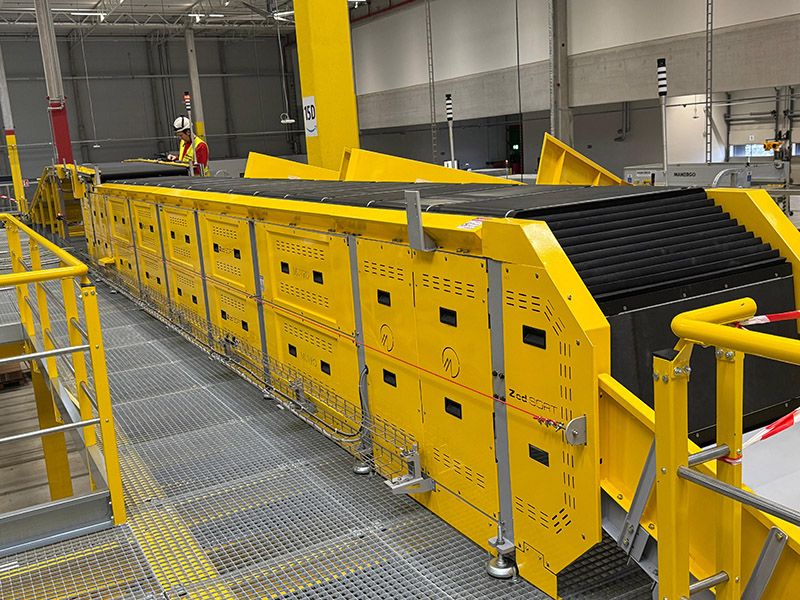

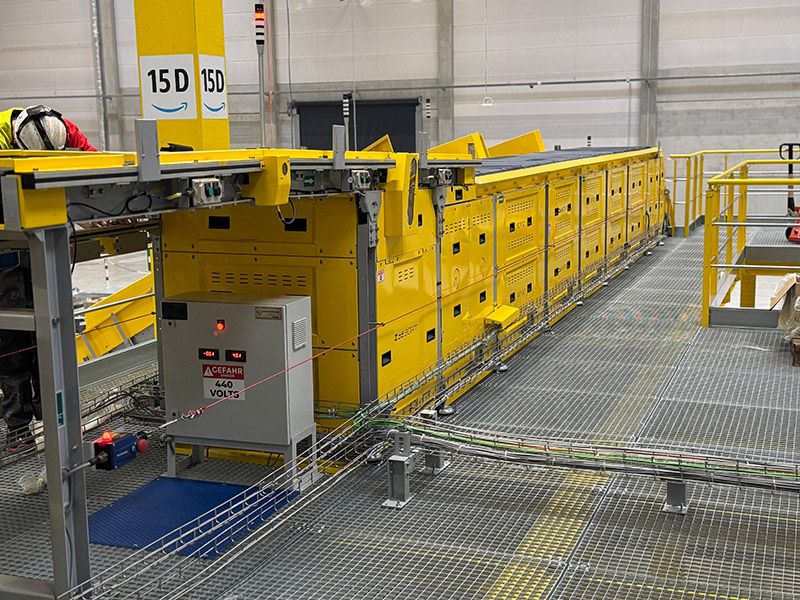

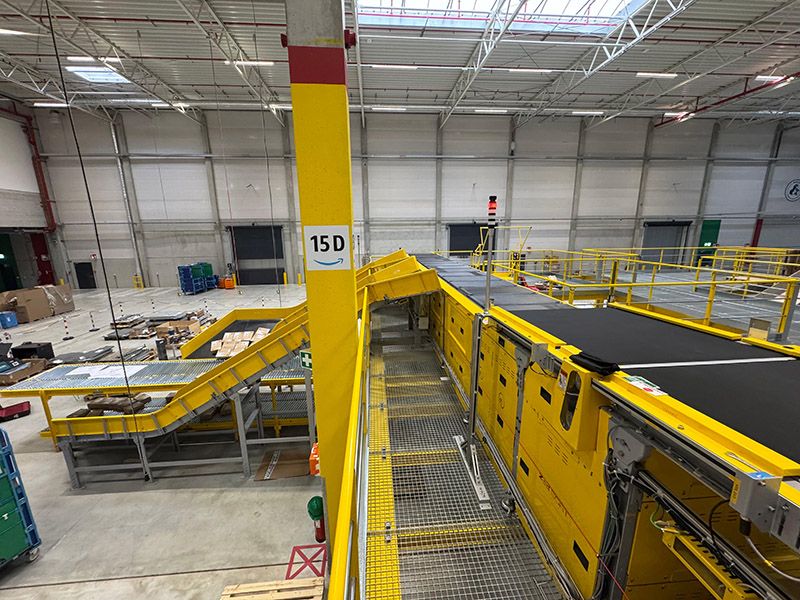

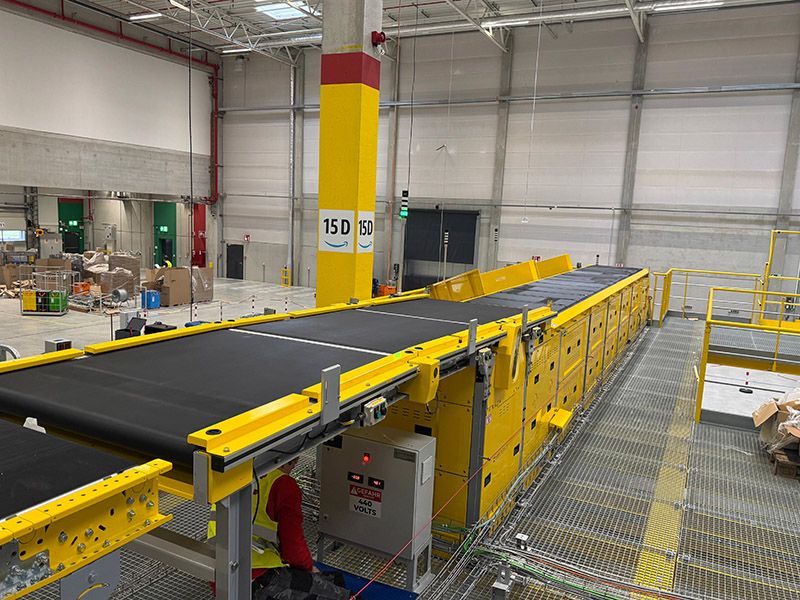

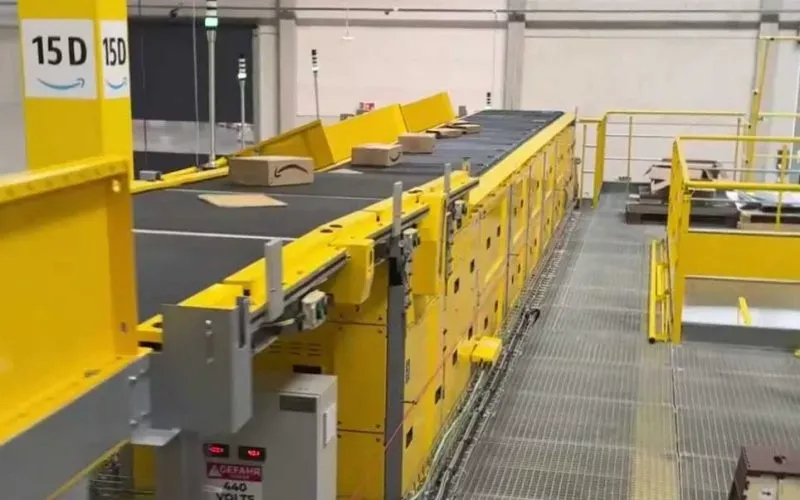

A Linear Cross-Belt Sorter employs a linear track system with autonomous motorized carts running in a continuous loop. Each cart is fitted with a bi-directional cross-belt conveyor that can discharge parcels to the left or right, making it ideal for accurate and fast sorting into chutes, bins or conveyors.
30-40 kg per cart depending on configuration
Up to 2.6 m/s
Discover the ZedSort™ Linear Cross Belt Sorter comprehensive technical features, built for high speed parcel handling, perfect automation and excellent sorting accuracy in all sorts of logistics activities.
ZS1010-L11-V00
Model
Muvro (India)
Brand
15–75 meters
Track Length
1200–2400 mm
Loop Height
6,000 -7,000 parcels/hour
Throughput
1~1.7 m/s
Loop Speed
>99.5%
Sorting Accurac
<72 dB
Noise Level
Linear Synchronous / AC Geared
Motor Type
Rubber Block Chain
Drive
380~460V AC, 3-Phase
Power Supply
30 kg
Max Load (per carrier)
150×100×10 mm – 1500×800×500 mm
Parcel Size Range
516 mm & 387 mm
Carrier Pitch
425 mm & 320 mm
Belt Widths
Siemens , Allen Bradley , Beckhoff
PLC
Profinet, EtherCAT, Ethernet/IP
Protocols
SCADA / WCS ready
Integration
Real-time encoder feedback
Control Type
-10°C to +40°C
Operating Temp
10-95% RH (non-condensing)
Humidity
IP54 (upgradeable)
IP Rating
15 ~ 75m segments(Modular expansion)
Expansion
