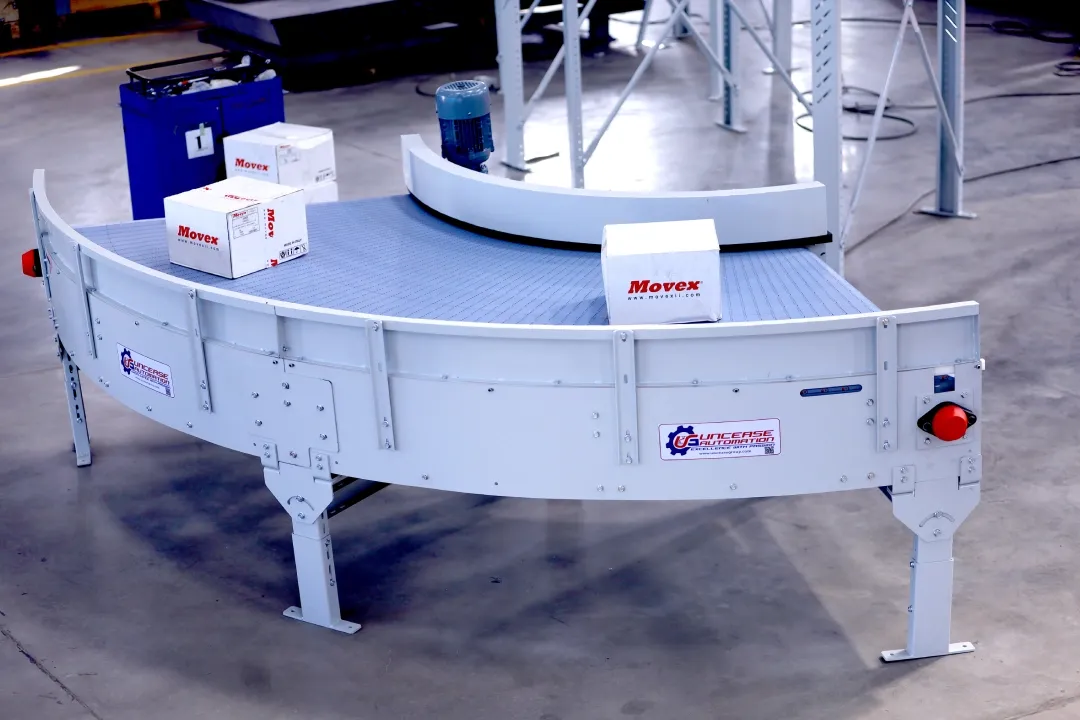

Muvro’s Zero Tangent Radius Conveyor (ZTR) provides a space optimised solution for facilities that need uninterrupted product flow through tight corners. Mainly Used where sharp turn required. This type of belt does not Requires tangent straight before/after curve. By combining a modular plastic belt platform with a true zero tangent curve geometry, the conveyor can pivot products through angles from 30 ° to 180 ° without any straight lead in or ...
True zero tangent geometry enables instant directional change (30 °–180 °) without intermediate straight segments.
Inner radii as small as 600 mm maximise usable floor area, ideal for dense production or warehouse zones.
Zero Contact 520 belt (Movex Modutech) in PP or POM provides high strength, low friction, FDA option materials, and tool less link replacement—leveraging the same quick maintenance philosophy as Muvro’s straight modular belt lines.
Custom height guides and hold downs maintain load stability through high g turns.

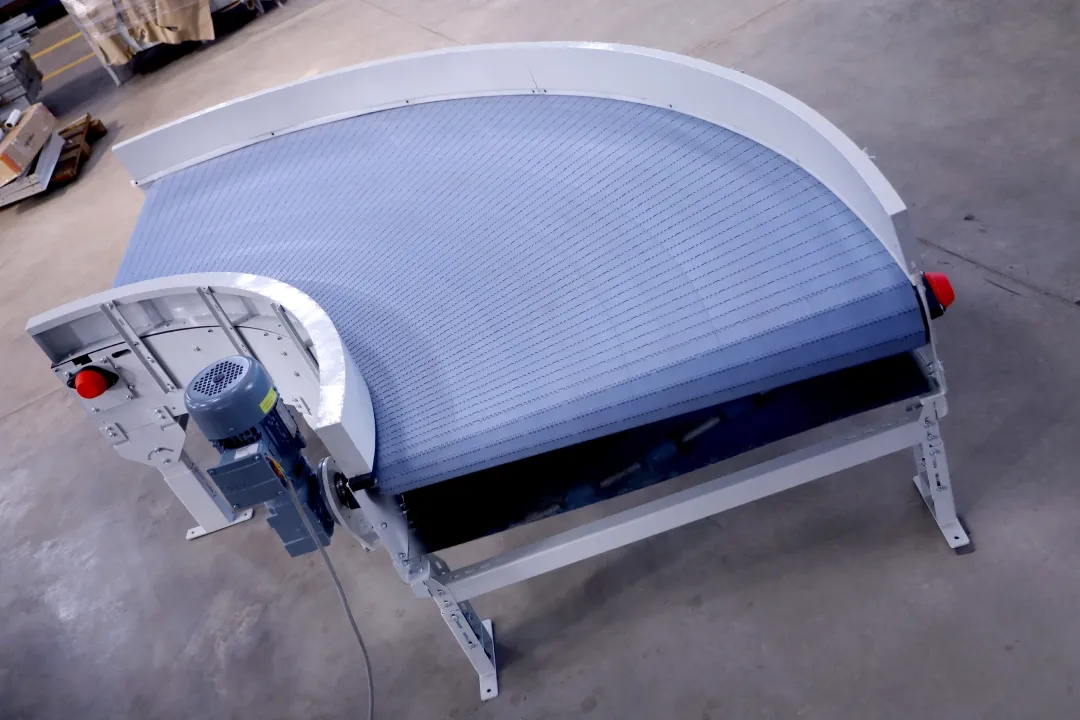

SEW KA F helical bevel IE3 motors paired with VFDs deliver smooth acceleration, precise speed control (10–75 m min), and reduced power draw.
UHMW “BlueLUB” wear strips and noise damping rollers cut sound levels and extend belt life—a proven benefit from Muvro’s modular belt portfolio.

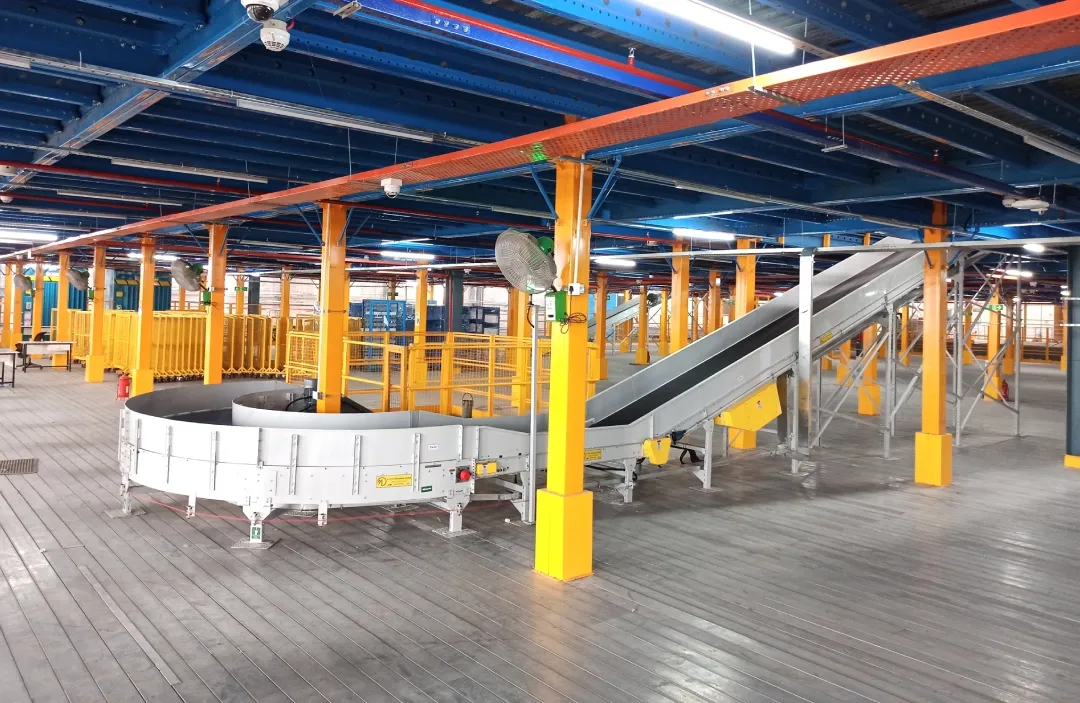

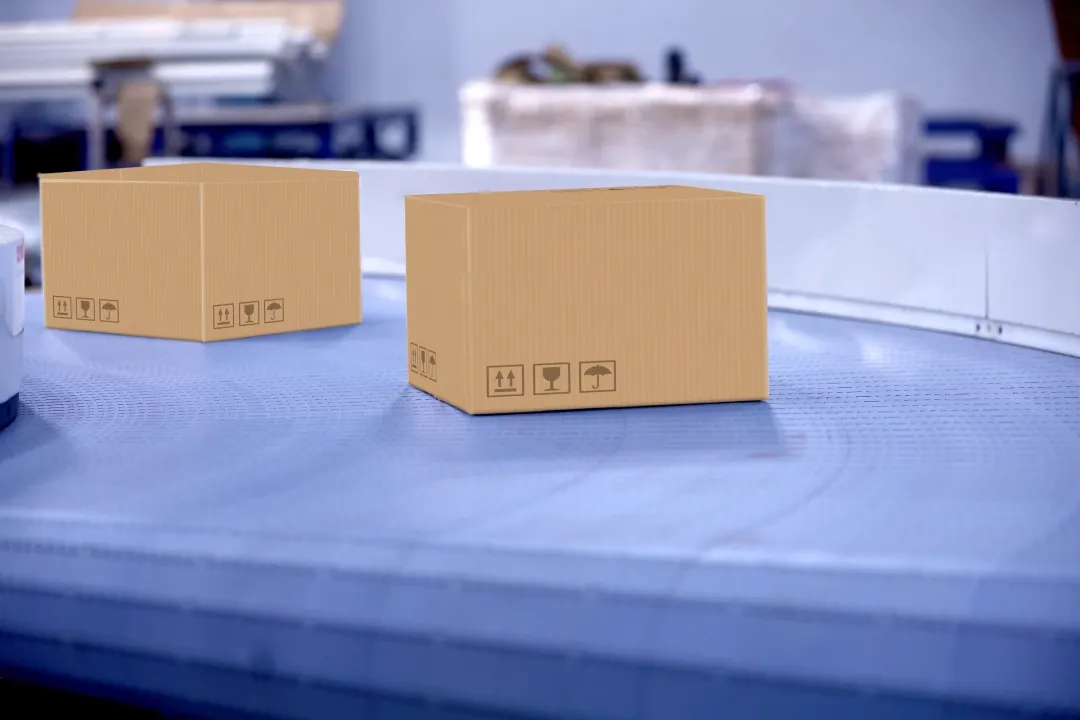

By removing the need for traditional straight sections before and after a curve, the ZTR frees floor space that can be redeployed for production equipment or operator access. Continuous flow through the curve keeps line speed consistent and eliminates bottlenecks, while selectable angles and belt widths allow engineers to tailor the conveyor to virtually any footprint. The smooth plastic belt surface and closed loop speed control protect fragile or high value goods, and maintenance costs remain low thanks to clip in belt modules, sealed bearings, and self lubricated wear strips that reduce both downtime and spare parts inventory.
It threads automotive sub assemblies, PCB panels, or appliance parts through dense production cells.
To guide packaged snacks, bakery trays, or ready meal cartons around tight corners in hygienic rooms.
Producers rely on its GMP compliant construction for blister packs, vials, and cartons.

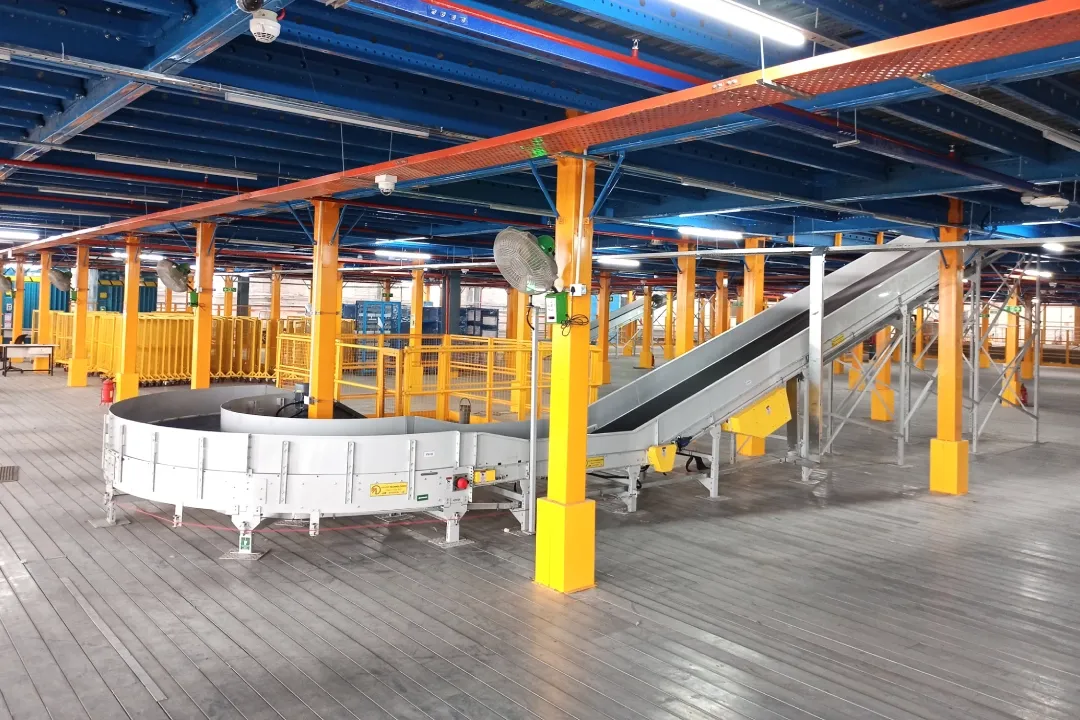

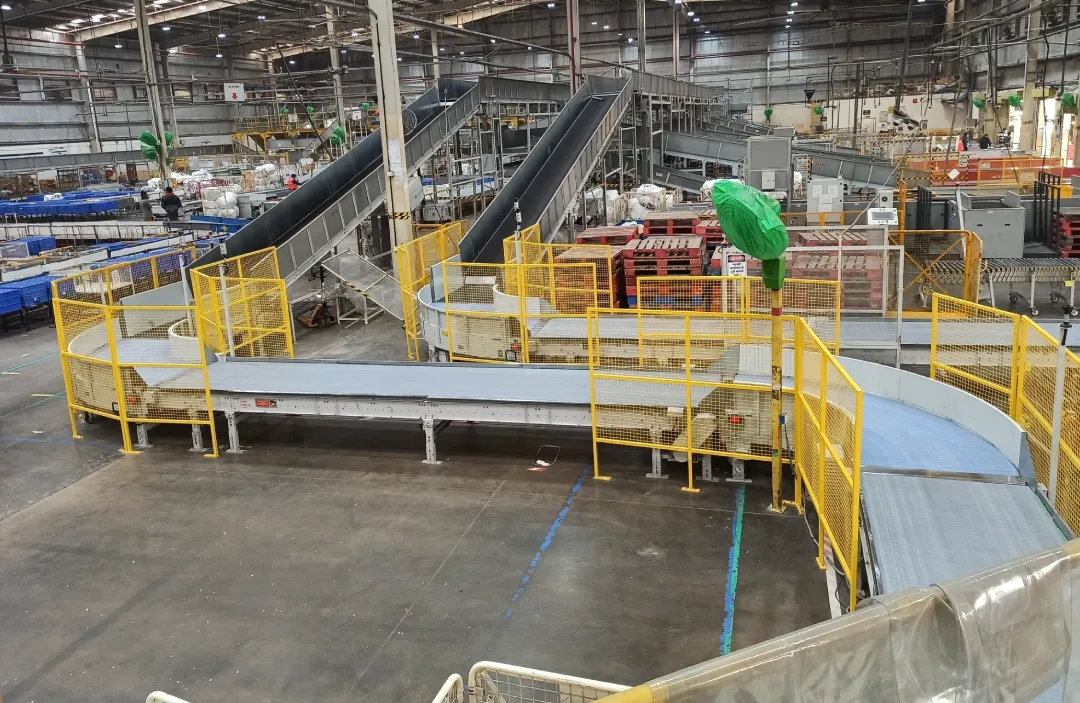

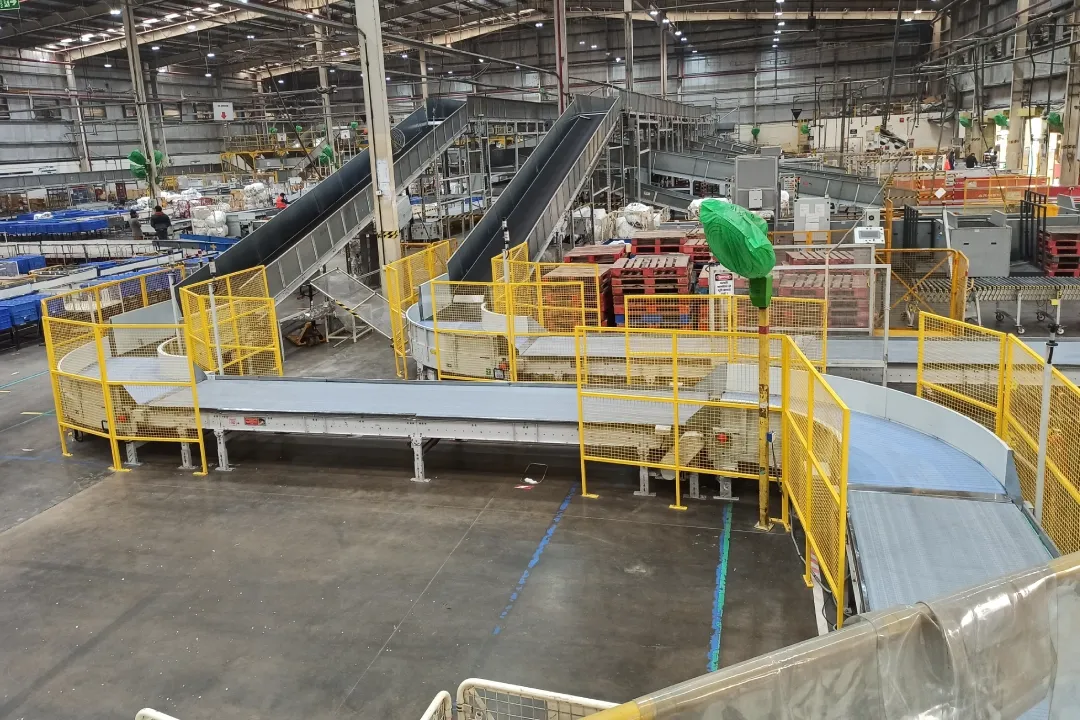

Centres integrate ZTR loops into pick modules and mezzanine transfers.
Even airport baggage systems deploy the conveyor in baggage make up zones
Engineered for compact layouts, zero-contact smooth transfers, adjustable speed control, high load handling, and reliable performance in automated intralogistics and industrial material handling systems.
Modular
Conveyor Construction
Uni-direction and By-direction
Conveyor Running Directions
Zero contact Plastic modular belt
Belt Type
PP (Poly-propylene), POM (Poly-acetyl)
Material
25.4 mm to 50.8 mm
Belt Pitch
10.1 mm
Thickness
Dia. 40 mm & Length 1360 mm
Roller Tube Dia & Length

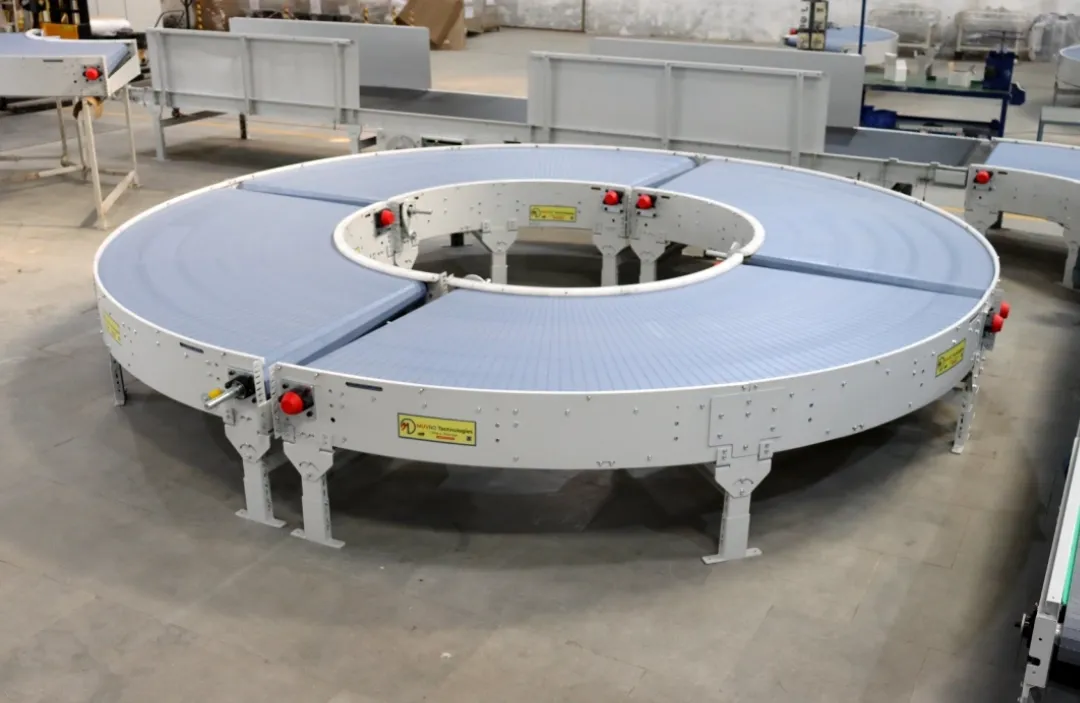

30°, 45°, 60°, 90°, 135°, 180°
Curve Angle
600 mm, 800 mm, 1000 mm, 1200 mm, 1500 mm
Conveyor Width
600 mm to 4000 mm ± 50 mm
Conveyor Height
50 mm to 600 mm
Side Guide Height
25 to 125 Kg/mtr
Conveying Loading Capacity
10 mtr/min. to 75 mtr/min.
Conveyor Speed
< 70 dBa
Running Noise
PP 100°C, POM: -40°C to 90°C, PE: -50°C to 65°C
Operating Temperature Range
Power Rollers / AC Geared Motor / Servo Motors
Conveyor Drive
3 Phase (360 ~ 440 VAC) 50 ~ 60 Hz, 24 VDC
Rated Frequency
20 mm-thickness
UHMW Sheet (blue lub)
High-quality CRC steel sheet
Conveyor Frame & Legs
Shot Blasted and Powder Coated
Painting
Gray RAL-7016, Orange Glossy HGS 2302
RAL Colour
Safety Covers, Photo Sensors, Cable Tray, Channels Side Covers
Conveyor Accessories
Emergency stop, side covers, safety guards, overload protection
Safety Features
CE, ISO 9001, OSHA, UL
Compliance Standards
